Home >> Products>Products by Category>Microplate Equipment>Microplate Washer>Microplate Washers IMW-1000

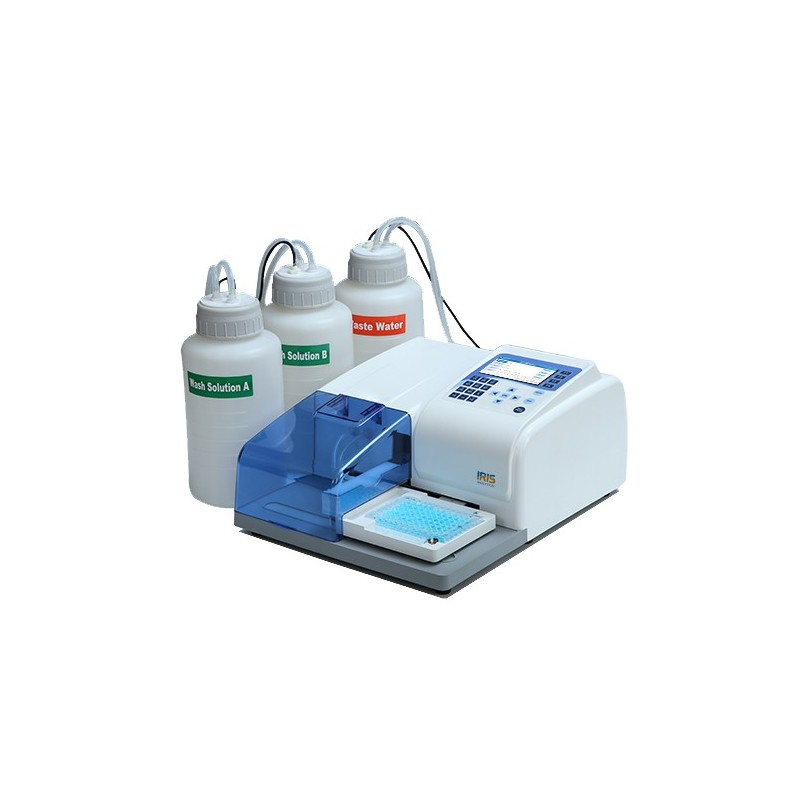

Microplate Washers IMW-1000 is known for their reliability and versatility. Equipped with liquid position sensor to evade discarded liquid from overflow, reduce threat and avoid liquid that drawn into the pump to break the equipment. The IMW-1000comes with different microplate well profile: F-well plate for superb optical properties and are thus...
Microplate Washers IMW-1000 is known for their reliability and versatility. Equipped with liquid position sensor to evade discarded liquid from overflow, reduce threat and avoid liquid that drawn into the pump to break the equipment. The IMW-1000comes with different microplate well profile: F-well plate for superb optical properties and are thus this plate is used for optical measurement, and well suited with microplate reader and washer; V-well plates are used for the application where the total sample volume pipetted out; C-well plates are flat type, used to combine optical properties of F-plate with rounded well bottom ends to facilitate liquid to flown out easily; and U-well plates are used to eliminate liquid without disruption and can be used to transfer the data among the PC and the washer or among two washers, similarly it used to upgrade the software. Additionally up to different liquid lines can be used allowing flexible configurations including 3 washer of 2.5L washing bottle and 1 pcs 2.5L waste bottle different wash solutions.
Accessories
|
Model |
IMW-1000 |
|
|
Display |
4.3 inch LCD display |
|
|
Washing channels |
3 |
|
|
Washing method |
Central, 2 and multi points |
|
|
Washing volume |
50 to 2000 μl |
|
|
Washing heads |
1×8 or 1×12 heads |
|
|
Residual Volume |
≤0.5 μl |
|
|
Plate types |
F, U, V, C flat bottom |
|
|
Bottle |
3 pcs 2.5L washing bottle, 1pcs 2.5L waste bottle |
|
|
Dispense accuracy |
CV≤2.0% at 300 μl (CV≤1.5% for 96 wells) |
|
|
Number of wash protocols |
100 |
|
|
Interface |
USB |
|
|
Dimensions |
345×460×200 mm |
|
|
Weight |
11.5 kg |
|
|
Electrical Requirement |
AC100, 50Hz |
AC240V, 60Hz |
|
Catalogue No. |
420600501 |
420601001 |
* Required fields
| Catalogue No. | Image | Product Detail | Availability | Price (Excludes VAT) |
|
|---|---|---|---|---|---|
| 420600501 |
Microplate Washers IMW-1000(100/50Hz) Microplate Washers IMW-1000is known for their reliability and versatility. Equipped with liquid position sensor to evade discarded liquid from... |
3-4 Weeks |
$3,800.00 |
||
| 420600502 |
Microplate Washers IMW-1000(240/60Hz) Microplate Washers IMW-1000is known for their reliability and versatility. Equipped with liquid position sensor to evade discarded liquid from... |
3-4 Weeks |
$3,800.00 |
