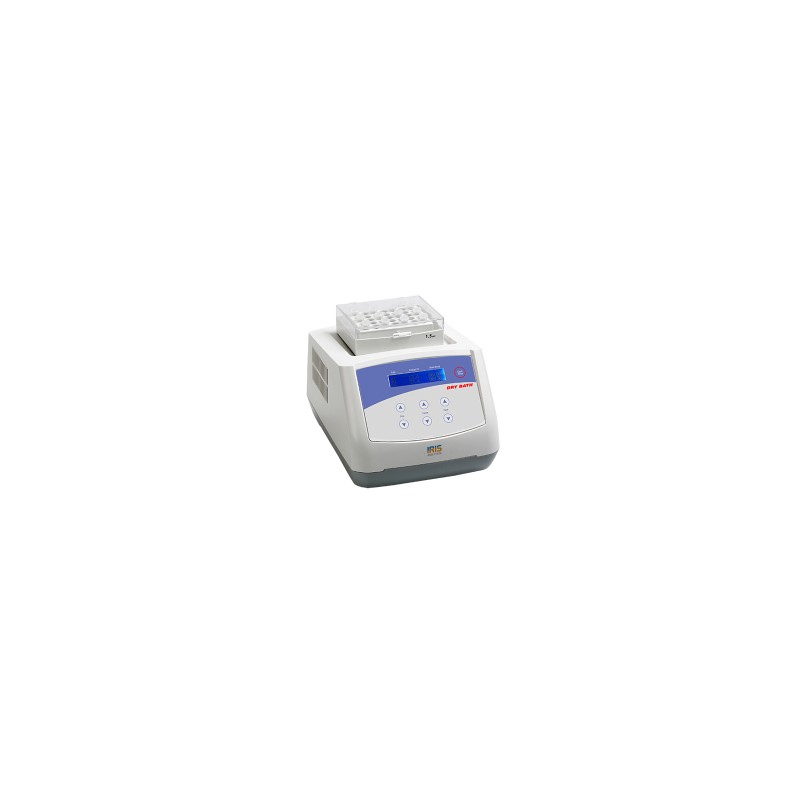

Portable Digital Dry Bath DBI-200(110V/60Hz)

View larger
Portable Digital Dry Bath DBI-200(110V/60Hz)

Catalogue number : 1601005-01

This CE-certified portable metal blocks dry bath incubator featuring a Peltier and Heater design that provides efficient thermal control to sample and temperature can be selected independently with maximum heating and cooling time around 10 to 15 minutes.

$550.00 tax excl.


Availability : 3-4 Weeks

Availability : Availability : 3-4 Weeks

Add to Quote

Add to wishlist

  • Product Information
  • Features
  • Technical Data
  • Downloads

This CE-certified portable metal blocks dry bath incubator featuring a Peltier and Heater design that provides efficient thermal control to sample and temperature can be selected independently with maximum heating and cooling time around 10 to 15 minutes.

Available with Conical tubes, Falcon tubes, Eppendorf tubes, tubes, Bath Block, Microplate, and 96-Deep well plate with bearing highest temperature up to 100°C and lowest temperature up to -10°C. Access with 2 configurations with a maximum capacity of up to 8 blocks. The blocks lids protect the samples over evaporation and condensation. Microprocessor with the innovative thermoelectric technique with at a temperature range from 5 to 100°C and -10 to 100°C which can be set with an accuracy of ±0.5°C.

Accessories

Highest Temperature

Lowest Temperature

96x0.2ml

100°C

-10°C

54x0.5ml

100°C

-10°C

35x1.5ml

100°C

-10°C

35x2.0ml

100°C

-10°C

15x0.5ml+20x1.5ml

100°C

-10°C

24xDiameter≤Φ12mm tubes

100°C

0°C

12x15ml Falcon

100°C

0°C

6x50ml Falcon

100°C

0°C

103x67x30mm Bath Block

100°C

0°C

96x0.2ml Microplate

100°C

0°C

24x5ml tubes

100°C

0°C

96-Deep well plate

80°C

8°C

15x5ml Eppendorf tubes

100°C

0°C

  • Build with LCD display for convenient and easy set up
  • Real-time display for set and actual time, temperature
  • Meet Temperature deflection adjusting
  • Equipped with replaceable metal blocks and provide simple cleaning and sterilization
  • Microprocessor controlled incubation time and temperature
  • With Beep-signal/Stop after program completed
  • Offer Peltier design for effective thermal control

Model

DBI-200

DBII-200R

Temperature Range

RT+5°C to 70°C

-10°C to 100°C

Timing Range

1min to 99h59min

Temp. Accuracy

±0.5°C

Display Accuracy

±0.1°C

Heating Time(25 to100°C)

≤12min

≤20min

Cooling Time(20 to-10°C)

----

≤30min(*)

Heating

Heater

Peltier

Cooling

----

Peltier

Certificate

CE

Dimension

300 x 220x180 mm

300 x 220x180 mm

Net Weight

2.5 kg

5 kg

Electrical Requirement

110V/60Hz

220V/50Hz

110V/60Hz

220V/50Hz

Catalogue No.

1601005-01

1601005-02

1601010-01

1601010-02

*1) Cooling time  ≤25min (20°C to-5°C ) if the room temperature is lower than 30  °C

*2) Cooling time  ≤30min (20°C to -10°C ) if the room temperature is lower than 25  °C
