Catalogue number : 1601005-02

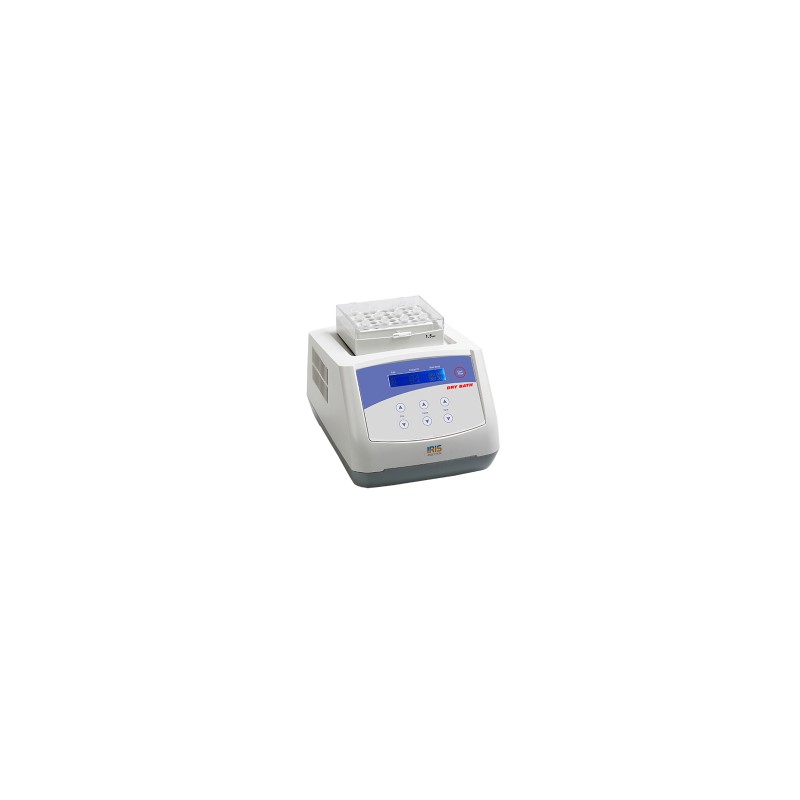

This CE-certified portable metal blocks dry bath incubator featuring a Peltier and Heater design that provides efficient thermal control to sample and temperature can be selected independently with maximum heating and cooling time around 10 to 15 minutes.
This CE-certified portable metal blocks dry bath incubator featuring a Peltier and Heater design that provides efficient thermal control to sample and temperature can be selected independently with maximum heating and cooling time around 10 to 15 minutes.
Available with Conical tubes, Falcon tubes, Eppendorf tubes, tubes, Bath Block, Microplate, and 96-Deep well plate with bearing highest temperature up to 100°C and lowest temperature up to -10°C. Access with 2 configurations with a maximum capacity of up to 8 blocks. The blocks lids protect the samples over evaporation and condensation. Microprocessor with the innovative thermoelectric technique with at a temperature range from 5 to 100°C and -10 to 100°C which can be set with an accuracy of ±0.5°C.
|
Accessories |
Highest Temperature |
Lowest Temperature |
|
96x0.2ml |
100°C |
-10°C |
|
54x0.5ml |
100°C |
-10°C |
|
35x1.5ml |
100°C |
-10°C |
|
35x2.0ml |
100°C |
-10°C |
|
15x0.5ml+20x1.5ml |
100°C |
-10°C |
|
24xDiameter≤Φ12mm tubes |
100°C |
0°C |
|
12x15ml Falcon |
100°C |
0°C |
|
6x50ml Falcon |
100°C |
0°C |
|
103x67x30mm Bath Block |
100°C |
0°C |
|
96x0.2ml Microplate |
100°C |
0°C |
|
24x5ml tubes |
100°C |
0°C |
|
96-Deep well plate |
80°C |
8°C |
|
15x5ml Eppendorf tubes |
100°C |
0°C |

|
Model |
DBI-200 |
DBII-200R |
||
|
Temperature Range |
RT+5°C to 70°C |
-10°C to 100°C |
||
|
Timing Range |
1min to 99h59min |
|||
|
Temp. Accuracy |
±0.5°C |
|||
|
Display Accuracy |
±0.1°C |
|||
|
Heating Time(25 to100°C) |
≤12min |
≤20min |
||
|
Cooling Time(20 to-10°C) |
---- |
≤30min(*) |
||
|
Heating |
Heater |
Peltier |
||
|
Cooling |
---- |
Peltier |
||
|
Certificate |
CE |
|||
|
Dimension |
300 x 220x180 mm |
300 x 220x180 mm |
||
|
Net Weight |
2.5 kg |
5 kg |
||
|
Electrical Requirement |
110V/60Hz |
220V/50Hz |
110V/60Hz |
220V/50Hz |
|
Catalogue No. |
1601005-01 |
1601005-02 |
1601010-01 |
1601010-02 |
|
*1) Cooling time ≤25min (20°C to-5°C ) if the room temperature is lower than 30 °C |
||||
|
*2) Cooling time ≤30min (20°C to -10°C ) if the room temperature is lower than 25 °C |
||||
