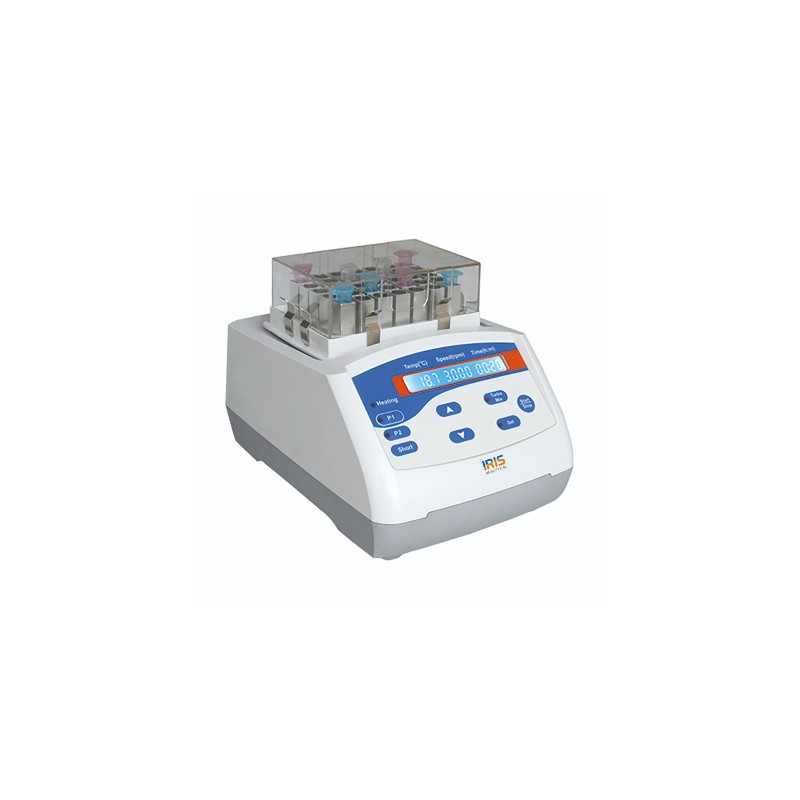

Heating Shaking Digital Dry Bath DBI-510(100V)
Heating Shaking Digital Dry Bath DBI-510(100V)

Catalogue number : 1602505-01

Our DBI-510 introducing 3-D mixing avoids spilling and lid wetting during sample processing. Programmable heating blocks are designed to accommodate the samples in microplates, tubes, and glass vials.

$1,437.50 tax excl.


Availability : 3-4 Weeks

Availability : Availability : 3-4 Weeks

  • Product Information
  • Features
  • Technical Data
  • Downloads

Our DBI-510 introducing 3-D mixing avoids spilling and lid wetting during sample processing. Programmable heating blocks are designed to accommodate the samples in microplates, tubes, and glass vials.

The optional accessories are Eppendorf tubes, conical tubes, Bath Block, Elisa plate, PCR Tube Holder, Tube Holder. Available with two configurations with different blocks.

This dry bath incubator is used to heat the sample for different applications in the laboratory. Built with 10 different types of aluminum blocks to provide the heat distribution uniformly.

The Adapter plates include Microplates: 96, 384,1536-well microplates/deep well plates/PCR plates, Holder:  0.2ml PCR tubes holder, 0.5ml tubes holder,1.5/2.0ml tubes holder- 15ml Microtubes holder, 50ml Microtubes holder, Block: -10 types Aluminum blocks for user choosing.

Accessories

96x0.2ml

54x0.5ml

35x1.5ml

35x2.0ml

15x1.5ml+20x0.5ml

24xDiameter≤Φ12mm tubes

32x0.2ml+25x1.5ml

32x0.2ml+10x0.5ml+15x1.5ml

103x67x30mm Bath Block

96x0.2ml Elisa plate

96x0.2ml PCR Tube Holder

24x0.5ml Tube Holder

  • This heating shaker is suitable for microplates, tubes, and glass vials
  • Offer quick shaking and mixing rate with up to 3,000 rpm speed
  • Control 3 D mixing to avoids spilling and lid wetting
  • 2 programmable soft keys, integrated vortex and short mix functions
  • Very small, light, efficient, and quiet
  • Adapter plates:
  • Microplates: - 96 384,1536-well microplates/deepwell plates/PCR plates
  • Holder: - 0.2ml PCR tubes holder, 0.5ml tubes holder, 1.5/2.0ml tubes holder, 15ml Micro tubes holder, 50ml Micro tubes holder
  • Block: -10 types Aluminium blocks for user choosing

Model

DBI-510

DBI-520

Mixing Frequency

300 to 3000 rpm

300 to 1700 rpm

Mixing Orbit

2mm

3mm

Speed Setting Resolution

10 rpm increment

Mixing Accuracy

±25 rpm

Temp. Display Accuracy

±0.1°C

Mixing Speed

200 to 1500 rpm

Heating Time(25 to100°C)

≤12min

 Temperature Accuracy

±0.25°C at37°C

±0.5°C at95°C

Temperature Range

RT+5°C to 100°C

Time Setting

1min to 99h59min

Time Setting Resolution

1min

Short-Mix Function

Yes

Continuous Working

Yes

Programs

2

Individual Program capacity

3steps

Operation Voltage

24V DC150W

Dimension

230 x170 x165 mm

Net Weight

5.5 kg

Electrical Requirement

AC 100V

AC 240V

AC 100V

AC 240V

Catalogue No.

1602505-01

1602505-02

1602510-01

1602510-01

download pdf product details
