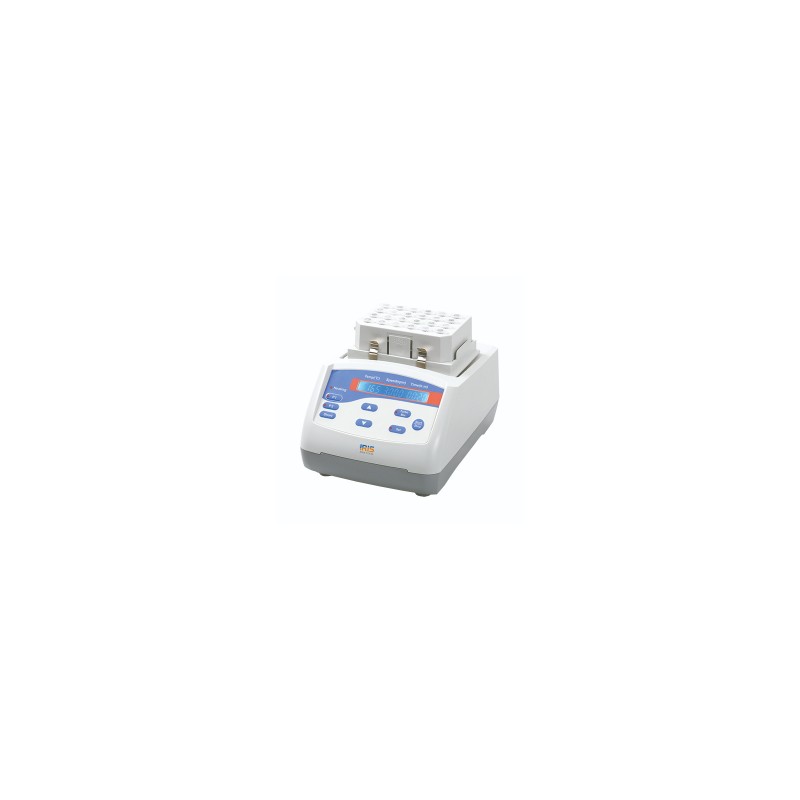

Home >> Products>Products by Category>Baths & Circulators >Heating Shaking Digital Dry Bath DBI-520(100V)
Catalogue number : 1602510-01
Our DBI-520 introducing 3-D mixing avoids spilling and lid wetting during sample processing. Programmable heating blocks are designed to accommodate the samples in microplates, tubes, and glass vials.
Our DBI-510 introducing 3-D mixing avoids spilling and lid wetting during sample processing. Programmable heating blocks are designed to accommodate the samples in microplates, tubes, and glass vials.
The optional accessories are Eppendorf tubes, conical tubes, Bath Block, Elisa plate, PCR Tube Holder, Tube Holder. Available with two configurations with different blocks.
This dry bath incubator is used to heat the sample for different applications in the laboratory. Built with 10 different types of aluminum blocks to provide the heat distribution uniformly.
The Adapter plates include Microplates: 96, 384,1536-well microplates/deep well plates/PCR plates, Holder: 0.2ml PCR tubes holder, 0.5ml tubes holder,1.5/2.0ml tubes holder- 15ml Microtubes holder, 50ml Microtubes holder, Block: -10 types Aluminum blocks for user choosing.
|
Accessories |
|
96x0.2ml |
|
54x0.5ml |
|
35x1.5ml |
|
35x2.0ml |
|
15x1.5ml+20x0.5ml |
|
24xDiameter≤Φ12mm tubes |
|
32x0.2ml+25x1.5ml |
|
32x0.2ml+10x0.5ml+15x1.5ml |
|
103x67x30mm Bath Block |
|
96x0.2ml Elisa plate |
|
96x0.2ml PCR Tube Holder |
|
24x0.5ml Tube Holder |


|
Model |
DBI-510 |
DBI-520 |
||
|
Mixing Frequency |
300 to 3000 rpm |
300 to 1700 rpm |
||
|
Mixing Orbit |
2mm |
3mm |
||
|
Speed Setting Resolution |
10 rpm increment |
|||
|
Mixing Accuracy |
±25 rpm |
|||
|
Temp. Display Accuracy |
±0.1°C |
|||
|
Mixing Speed |
200 to 1500 rpm |
|||
|
Heating Time(25 to100°C) |
≤12min |
|||
|
Temperature Accuracy |
±0.25°C at37°C ±0.5°C at95°C |
|||
|
Temperature Range |
RT+5°C to 100°C |
|||
|
Time Setting |
1min to 99h59min |
|||
|
Time Setting Resolution |
1min |
|||
|
Short-Mix Function |
Yes |
|||
|
Continuous Working |
Yes |
|||
|
Programs |
2 |
|||
|
Individual Program capacity |
3steps |
|||
|
Operation Voltage |
24V DC150W |
|||
|
Dimension |
230 x170 x165 mm |
|||
|
Net Weight |
5.5 kg |
|||
|
Electrical Requirement |
AC 100V |
AC 240V |
AC 100V |
AC 240V |
|
Catalogue No. |
1602505-01 |
1602505-02 |
1602510-01 |
1602510-01 |
