Water Bath WP-50(110V)
Water Bath WP-50(110V)

Catalogue number : 1051505-01

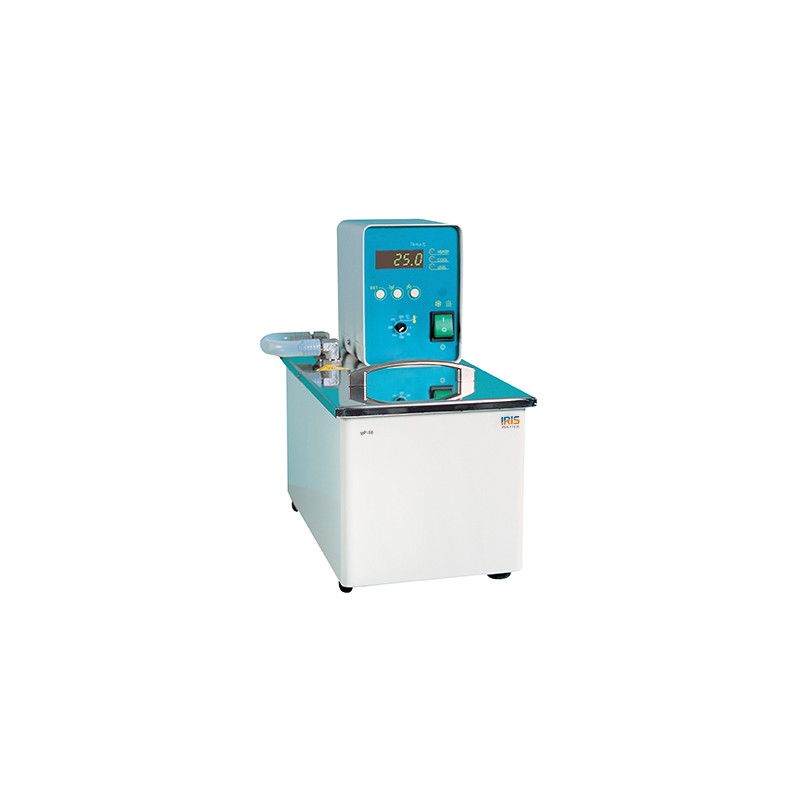

Circulating Water Bath WP-50  Manufactured to the highest standard and specifications, and including innovative technology of water bath range supports, demanding accurate temperature control. The operating concept impresses with its natural and convenient menu navigations with safety approval.

$1,680.00 tax excl.


Availability : 2 - 3 weeks

Availability : Availability : 2 - 3 weeks

  • Product Information
  • Features
  • Technical Data
  • Downloads

Circulating Water Bath WP-50  Manufactured to the highest standard and specifications, and including innovative technology of water bath range supports, demanding accurate temperature control. The operating concept impresses with its natural and convenient menu navigations with safety approval.

The close-packed and ergonomic design means the WP Series is fit for any laboratory application. The circulating water bath have an intuitive LED Temperature display control with a resolution of 0.1˚C.

Feature

  • Convenient to use on a table
  • LED Temperature display, resolution0.1˚C
  • Temperature control of external system
  • PID temperature control
  • Low noise during the operation
  • Cooling coil (Option)

Safety

  • Adjustable high temperature cut-off by heater and bath temperature sensor
  • Dry running protection
  • Protection from excess electric current
  • Water level sensor (Option)

Application

  • Reactors
  • Autoclaves
  • Distillation apparatus
  • Mini plant applications
  • Photometers
  • Refractometer
  • Thermal Blocks

Model

WP-50

WP-100

WP-120

WP-200

WP-250

WP-300

Capacity

5L

10L

12L

20L

25L

30L

Range

Amb~100.0

Accuracy

±0.1

Pressure

0.3 bar

℃ Heat Cap W

800

1000

1000

1400

1800

2000

Pump Capacity Flow Rate

9 liter/min

-

-

-



-

Bath  Dimension

130x140x150 mm

230x140x150 mm

230x140x200 mm

270x340x150 mm

230x140x200 mm

3450x530x150 mm

Dimension

170x320x360 mm

220 x320 x360 mm

220 x320 x360 mm

320x530x360 mm

320x530x360 mm

700x400x360 mm

Net Weight

6

6.8

7

10.5

11

17.5

Electrical Requirement

110V/60Hz

220V/50Hz

110V/60Hz

220V/50Hz

110V/60Hz

220V/50Hz

110V/60Hz

2220V/50Hz

110V/60Hz

220V/50Hz

110V/60Hz

220V/50Hz

Catalogue No.

1051505-01

1051505-02

1051510-01

1051510-02

1051515-01

1051515-02

1051520-01

1051520-02

1051525-01

1051525-02

1051530-01

1051530-02
