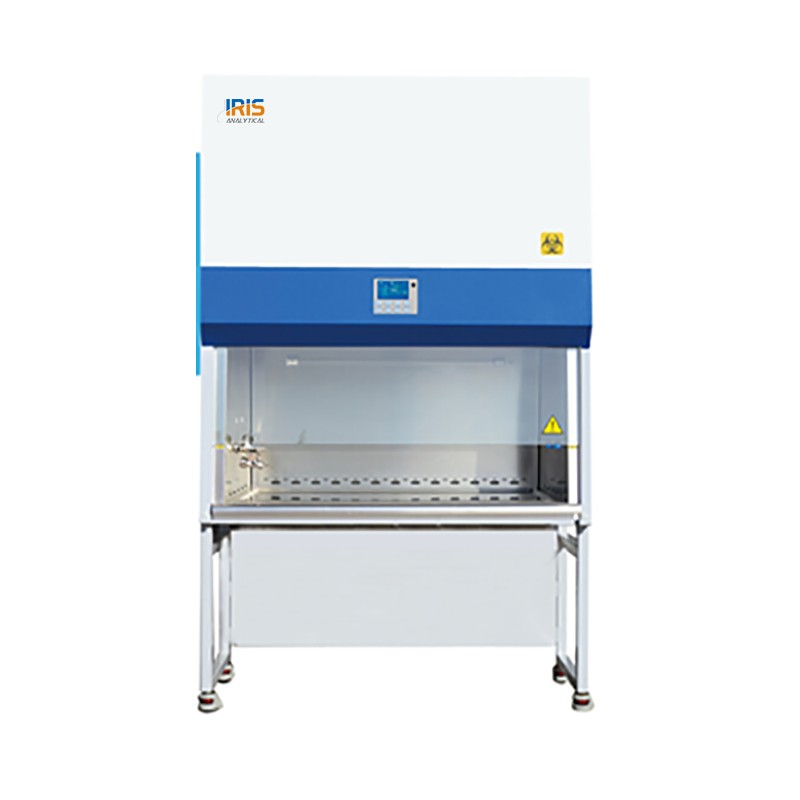

Biological Safety Cabinet IBC-210A2 (110V/50Hz)
Biological Safety Cabinet IBC-210A2 (110V/50Hz)

Catalogue number : 5201005-01

The NSF Certified biological safety cabinets which means it minimizes the hazards particle in working with biosafety agents of level 1, 2, 3, and 4. This Cabinet also requires basic design for construction and performance to provide personal, products and surrounding protection.

$10,650.00 tax excl.


Availability : 3-4 Weeks

Availability : Availability : 3-4 Weeks

  • Product Information
  • Features
  • Technical Data
  • Downloads

The NSF Certified biological safety cabinets which means it minimizes the hazards particle in working with biosafety agents of level 1, 2, 3, and 4. This Cabinet also requires basic design for construction and performance to provide personal, products and surrounding protection.

Suit for working with microbiological research in the absence of volatile or toxic chemicals and radionuclide. Built-in 3 protection shields including operator, sample, and environment.

Built-in additional features including interlock function: UV lamp and front window; UV lamp and blower, fluorescent lamp; Blower and front window.

This model of biosafety is considered a complete exhaust cabinet with a combination of airflow systems: 70% air recirculation, 30% air exhaust.

Accessories

 LCD Display

   Front Window

   SS Water Tap & Gas Tap

  Work Zone

  Foot Master caster

  UV Lamp

Standard Accessories

Optional Accessories

Fluorescent lamp

1 pc

Armrest

 1 pc

UV lamp

2 pcs

Airflow tester

 1 pc

Base stand

1 pc

Formalin fumigation sterilizer

 1 pc

SS water & gas tap

2 pcs

Infrared sterilizer

 1 pc

Drain valve

1 pc

Adjustable base stand

 1 pc

Waterproof socket

2 pcs

Remote control



  • This Cabinet is fully NSF49 certified Biological Safety Cabinet
  • Microprocessor controlled, user can control of all cabinet functions
  • Build with LCD display to show all relevant information on screen
  • Stainless-steel working area with single piece and it is completely removable to keep the underneath surface clean and sterile
  • Motorized front window and automatic air speed adjustable with filter block
  • The side & back wall of cabinet is made up of single piece stainless steel
  • The Front area of cabinet is slanted designed to offer operator comfort while working for long time, reduce glare and maximize reach into the work area.
  • Interlock function: UV lamp and front window; UV lamp and blower, fluorescent lamp; Blower and front window

Model

IBC-210A2

Front Window

Motorized. Two-layer laminated toughened glass ≥5mm. Anti UV

Alarm (audio & Visual)

Abnormal airflow velocity; Filter change; Front Window over height

Maximum Opening

550mm

In Flow Velocity

349m3/h(205cfm)

Down flow Velocity

64%:638m3/h(375cfm)

Exhaust

36%:359m3/h(211cfm)

Sockets

2 :≤500W

Display

LCD Display

Illumination

≥1000Lux

HEPA Filter

Two, 99.999% efficiency at 0.3um, filter life indicator

UV lamp

18W

Motor

One ECM motor, 110V& 220V acceptable, Speed adjustable

Noise

NSF 49≤61 dB/EN 12469≤58 dB

Power Consumption

300 W

Internal Dimension

910x600x660 mm

External Dimension

1087x775x2265 mm

Packing Dimension

1250x1080x1840 mm

Gross Weight

270 kg

Electrical Requirement

                         110V/50Hz

Catalogue No.

5201005-01
