Catalogue number : 5201010-02

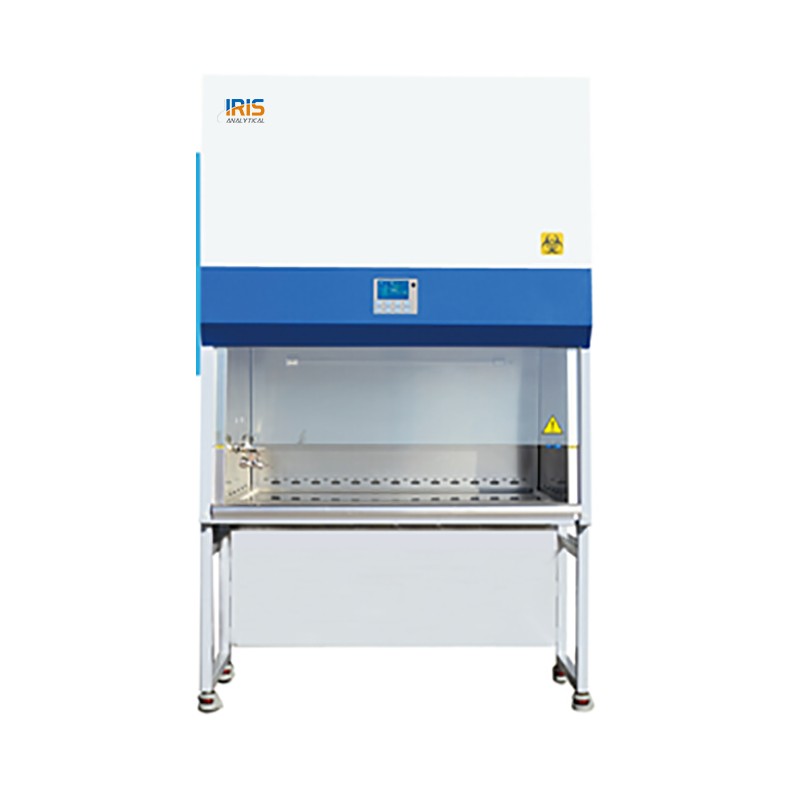

The NSF Certified biological safety cabinets which means it minimizes the hazards particle in working with biosafety agents of level 1, 2, 3, and 4. This Cabinet also requires basic design for construction and performance to provide personal, products and surrounding protection.
The NSF Certified biological safety cabinets which means it minimizes the hazards particle in working with biosafety agents of level 1, 2, 3, and 4. This Cabinet also requires basic design for construction and performance to provide personal, products and surrounding protection.
Suit for working with microbiological research in the absence of volatile or toxic chemicals and radionuclide. Built-in 3 protection shields including operator, sample, and environment.
Built-in additional features including interlock function: UV lamp and front window; UV lamp and blower, fluorescent lamp; Blower and front window.
This model of biosafety is considered a complete exhaust cabinet with a combination of airflow systems: 70% air recirculation, 30% air exhaust.
Accessories
LCD Display
Front Window
SS Water Tap & Gas Tap
Work Zone
Foot Master caster
UV Lamp
|
Standard Accessories |
Optional Accessories |
||
|
Fluorescent lamp |
1 pc |
Armrest |
1 pc |
|
UV lamp |
2 pcs |
Airflow tester |
1 pc |
|
Base stand |
1 pc |
Formalin fumigation sterilizer |
1 pc |
|
SS water & gas tap |
2 pcs |
Infrared sterilizer |
1 pc |
|
Drain valve |
1 pc |
Adjustable base stand |
1 pc |
|
Waterproof socket |
2 pcs |
Remote control |
|
|
Model |
IBC-230A2 |
|
Front Window |
Motorized. Two-layer laminated toughened glass ≥5mm. Anti UV |
|
Alarm (audio & Visual) |
Abnormal airflow velocity; Filter change; Front Window over height |
|
Maximum Opening |
550mm |
|
In Flow Velocity |
649m3/h(382cfm) |
|
Down flow Velocity |
64%:1190m3/h(700cfm) |
|
Exhaust |
36%:669m3/h(394cfm) |
|
Sockets |
2 :≤500W |
|
Display |
LCD Display |
|
Illumination |
≥1000Lux |
|
HEPA Filter |
Two, 99.999% efficiency at 0.3um, filter life indicator |
|
UV lamp |
40W |
|
Motor |
One ECM motor, 110V& 220V acceptable, Speed adjustable |
|
Noise |
NSF 49≤61 dB/EN 12469≤58 dB |
|
Power Consumption |
500 W |
|
Internal Dimension |
1700x600x660 mm |
|
External Dimension |
1873x775x2295 mm |
|
Packing Dimension |
2020x1080x1900 mm |
|
Gross Weight |
363 kg |
|
Electrical Requirement |
220V/60Hz |
|
Catalogue No. |
5201010-02 |
