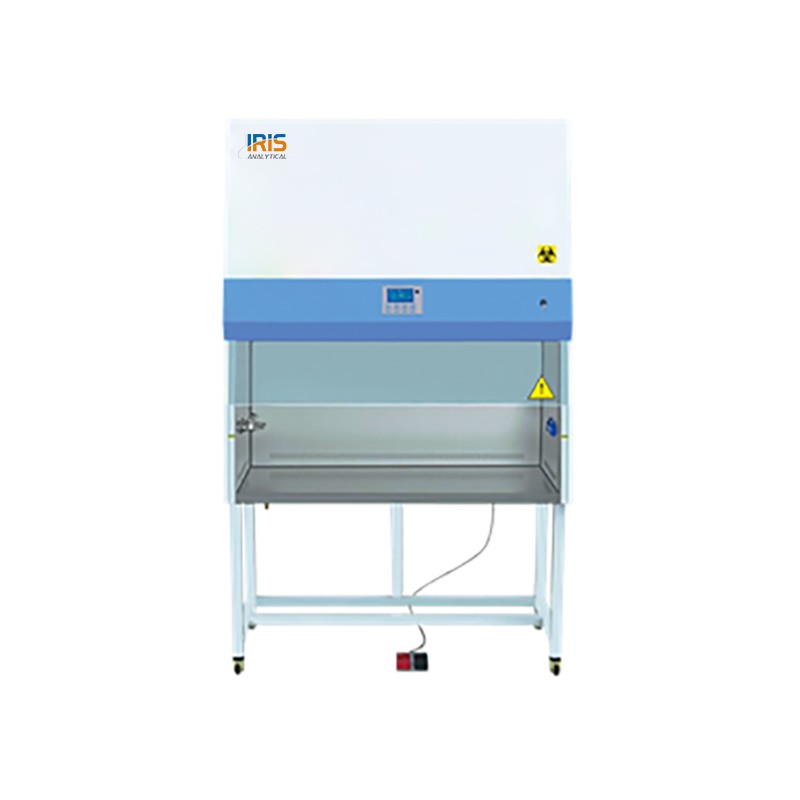

Biological Safety Cabinet IBC-320A2
Biological Safety Cabinet IBC-320A2

Catalogue number : 5201520-02

EN Certified Class II Type A2 Biological Safety Cabinets offer personnel, product, and environmental protection to obtain optimum control over product quality while reducing the potential for exposure of both product and personnel to airborne biological or particulate chemical agents in low to moderate risk-hazard research and drug preparation.

$10,200.00 tax excl.


Availability : 3-4 Weeks

Availability : Availability : 3-4 Weeks

  • Product Information
  • Features
  • Technical Data
  • Downloads

EN Certified Class II Type A2 Biological Safety Cabinets offer personnel, product, and environmental protection to obtain optimum control over product quality while reducing the potential for exposure of both product and personnel to airborne biological or particulate chemical agents in low to moderate risk-hazard research and drug preparation.

Class II A2 biological safety cabinet delivers maximum safety, comfort and convenience, featuring an advanced design for easy operation and maximum safety, it could be used wherever protection is of paramount importance in safety levels 1 to 3, including research, pharmaceutical quality control labs, pharmacies, clinics and hospitals.

Accessories

   LCD Display

      Front Window

   Waterproof Sockets

    Work Zone

Standard Accessories

Optional Accessories

Waterproof sockets

4 pcs

Water and gas tap M

Base stand

1 pc



Remote control

1 pc



Fluorescent lamp

1 pc



Drain valve

1 pc



  • The transparent side glass windows maximize light and visibility inside the cabinet, providing a bright and open working environment
  • The 10° sloped front allows an ergonomic, fatigue-free working posture
  • The front window is motorized for convenient, one-hand operation. The window control is mounted on the front control panel
  • When fully lowered the front window, it seals automatically against a closed-cell peripheral gasket to isolate the interior and prevent the escape of contaminants during decontamination
  • Front window can be closed manually in case of power failure

Model

IBC-320A2

Front Window

Motorized. 2 layer laminated toughened glass ≥5mm. Anti UV

Alarm (Audio & Visual)

Abnormal Airflow velocity; Filter change; Front Window over height

Maximum Opening

550 mm

In Flow Velocity

465m3/h(275cfm)

Down flow Velocity

64%:868m3/h(498cfm)

Exhaust

36%:488m3/h(287cfm)

Sockets

2 water socket:≤500W

Display

LCD Display

Illumination

≥1000 Lux

HEPA Filter

Two, 99.999 % efficiency at 0.3 um, filter life indicator

UV lamp

Germicidal UV lamp, Emission of 253.7 nm - 30W

Motor

One ECM motor, 110 V & 220 V acceptable, Speed adjustable

Noise

EN 12469≤60 dB

Power Consumption

≤600 W

Internal Dimension

1210×660×660 mm

External Dimension

1383×775×2295 mm

Packing Dimension

1540x1080x1900 mm

Gross Weight

334 kg

Electrical Requirement

AC230V, 50Hz

Catalogue No.

5201510-02

download pdf product details
