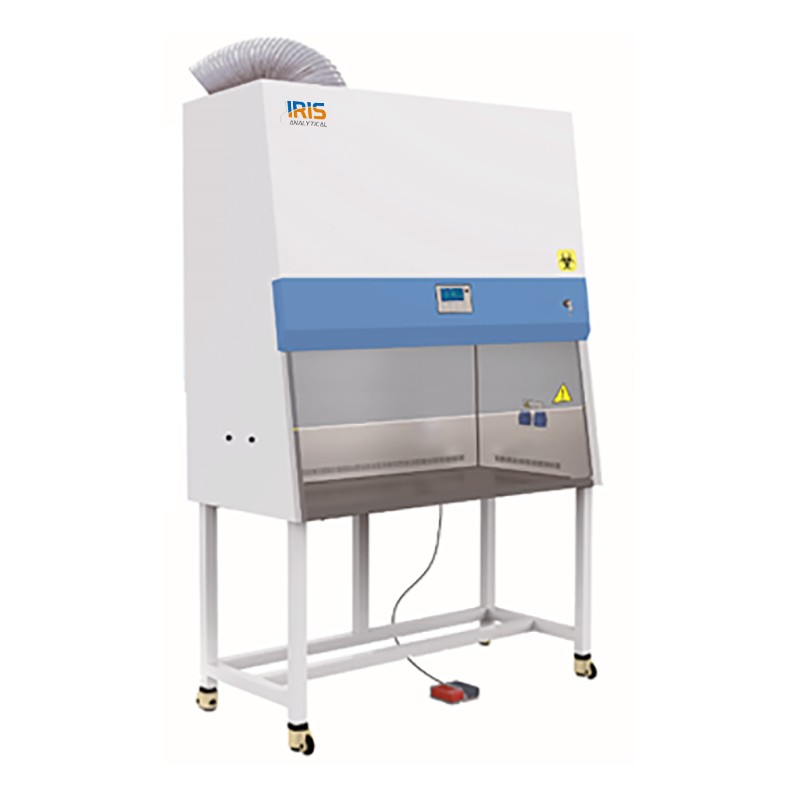

Biological Safety Cabinet IBC-120B2(110V/60Hz)
Biological Safety Cabinet IBC-120B2(110V/60Hz)

Catalogue number : 5203010-01

The Class II, Type B2 Biological Safety Cabinets provide downflow air drawn from within the laboratory or outside air. No downflow air is drawn from the cabinet exhaust air.


Availability : 3-4 Weeks

Availability : Availability : 3-4 Weeks

  • Product Information
  • Features
  • Technical Data
  • Downloads

The Class II, Type B2 Biological Safety Cabinets provide downflow air drawn from within the laboratory or outside air. No downflow air is drawn from the cabinet exhaust air.

The HEPA filter is used to maintain air exhaust of downflow and inflow air deprived of recirculation inside the cabinet that keeps the cabinet interior under the negative 120 Pa and are maintained contaminated ducts.

Iris Class II, Type B2 Biological Safety Cabinets are designed specifically for laboratories that need containment and removal of vapors, mists, and particulates. Our Class II, Type B2 Biological Safety Cabinet’s airflow system increases users’ comfort and productivity while decreasing the overall operating costs.

Its unique Airflow Design- Operates with a reduced exhaust airflow and resistance, which minimizes noise and reduces the volume of conditioned air that is exhausted from the laboratory. Learn more in our energy-efficient white paper.

B2 Biological Safety Cabinet has a higher class of safety protection compared with type A2, it may be used for work with volatile toxic chemicals and radionuclides as required as adjuncts.

Standard Accessories

Optional Accessories

Fluorescent Lamp

     1 pc

Water and gas tap

UV lamp

     2pcs



Base Stand

     1pc



Remote control

     1pc



Foot switch

     1pc



Exhaust blower

    1pc



Exhaust duct

    1pc



Drain valve

    1pc



Waterproof sockets

    2pcs



Pipe strap

    2pcs



  • Designed with motorized front window with time reserve function
  • Built with HEPA Filter life and UV Life indicator
  • Cabinet has additional features including automatic air speed adjustable with filter block
  • Negative pressure, ensure maximum safety in work area
  • Comes with an Audio and visual alarm (Filter replacement, Window over height, abnormal Air flow velocity, etc.)
  • This cabinet contain standard accessories, no extra expense
  • It designed with Remote to control all functions, making operation easier and more convenient
  • Features with foot switch to adjust front window height while working, and escape airflow turbulence caused by arm movement
  • Door designed with Interlock Function: UV lamp and front window; UV lamp and blower, fluorescent lamp; Blower and front window

Model

IBC-120B2

Front Window

Motorized. Two-layer laminated toughened glass ≥5mm. Anti UV

Alarm (audio & Visual)

Filter replacement, window over height, abnormal air flow velocity

Maximum Opening

420 mm

In Flow Velocity

0.53±0.025 m/s

Down flow Velocity

0.33±0.025 m/s

Control System

Microprocessor

Sockets

2 : 500W

Display

LCD display

Illumination

≥1000Lux

UV lamp

18W× 1

Fluorescent Lamp

21W× 2

Power Consumption

850 W

Internal Dimension

1150x600x660 mm

External Dimension

1300x750x2250 mm

Packing Main Body Dimension

1460x1050x1800 mm

Packing Exhaust Blower Dimension

970x810x630 mm

Gross Weight

276 kg

Electrical Requirement

110V/60Hz

Catalogue No.

5203010-01

download pdf product details
