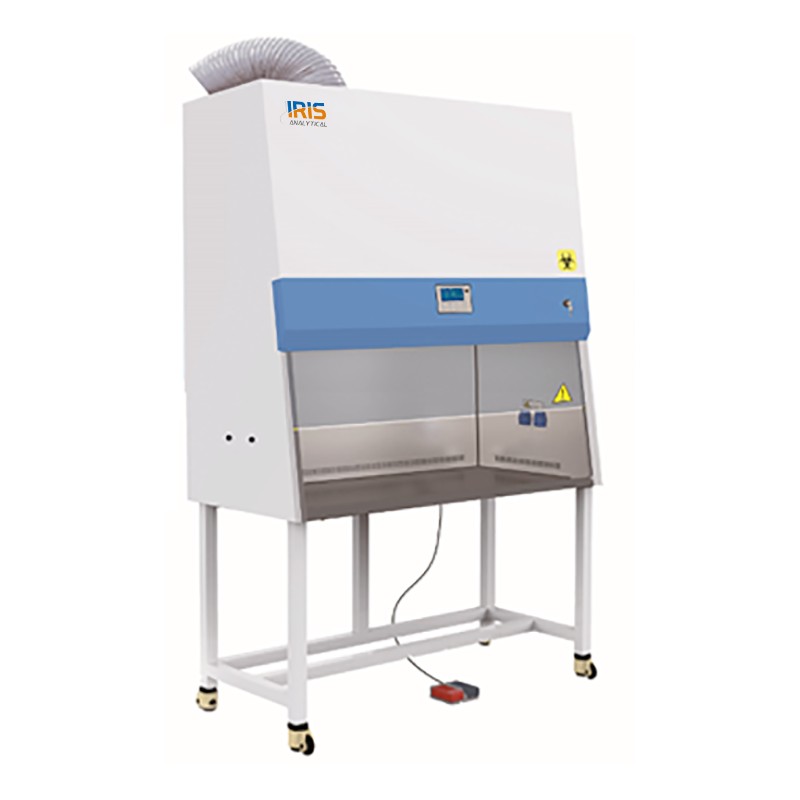

Home >> Products>Products by Category>Biological Safety Cabinets>Biological Safety Cabinet IBC-120B2(220V/50Hz)
Catalogue number : 5203010-02
The Class II, Type B2 Biological Safety Cabinets provide downflow air drawn from within the laboratory or outside air. No downflow air is drawn from the cabinet exhaust air.
The Class II, Type B2 Biological Safety Cabinets provide downflow air drawn from within the laboratory or outside air. No downflow air is drawn from the cabinet exhaust air.
The HEPA filter is used to maintain air exhaust of downflow and inflow air deprived of recirculation inside the cabinet that keeps the cabinet interior under the negative 120 Pa and are maintained contaminated ducts.
Iris Class II, Type B2 Biological Safety Cabinets are designed specifically for laboratories that need containment and removal of vapors, mists, and particulates. Our Class II, Type B2 Biological Safety Cabinet’s airflow system increases users’ comfort and productivity while decreasing the overall operating costs.
Its unique Airflow Design- Operates with a reduced exhaust airflow and resistance, which minimizes noise and reduces the volume of conditioned air that is exhausted from the laboratory. Learn more in our energy-efficient white paper.
B2 Biological Safety Cabinet has a higher class of safety protection compared with type A2, it may be used for work with volatile toxic chemicals and radionuclides as required as adjuncts.
|
Standard Accessories |
Optional Accessories |
|
|
Fluorescent Lamp |
1 pc |
Water and gas tap |
|
UV lamp |
2pcs |
|
|
Base Stand |
1pc |
|
|
Remote control |
1pc |
|
|
Foot switch |
1pc |
|
|
Exhaust blower |
1pc |
|
|
Exhaust duct |
1pc |
|
|
Drain valve |
1pc |
|
|
Waterproof sockets |
2pcs |
|
|
Pipe strap |
2pcs |
|
|
Model |
IBC-120B2 |
|
Front Window |
Motorized. Two-layer laminated toughened glass ≥5mm. Anti UV |
|
Alarm (audio & Visual) |
Filter replacement, window over height, abnormal air flow velocity |
|
Maximum Opening |
420 mm |
|
In Flow Velocity |
0.53±0.025 m/s |
|
Down flow Velocity |
0.33±0.025 m/s |
|
Control System |
Microprocessor |
|
Sockets |
2 : 500W |
|
Display |
LCD display |
|
Illumination |
≥1000Lux |
|
UV lamp |
18W× 1 |
|
Fluorescent Lamp |
21W× 2 |
|
Power Consumption |
850 W |
|
Internal Dimension |
1150x600x660 mm |
|
External Dimension |
1300x750x2250 mm |
|
Packing Main Body Dimension |
1460x1050x1800 mm |
|
Packing Exhaust Blower Dimension |
970x810x630 mm |
|
Gross Weight |
276 kg |
|
Electrical Requirement |
110V/60Hz |
|
Catalogue No. |
5203010-01 |
