Mini Centrifuges ICP-310(AC85V/50Hz)
Mini Centrifuges ICP-360(AC85V/50Hz)

Catalogue number : 1401530-04

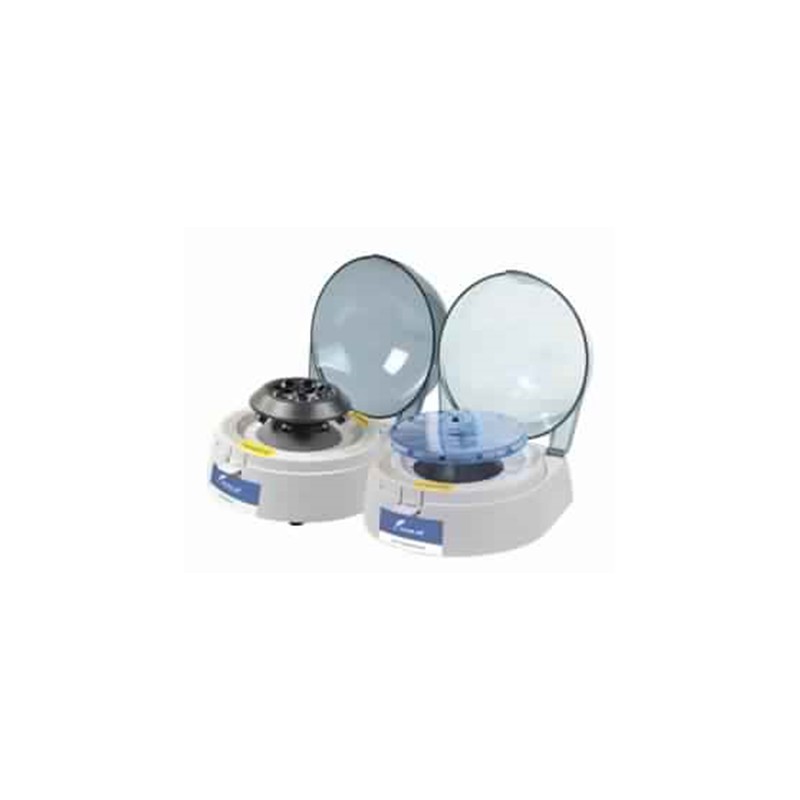

Mini Centrifuges ICP-360 fully automatic instrument, allows considerable time saving, best for the hematocrit, medical and laboratory and research applications. Equipped with shock absorber to minimize vibration during working and provide flexibility in your laboratory.

$680.00 tax excl.


Availability : 3-4 Weeks

Availability : Availability : 3-4 Weeks

  • Product Information
  • Features
  • Specifications
  • Technical Data
  • Accessories
  • Downloads

Mini Centrifuges ICP-360  fully automatic instrument, allows considerable time saving, best for the hematocrit, medical and laboratory and research applications. Equipped with shock absorber to minimize vibration during working and provide flexibility in your laboratory. Spins samples volume up to 1.5ml(2) mlx8 with maximum speed 12000 rpm and available with acceleration and for deceleration profile with high efficiency. Compatible with low working noise with not more than 49 dB. Replacing and changing rotor by simply lift the rotor out of the shaft without breaking your back or damaging the centrifuge. Ideal for microfiltration and rapid spinning accelerates and decelerates within couples of minutes to ensure excellent consequences of sample separation.

Accessories

Low Working Noise

Low Vibration

Small size with large capacity

Easily interchangeable rotor

Large centrifugal force

 Rotors

                      Rotor

Rotor 1: 2mlx8; 0.5mlx adaptor each 8 pcs

Rotor 2:0.2mlx8; tubes stripsx2 rows

Rotor 3:3/4 centrifuge tubes:2mlx8;0.5mlx8;0.2mlx8 tubes strips x 2row

Rotor 4:D11.5X40MM 24 capillary hematocrit

Rotor 5: 5mlx4

  • Offer patented special rotor to prove low noise during machine running

  • Offer shock absorber to avoid excess vibration

  • Build with large capacity rotor

  • Comes with interchangeable rotor

  • Comes with filtration and voltage regulation function

  • Protective electronic with lock door, electric door with imbalance protection to provide more protection

  • Portable and easy handling

  • Rotors and adaptors are available as an optional accessorie

Product Type Mini Centrifuge
Model ICP-360
Speed Range (rpm) 12000 rpm
Max RCF 8550xg
Capacity 1.5ml(2)mlx8
Acceleration 15 seconds
Decceleration 3 seconds
Drive System Direct Drive/Vibration
External Dimemsions (HxLxW) mm 2350x1650x160 mm
Net Weight (kg) 1.2 kg
Electrical Requirements AC85V/50Hz
Catalogue No. 1401530-04

Model

ICP-310

ICP-320

ICP-330

ICP-340

ICP-350

ICP-360

Capacity

1.5ml(2)mlx8

D1.5MMX40MM

Max RCF

810 to 3260xg

6652xg

810 to 6652xg

8550xg

Speed Range

4000 rpm

7200 rpm

4000 rpm to 7200 rpm

10000 rpm

4000/72000/10000 rpm

12000 rpm

Noise

47dB/49dB

Rotor

Rotor1 to Rotor 4

Rotor5

Materials

Cover: PC; Main frame: ABS; Absorber: NBR; Rotor: ABS; Adaptor: PP

Speed Control

Automatic/Constant speed

Driving System

Direct Drive/Vibration

Acceleration/deceleration time

closed: within 15 seconds and opened: within 3 seconds

Dimension

2350x1650x160 mm

Weight

1.2 kg

Electrical Requirement

AC85V/50Hz

264V/60HZ

AC85V/50Hz

264V/60HZ

AC85V/50Hz

264V/60HZ

AC85V/50Hz

264V/60HZ

AC85V/50Hz

264V/60HZ

AC85V/50Hz

264V/60HZ

Catalogue No.

1401505-04

1401505-02

1401510-04

1401510-02

1401515-04

1401515-02

1401520-04

1401520-02

1401525-04

1401525-02

1401530-04

1401530-02

Model Image Name Product Detail Availability Price Action
1401505-04 Rotor 1 Fixed Angle 1

2mlx8; 0.5mlx adaptor each 8 pcs

3-4 Weeks

Price On Request

1401505-04 PCT Rotor 2 PCT Rotor 2

0.2mlx8; tubes stripsx2 rows

3-4 Weeks

Price On Request

1401505-04 PCR Rotor 3/4 PCR Rotor 3/4

centrifuge tubes:2mlx8;0.5mlx8;0.2mlx8 tubes strips x 2rows

3-4 Weeks

Price On Request

1401505-04 PCR Rotor 3/4 Hematocrit Rotor 5

D11.5X40MM 24 capillary hematocrit

3-4 Weeks

Price On Request

1401505-04 Rotor 1 Fixed Angle Rotor 6

5mlx4

3-4 Weeks

Price On Request

download pdf product details
