Home >> Products>Products by Category>Centrifuges>Microcentrifuge IBMC-5170
Catalogue number : 140701502

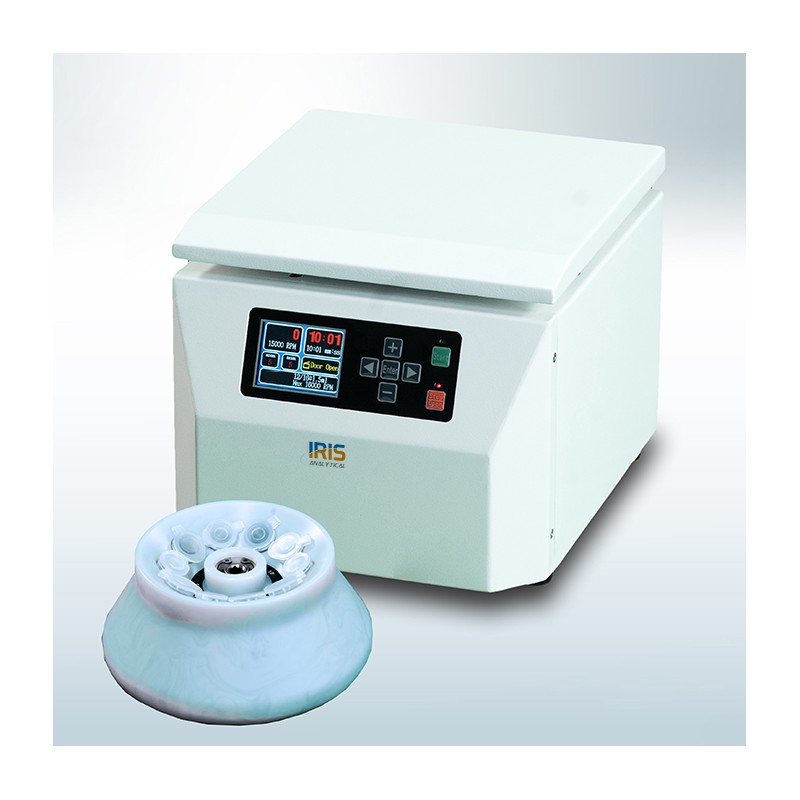

Microcentrifuge IBMC-5170 design with interchangeable rotors for procedure with 1.5 ml microtubes and 0.5 ml PCR strip tubes with adjustable timing and RPM during operation anytime, as well as to check centrifugal force without stopping the machine.
Microcentrifuge IBMC-5170 design with interchangeable rotors for procedure with 1.5 ml microtubes and 0.5 ml PCR strip tubes with adjustable timing and RPM during operation anytime, as well as to check centrifugal force without stopping the machine.
The IBMC-5170 use in different applications PCR laboratories, clinical research and molecular biology and general cell culture applications. For safety we introduced electronic door lock. Available different accessories which can accommodate 18×0.5ml, 12×1.5ml multiple tube strips.
Accessories

Energy efficient AC brushless regulating motor
Available with 10 profile for acceleration and 10 for deceleration, high efficiency
40 groups of program storage space, users can program and adjust freely
Protective electronic with lock door, electric door with imbalance protection to provide more protection and safety along with automatic balancing without the need for trimming
Designed digital LED screen to show various information including running time, speed, RCF
Available 15 memory slots for your personal settings
Eco friendly with high efficiency refrigerating system, able to maintain temperature under 0℃ during maximum RPM
Centrifugal chamber are constructed with stain less steel
Designed with air exhaust temperature and low noise compressor
Small foot print and easy handling
| Product Type | Micro centrifuge |
| Model | IBMC-5170 |
| Speed Range (rpm) | 17000rpm |
| Max RCF | 19515×g |
| Capacity | 10×5ml |
| Rotor | Angle R1: 12×1.5/2.2ml; 17000rpm/19515×g Angle R2: 10x5ml; 15000rpm/15940xg |
| Timer | 1 to 99 min |
| External Dimemsions (HxLxW) mm | 380×350×300 mm |
| Net Weight (kg) | 11 kg |
| Gross Weight (kg) | 15 kg |
| Power | 250 W |
| Electrical Requirements | AC 220±22V 50/60Hz 10A |
| Catalogue No. | 140701502 |
|
Model |
IBMC-5100 |
IBMC-5160 |
IBMC-5170 |
IBMC-5160R |
|
Capacity |
24×1.5ml |
10/12×5ml |
10×5ml |
10/12×5ml |
|
Max RCF |
18757×g |
18757×g |
19515×g |
18757×g |
|
Speed Range |
16000rpm |
16500rpm |
17000rpm |
16000rpm |
|
Noise |
< 60dB(A) |
≤ 65dB(A) |
||
|
Rotor |
R1: 12×1.5ml; 16000rpm/17800×g, R2: 24×1.5ml; 14000rpm/18757×g |
Angle R1:12/16×1.5/2.2ml; 16500rpm/18360×g Angle R2: 10/12×5ml; 15000rpm/15940×g Angle R3:24×1.5/2.2ml; 14000rpm/18757×g |
Angle R1: 12×1.5/2.2ml; 17000rpm/19515×g Angle R2: 10x5ml; 15000rpm/15940xg
|
Angle R1: 12/16×1.5/2.2ml; 16000rpm/17800×g Angle R2: 18×0.5ml; 15000rpm/14080×g Angle R3: 10/12×5ml; 15000rpm/15940×g Angle R4: 24×1.5/2.2ml; 14000rpm/18757×g
|
|
Rotor Diameter |
160 mm |
200 mm |
200 mm |
160 mm |
|
Temperature Range |
- |
-20℃ to 40℃ |
||
|
Revolutions/min |
±20 rpm |
|||
|
Temperature Accuracy |
- |
±1.0℃ |
||
|
Timer |
1 to 99 min |
|||
|
Power Consumption |
150 W |
250 W |
250 W |
400 W |
|
Internal Dimension |
315×270×240 mm |
315×270×240 mm |
315×270×240 mm |
510X280X270 mm |
|
External Dimension |
415×370×315 mm |
380×350×300 mm |
380×350×300 |
610X380X370 mm |
|
Net Weight |
10kg |
11kg |
11kg |
40 kg |
|
Gross Weight |
12kg |
13kg |
15kg |
45 kg |
|
Electrical Requirement |
AC 220±22V 50/60Hz 3A |
AC 220±22V 50/60Hz 10A |
||
|
Catalogue No. |
140700502 |
140701002 |
140701502 |
140702002 |
| Model | Image | Name | Product Detail | Availability | Price | Action |
| 140701502 |
|

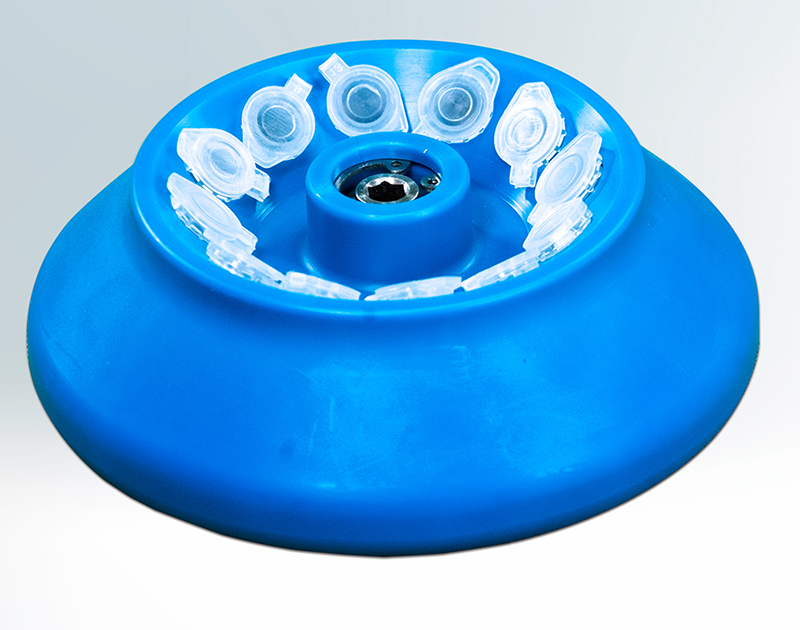

Angle Rotor 1 |
12×1.5/2.2ml; 17000rpm/19515×g |
3-4 Weeks |
||
| 140701502 |
|

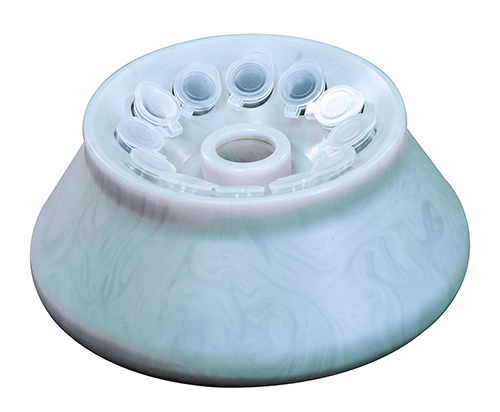

Angle Rotor 2 |
10x5ml; 15000rpm/15940xg |
3-4 Weeks |
