Catalogue number : 140851002

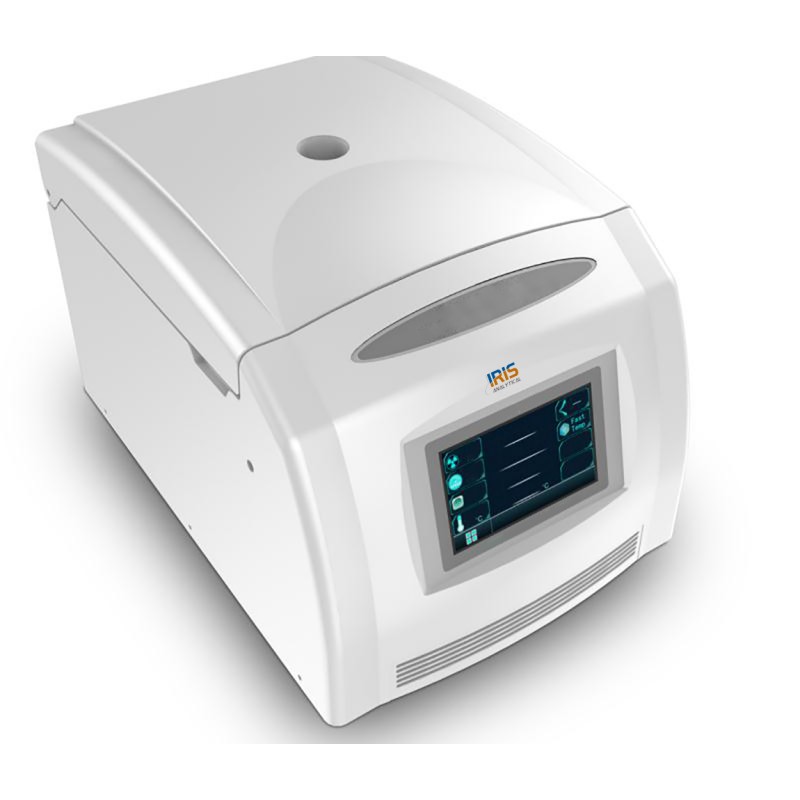

High Speed Refrigerated Microcentrifuge IBMC-8400 designed with Frequency conversion motor drive. Available capacity 24x1.5ml with maximum speed ranging 15000 rpm. Accommodates standard rotor: 24x1.5ml fixed-angle rotor and selectable rotor: 4x0.2ml x8 PCR tubes.
High Speed Refrigerated Microcentrifuge IBMC-8400 designed with Frequency conversion motor drive. Available capacity 24x1.5ml with maximum speed ranging 15000 rpm. Accommodates standard rotor: 24x1.5ml fixed-angle rotor and selectable rotor: 4x0.2ml x8 PCR tubes.
It is sealed and can function at high RPM owing to the ability to reduce the heat produced by higher rotation speeds worked under temperature range -10℃ to 35℃.
| Product Type | Micro Centrifuge |
| Model | IBMC-8400 |
| Max RPM | 15000 rpm |
| Max RCF | 21630xg |
| Capacity | 24x1.5ml |
| Rotor | Standard rotor: 24x1.5ml Fixed-angle Rotor Selectable rotor: 4x0.2ml x8 PCR tubes |
| Temperature Range (℃ ) | -10℃ to 35℃ |
| Temperature Accuracy (℃ ) | ±1℃ |
| Timer | 1 to 999min, 59s |
| External Dimemsions (HxLxW) mm | 400x285x285 mm |
| Net Weight (kg) | 19 kg |
| Electrical Requirements | AC 220V 50HZ 15A |
| Catalogue No. | 140851002 |
|
Model |
IBMC-8100 |
IBMC-8400 |
|
Capacity |
24x1.5ml |
|
|
Max RCF |
18800xg |
21630xg |
|
Speed Range |
14000 rpm |
15000 rpm |
|
Noise |
≤55dB(A) |
|
|
Rotor |
Standard rotor:24x1.5ml Fixed-angle Rotor Selectable rotor: 4x0.2ml x8 PCR tubes |
|
|
Temperature Range |
-10℃ to 35℃ |
|
|
Revolutions/min |
±10 rpm |
|
|
Temperature Accuracy |
±1℃ |
|
|
Timer |
1 to 999min, 59s |
|
|
Dimension |
400x285x285 mm |
|
|
Weight |
19 kg |
|
|
Electrical Requirement |
AC 220V 50HZ 15A |
|
|
Catalogue No. |
140850502 |
140851002 |
