Catalogue number : 1401000502

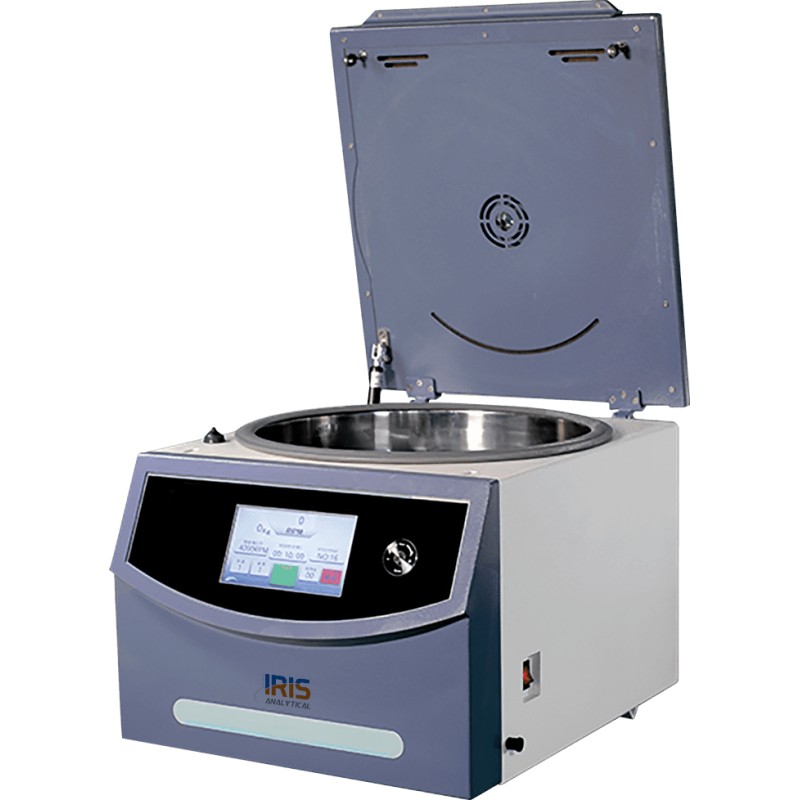

Benchtop Low Speed Centrifuge IBLC-3200 with lock function, self-diagnostic function, and Automatic identification system for magnetic rotor, automatic matching of corresponding rotor program, preventing misoperation and ensuring centrifugal safety.
Benchtop Low Speed Centrifuge IBLC-3200 with lock function, self-diagnostic function, and Automatic identification system for magnetic rotor, automatic matching of corresponding rotor program, preventing misoperation and ensuring centrifugal safety. Suitable for clinical medicine, biochemistry, genetic engineering, immunological applications. Features with 7-inch touch screen with multi-functional knob combination parameters. Accommodates angle, swing rotor and swing rotor as these motor capable of accommodating a great number of tubes at once.
Available with 15 profile for acceleration and 15 for deceleration, high efficiency
New high torque frequency conversion driving motor
Allow automatic identification system for magnetic rotor, automatic matching of corresponding rotor program, preventing misoperation and ensuring centrifugal safety
Double electronic door lock, full steel door cover protection, superior to industrial standards and Password lock function
Microcomputer controlled
Protective electronic with lock door, electric door with imbalance protection to provide more protection and safety along with automatic balancing without the need for trimming
Designed digital 7-inch screen with multi-functional knob combination
Eco friendly with high efficiency refrigerating system, able to maintain temperature under 0℃ during maximum RPM
Centrifugal chamber are constructed with stain less steel
Designed with air exhaust temperature and low noise compressor
Small foot print and easy handling
Store up to 99 program groups, 99 use records and fault records can be traced, using hours & minutes and minutes & seconds two timing options
| Model | IBLC-3200 |
| Max RPM | 6500 rpm |
| Capacity | 4×750 ml |
| Rotor | Angle rotor 1 : 6×50ml, 12×10ml; 6500 rpm, 5190×g Swing out 2: 4×50ml(option); 4000 rpm, 2810×g |
| Timer | 1min to 99h, 59min, 59s |
| Net Weight (kg) | 58 kg |
| Shipping Dimensions (HxLxW) mm | 637×537×484 mm |
| Power | 750 W |
| Electrical Requirements | AC 220±22V 50Hz 15A |
| Catalogue No. | 1401000502 |
|
Model |
IBLC-3200 |
|
Capacity |
4×750 ml |
|
Max RCF |
5190×g |
|
Speed Range |
6500 rpm |
|
Noise |
≤60dB(A) |
|
Rotor |
Angle rotor 1 : 6×50ml, 12×10ml; 6500 rpm, 5190×g Swing out 2: 4×50ml(option); 4000 rpm, 2810×g |
|
Rotor Diameter |
430 mm |
|
Revolutions/min |
±10 rpm |
|
Timer |
1min to 99h, 59min, 59s |
|
Power Consumption |
750 W |
|
Dimension |
560×460×390 mm |
|
Packing Dimension |
637×537×484 mm |
|
Net Weight |
58 kg |
|
Electrical Requirement |
AC 220±22V 50Hz 15A |
|
Catalogue No. |
1401000502 |
