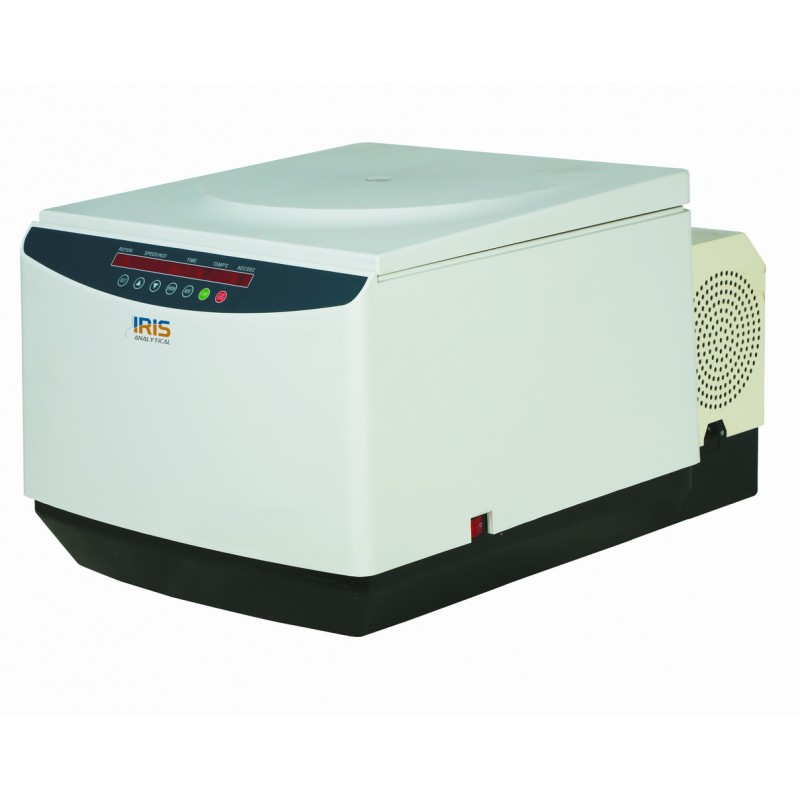

Benchtop Large Capacity Refrigerated Centrifuge IBLC-2080(AC110/50Hz)
Benchtop Large Capacity Refrigerated Centrifuge IBLC-2080(AC110/50Hz)

Catalogue number : 1401351001

Benchtop Large Capacity Refrigerated Centrifuge IBLC-2080 compiled with microcomputer allow for instant rotor identification, which robotically converts the rotational speed to the relevant RCF checking the user from setting a speed above the capabilities of the installed rotor along with R404a compressor unit and are

$8,342.00 tax excl.


Availability : 3-4 Weeks

Availability : Availability : 3-4 Weeks

  • Product Information
  • Features
  • Specifications
  • Technical Data
  • Downloads

Benchtop Large Capacity Refrigerated Centrifuge IBLC-2080 compiled with microcomputer allow for instant rotor identification, which robotically converts the rotational speed to the relevant RCF checking the user from setting a speed above the capabilities of the installed rotor along with R404a compressor unit and are convenient for a wide range of applications.

Features with LCD/LED touch screen with multi-functional knob combination parameters. Accommodates different rotor and adaptors, as these motor capable of accommodating a great number of tubes at once. Available with 9 profiles for acceleration and for deceleration with high efficiency. Additionally, it comes with DC brushless converter motor.

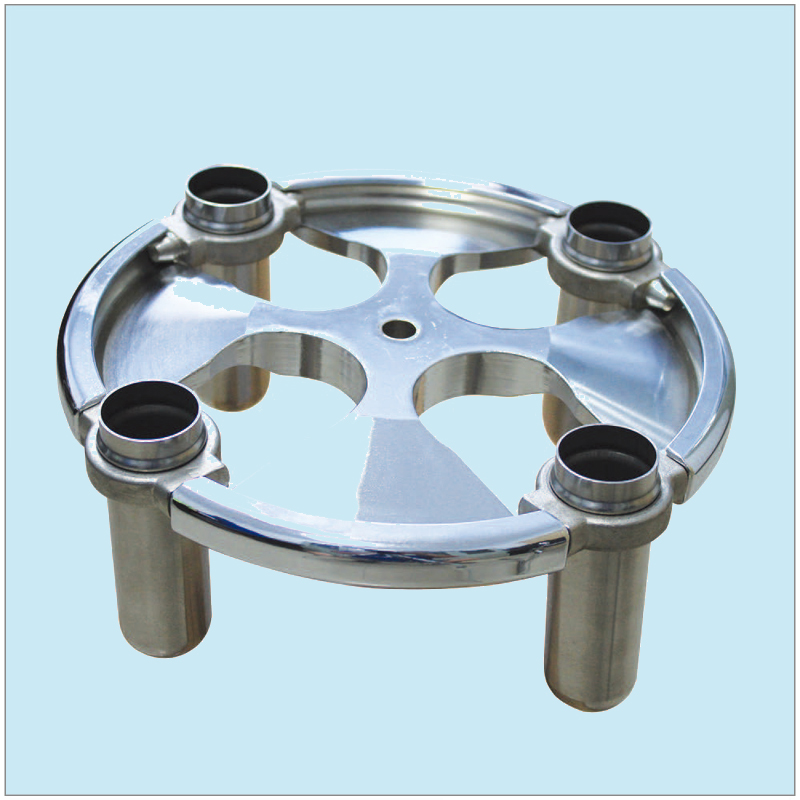

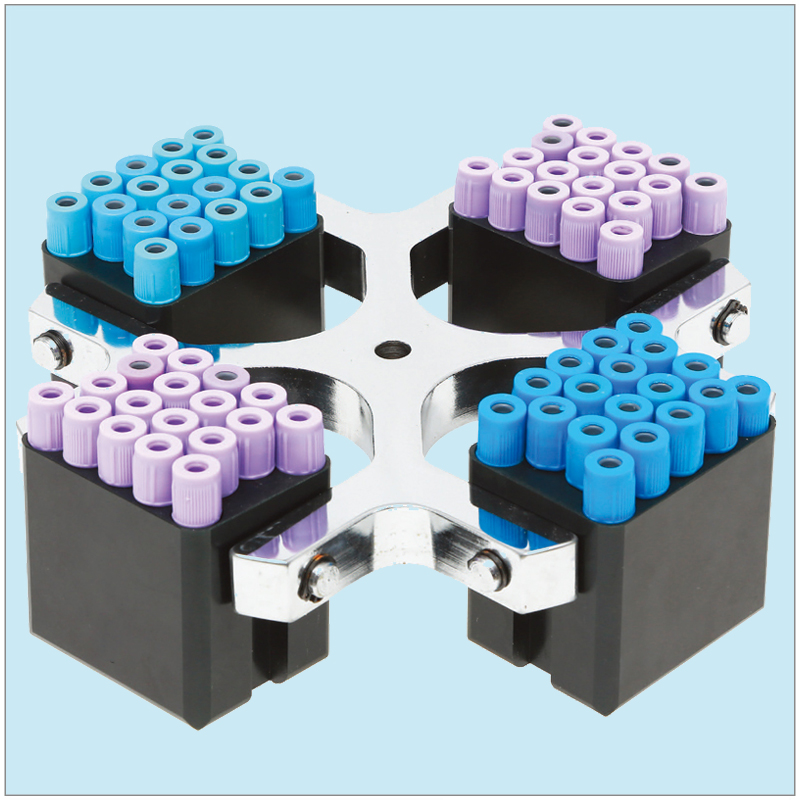

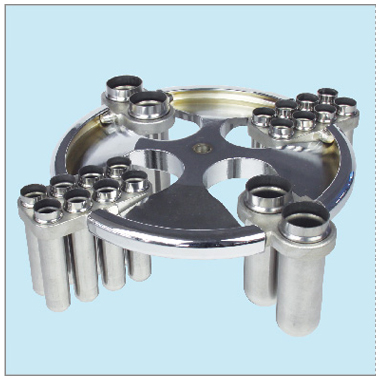

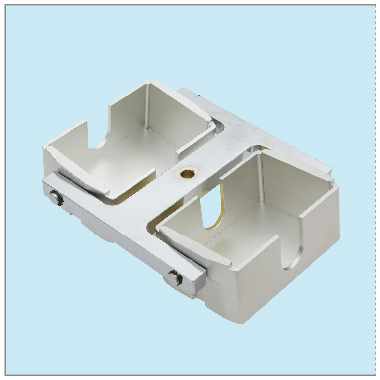

Accessories

                                  Model

IBLC-2050

IBLC-2080

Rotor 1

4000rpm;2810×g

4000rpm;2810×g

Rotor 2

7ml×72;4000rpm;2810×g

7ml×72;4000rpm;2810×g

Rotor 3

7ml×48;4000rpm;2810×g

7ml×48;4000rpm;2810×g

Rotor 4

96mlx8; 4000rpm;2200×g

96mlx8; 4000rpm;2200×g

Rotor 5

100ml×4;5000rpm;4390×g

250ml×4;4300rpm;3582×g

Rotor 6

-

100ml×8;8000rpm;9100×g

  • Energy DC efficient brushless regulating motor
  • Available with 9 profile for acceleration and 9 for deceleration, high efficiency
  • Allow automatic identification system for magnetic rotor, automatic matching of corresponding rotor program, preventing misoperation and ensuring centrifugal safety
  • Electronic door lock, full steel door cover protection, superior to industrial standards and Password lock function
  • Microprocessor controlled
  • Protective electronic with lock door, electric door with imbalance protection to provide more protection and safety along with automatic balancing without the need for trimming
  • Designed digital LCD, LED screen with multi-functional knob combination
  • Eco friendly with high efficiency refrigerating system, able to maintain temperature under 0℃ during maximum RPM
  • Centrifugal chamber are constructed with stain less steel
  • Designed with air exhaust temperature and low noise compressor
  • CFC-free refrigerants, refrigerating/heating double loop
Model IBLC-2080
Speed Range (rpm) 8000 rpm
Max RCF 9100xg
Capacity 250mlx4
Speed Control Accuracy ± 30 rpm
Temperature Range (℃ ) -5 to +35℃
Temperature Accuracy (℃ ) ±1℃
Timer 1 to 99min
External Dimemsions (HxLxW) mm 460x710x420 mm
Net Weight (kg) 80 kg
Shipping Dimensions (HxLxW) mm 580x730x520 mm
Electrical Requirements AC110/50Hz, 5A
Catalogue No. 1401351001

                                  Model

IBLC-2050

IBLC-2080

Capacity

15mlx32

250mlx4

Max RCF

4390xg

9100xg

Speed Range

5000 rpm

8000 rpm

Noise

<65dB(A)

Temperature Range

-5 to +35℃

Revolutions/min

± 30 rpm

Temperature Accuracy

±1℃

 Timer

1 to 99min

Dimension

460x710x420 mm

Packing Dimension

580x730x520 mm

Weight

80 kg

Electrical Requirement

AC110/50Hz, 5A

220V/60Hz 5A

AC110/50Hz, 5A

220V/60Hz 5A

Catalogue No.

1401350501

1401350502

1401351001

1401351002
