Home >> ProductsProducts by CategoryCentrifugesBenchtop High Speed Centrifuge IBHC-4700
View larger
Catalogue number : 1401552002

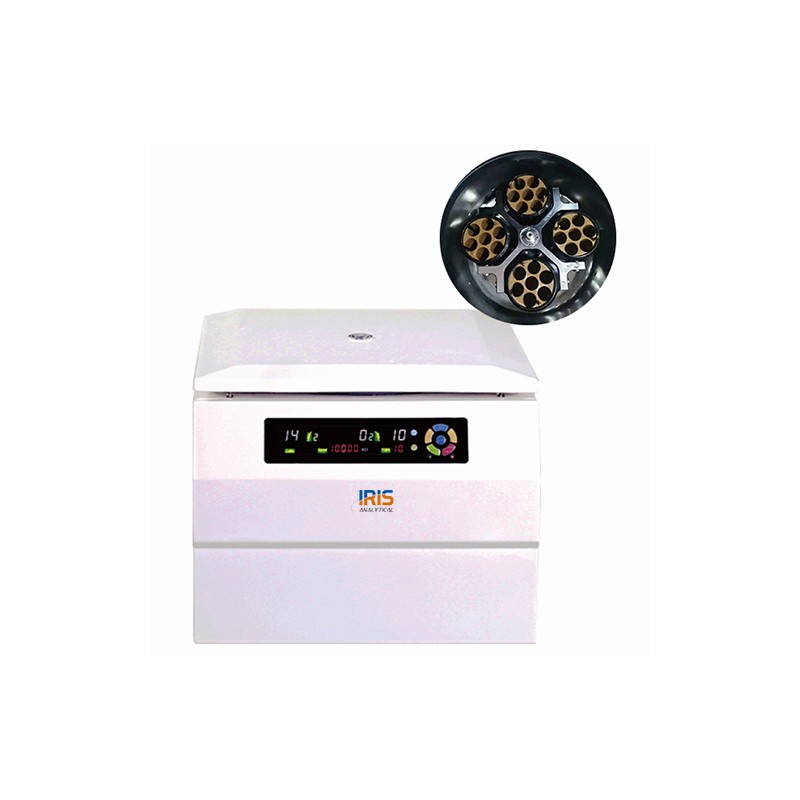

Benchtop High Speed Centrifuge IBHC-4700 small footprint and compact centrifuge of capacity from 12×5ml to 4×750ml with maximum speed ranging 21000 rpm.
- Product Information
- Features
- Specifications
- Technical Data
- Downloads
Benchtop High Speed Centrifuge IBHC-4700 small footprint and compact centrifuge of capacity from 12×5ml to 4×750ml with maximum speed ranging 21000 rpm. Features with digital LCD/LED screen to show parameters including running time, speed, RCF. Available with 10 profiles for acceleration and for deceleration with high efficiency. For safety we introduced electronic door lock function and, imbalance detection, over-speed protection, inching function, short-spin function. Storages up to 15 groups of programming space and accommodates angle rotor, Swing Rotor, Enzyme labelled plate rotor for 2×2×48 wells, Bucket, and PCR tubes.
Applications:
- Ethanol precipitated nucleic acid PCR experiment, phenol chloroform extraction from virus and bacteria samples.
- Cell homogenization followed by fractioning centrifuge.
- PCR product purification.
Accessories
Rotors
|
Model |
IBHC-4100 |
IBHC-4300 |
IBHC-4500 |
IBHC-4700 |
|
Rotor |
Angle Rotor 1:12/16×1.5/2.2ml; 16500rpm/18360×g Angle Rotor 2:12×10ml; 12000rpm/14800×g Angle Rotor 3:6×50ml/round bottom; 11000rpm/ 12840×g |
Angle Rotor 1:12/16×1.5/2.2ml; 18500rpm/23900×g Angle Rotor 2:18×0.5ml; 16000rpm/16000×g Angle Rotor 3:10/12×5ml; 15000rpm/15940×g Angle Rotor 4:24×1.5/2.2ml; 14000rpm/18757×g Angle Rotor 5:12×10ml; 13000rpm/17370×g Angle Rotor 6:12×15ml /sharp bottom,; 10000rpm/9690×g Angle Rotor 7:4×100ml; 10000rpm/9690×g Angle Rotor 8:6×50ml/round bottom; 12000rpm/15285×g Angle Rotor 9:6×50ml/sharp bottom; 11000rpm/12840×g |
Rotor 1:12×1.5ml; 20000rpm/26800×g Rotor 2:16×1.5/2.2ml;18000rpm/23900×g Rotor 3:18×0.5ml; 16500rpm/17000×g Rotor 4:10×5ml; 16000rpm/ 17420×g Rotor 5:24×1.5/2.2ml; 15000rpm/21532×g Rotor 6:12×10ml; 14000rpm/19640×g Rotor 7:2×8×0.2ml PCR; 13500rpm/13880×g Rotor 8:6×50ml/round bottom; 13000rpm/17940×g Rotor 9:6×50ml/sharp bottom; 12000rpm/15450×g Rotor 10:8×50ml; 11000rpm/13450×g Rotor 11:12×15ml; 10000rpm/9690×g Rotor 12:4×100ml; 10000rpm/9690×g Bucket: 16×10ml; 4200rpm/3100×g Enzyme labelled plate rotor:2×2×48 wells; 4200rpm/1900×g |
Angle Rotor 1:12×1.5/2.2ml; 21000rpm/30642×g Angle Rotor 2:16×1.5/2.2ml; 20000rpm/30230×g Angle Rotor 3:18×0.5ml; 18000rpm/20200×g Angle Rotor 4: 10/12×5ml; 18000rpm/20800×g Angle Rotor 5:24×1.5/2.2ml; 16000rpm/23200×g Angle Rotor 6:12×10ml; 15000rpm/23120×g Angle Rotor 7:12×15ml /Sharp bottom; 10000rpm/9690×g Angle Rotor 8:6×50ml/Round bottom; 14000rpm/19885×g Angle Rotor 9:6×50ml/Sharp bottom; 13000rpm/18065×g Angle Rotor 10:2×8×0.2ml PCR Tube; 13500rpm/13880×g Angle Rotor 11:4×8×0.2ml PCR Tube; 13000rpm/13800×g Angle Rotor 12:8×50ml; 12000rpm/16000×g Angle Rotor 13:4×100ml; 11000rpm/13000×g Angle Rotor 14:6×100ml; 10000rpm/11960×g Swing Rotor 1:4×750ml; 4200rpm/3950×g Swing Rotor 2:4×500ml; 4200rpm/3950×g Swing Rotor 3:96×5/7ml; 4200rpm/3950×g Swing Rotor 4:4×250ml; 4200rpm/3850×g Swing Rotor 5:6×250ml; 4200rpm/3850×g Swing Rotor 6:4×50/100ml; 5000rpm/4390×g Swing Rotor 7:8×50/100ml; 4200rpm/3100×g Swing Rotor 8:16×10/15ml; 4200rpm/3100×g Swing Rotor 9:24×10/15ml; 4200rpm/3100×g Swing Rotor 10:32×10/15ml; 4200rpm/3100×g Elisa plate rotor 1:4×2×96 Hole;4200rpm/3910×g Elisa plate rotor 2:2×2×96 Hole; 4200rpm/2530×g Elisa plate rotor 3:2×2×48 Hole; 4200rpm/1900×g |
- Energy efficient AC brushless regulating motor
- Available with 10 profile for acceleration and 10 for deceleration, high efficiency
- New high torque frequency conversion driving motor
- Allow automatic identification system for magnetic rotor, automatic matching of corresponding rotor program, preventing misoperation and ensuring centrifugal safety
- Electronic door lock, full steel door cover protection, superior to industrial standards and Password lock function
- Microcomputer controlled
- Protective electronic with lock door, electric door with imbalance protection to provide more protection and safety along with automatic balancing without the need for trimming
- Designed digital LED screen with multi-functional knob combination
- Eco friendly with high efficiency refrigerating system, able to maintain temperature under 0℃ during maximum RPM
- Centrifugal chamber are constructed with stain less steel
- Designed with air exhaust temperature and low noise compressor
- CFC-free refrigerants, refrigerating/heating double loop
- Small foot print and easy handling
- Store up to 12 program groups, 99 use records and fault records can be traced, using hours & minutes and minutes & seconds two timing options
| Model | IBHC-4700 |
| Speed Range (rpm) | 21000 rpm |
| Max RCF | 30642×g |
| Capacity | 4×750ml |
| Timer | 1 to 99 min |
| External Dimemsions (HxLxW) mm | 560×460×400 mm |
| Net Weight (kg) | 45 kg |
| Gross Weight (kg) | 50 kg |
| Shipping Dimensions (HxLxW) mm | 640×530×470 mm |
| Power | 750 W |
| Electrical Requirements | AC 220±22V 50/60Hz 10A |
| Catalogue No. | 1401552002 |
|
Model |
IBHC-4100 |
IBHC-4300 |
IBHC-4500 |
IBHC-4700 |
|
Capacity |
6×50ml |
4×100ml |
4×100ml |
4×750ml |
|
Max RCF |
18360×g |
23900×g |
26800×g |
30642×g |
|
Speed Range |
16500 rpm |
18500 rpm |
20000 rpm |
21000 rpm |
|
Noise |
≤ 65dB（A） |
< 60dB（A） |
≤ 65dB（A） |
|
|
Rotor Diameter |
250 mm |
320 mm |
320 mm |
420 mm |
|
Revolutions/min |
±20 rpm |
|||
|
Timer |
1 to 99 min |
|||
|
Power Consumption |
420 W |
500 W |
450 W |
750 W |
|
Dimension |
400×300×330 mm |
440×360×330 mm |
440×360×330 mm |
560×460×400 mm |
|
Packing Dimension |
410×310×360 mm |
545×430×395 mm |
510×460×460 mm |
640×530×470 mm |
|
Net Weight |
23 kg |
28 kg |
30 kg |
45 kg |
|
Gross Weight |
30 kg |
35 kg |
35 kg |
50 kg |
|
Electrical Requirement |
AC 220±22V 50/60Hz 5A |
AC 220±22V 50Hz 10A |
||
|
Catalogue No. |
1401550502 |
1401551002 |
1401551502 |
1401552002 |
