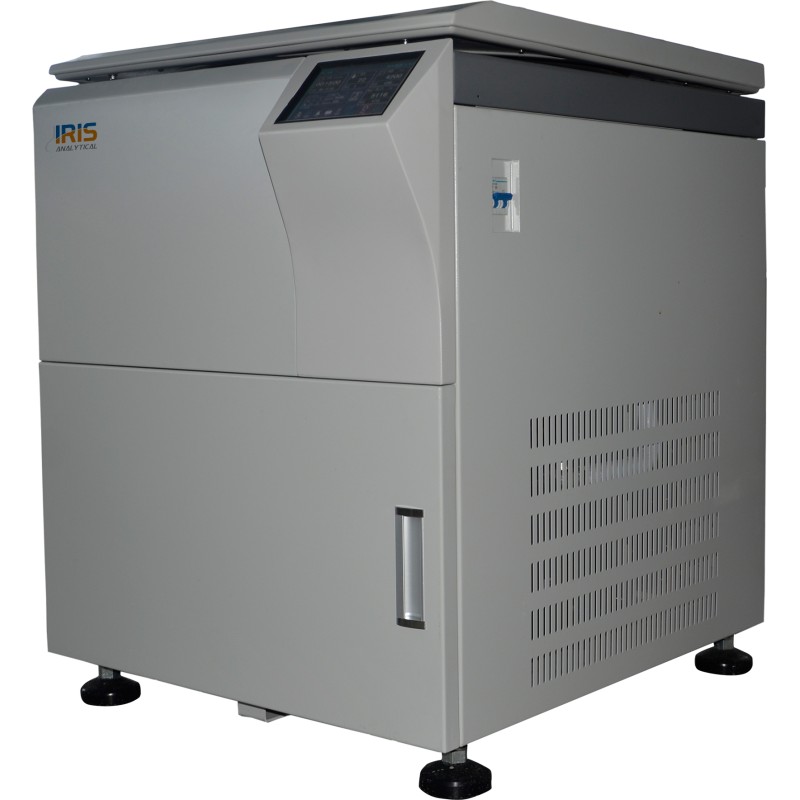

Floor Standing Large Capacity Refrigerated Centrifuge IFLRC-4000
Floor Standing Large Capacity Refrigerated Centrifuge IFLRC-4000

Catalogue number : 1402550502

Floor Standing Large Capacity Refrigerated Centrifuge IFLRC-4000  build for large-volume daily-working methods such as high-throughput sample research work. User can changed the parameters during operating mode. Angle rotor and swing rotor are available for

$5,000.00 tax excl.


Availability : 3-4 Weeks

Availability : Availability : 3-4 Weeks

  • Product Information
  • Features
  • Specifications
  • Technical Data
  • Downloads

Floor Standing Large Capacity Refrigerated Centrifuge IFLRC-4000  build for large-volume daily-working methods such as high-throughput sample research work. User can changed the parameters during operating mode. Angle rotor and swing rotor are available for separation of cells suspension. Multi used and bulk size centrifuge is best for high-throughput clinical, medical and research applications. There are 9 profiles available for acceleration and 9 for deceleration; user can select these profiles by the main display and worked with temperature up to -20 to +30℃ . Featuring with LCD display with dual synchronous display screen and design with double lock door, electric door with magnetic locks, to provide more protection and safety and adaptors as optional accessories. Driven by a microprocessor, AC frequency conversion motor drive, and quiet operation clean.



Rotors

Rotor

Capacity

Max speed

RCF

Swing rotor

6 X 2400 ml

4000rpm

5602xg

Angel rotor

6 X 500 ml

8000rpm

11068xg

  • For up to 8000 rpm of total capacity 6 X 2400 ml
  • Available with 9 profile for acceleration and 9 for deceleration, high efficiency
  • New high torque frequency conversion driving motor
  • Allow automatic identification system for magnetic rotor, automatic matching of corresponding rotor program, preventing misoperation and ensuring centrifugal safety
  • Electronic door lock, full steel door cover protection, superior to industrial standards and Password lock function
  • Microcomputer controlled
  • Protective electronic with lock door, electric door with imbalance protection to provide more protection and safety along with automatic balancing without the need for trimming
  • Designed digital LCD screen with multi-functional knob combination
  • Eco friendly with high efficiency refrigerating system, able to maintain temperature under 0℃ during maximum RPM
  • Centrifugal chamber are constructed with stain less steel
  • Designed with air exhaust temperature and low noise compressor
  • CFC-free refrigerants, refrigerating/heating double loop
  • Store up to 20 program groups
Model IFLRC-4000
Speed Range (rpm) 8000 rpm
Max RCF 11068xg
Capacity 6 X 2400 ml
Temperature Range (℃ ) -20 to +30℃
Temperature Accuracy (℃ ) ±2℃
Timer 1 to 99h, 99m, 59s
External Dimemsions (HxLxW) mm 1080x840x960 mm
Net Weight (kg) 450 kg
Electrical Requirements AC 220V 50Hz
Catalogue No. 1402550502

Model

IFLRC-4000

Capacity

6 X 2400 ml

Max RCF

11068xg

Speed Range

8000 rpm

Noise

 ≤60dB

Temperature Range

 -20 to +30℃

Revolutions/min

±10 rpm

Temperature Accuracy

±2℃

 Timer

1 to 99h, 99m, 59s

Power Consumption

2.0 KVA

Dimension

1080x840x960 mm

Weight

450 kg

Electrical Requirement

AC 220V 50Hz

Catalogue No.

1402550502
