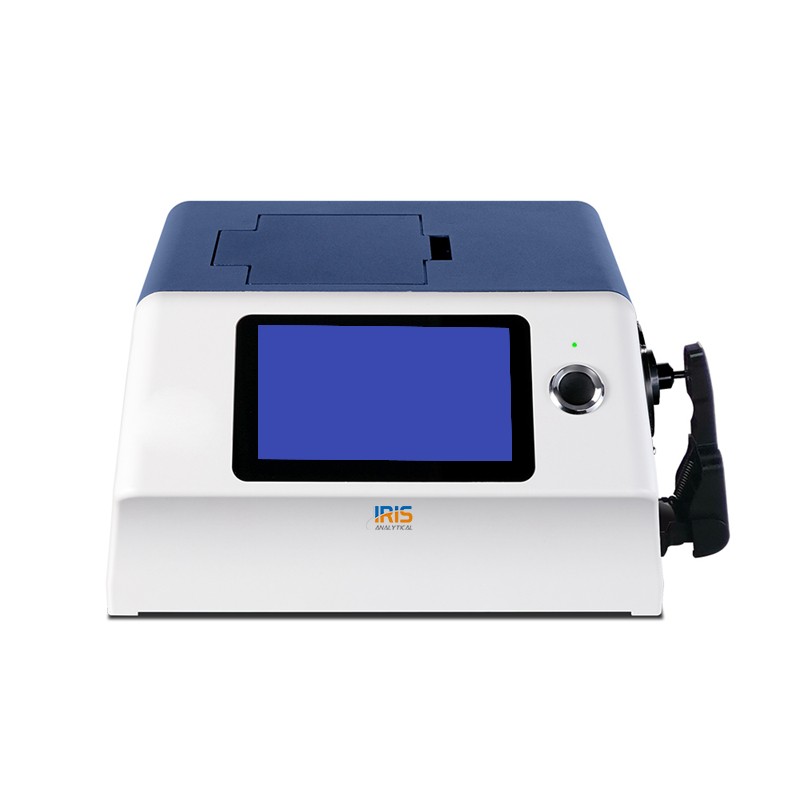

Home >> ProductsProducts by CategoryColour & Appearance Testing InstrumentsReflectance/Transmittance Spectrophotometer IRTS-2500
View larger
Catalogue number : 1501555-04
Reflectance/Transmittance Spectrophotometer IRTS-2500 design with holographic grating (concave grating) that delivers high diffraction efficiency, low stray light. It allows the generation of asymmetric and symmetric groove profiles.
- Product Information
- Features
- Technical Data
- Downloads
Reflectance/Transmittance Spectrophotometer IRTS-2500 design with holographic grating (concave grating) that delivers high diffraction efficiency, low stray light. It allows the generation of asymmetric and symmetric groove profiles.
A new 360-780 nm wavelength for the color analysis and transmission in laboratories, industries, such as plastics, electronics, paint and ink, printing, garments, leather, paper, auto, medical, cosmetics, food, research institutes. Compatible with both full illuminates, reflective d/8, and transmissive d/0 geometry.
Accessories
- Power Adapter
- User Guide
- CD Disk(PC Software)
- USB cable
- Standard Calibration Board
- Black Calibration Cavity
- Transmission black baffle
- Sample holder
- 25.4 caliber, 8 calibers, 4 caliber
- Transmissive Test Component
Optional Accessories
- Micro-printer
- Transmissive Test Component
- Micro Aperture(4mm) transmission test clamp component
- Instrument inversion components
- Build-in high configuration of hardware including 7 inches TFT Color touch display
- A new concave grating for high diffraction efficiency, low stray light
- With dual-array image sensor LED, UV LED
- Suitable for reflective and transmissive spectrum, for exact and accurate result,
- Different aperture are fixed for different function: auto-identify measuring aperture, switchable between 4 measuring apertures: 25.4 mm/15 mm/8 mm/4 mm. along with customizing apertures as per user need
- Built-in temperature sensor to monitor and compensate the measuring temperature to ensure the measurement more precise.
- Wavelength range 360 to 780 nm
- Built-in 400nm cut off/460nm cut off (only xenon lamp edition), more professional in UV measurement.
- Independent light source detector, continuously monitor the condition of light sources to ensure the light source reliable.
- Provide multiple measurement modes including quality management mode, sample mode
- Used to store large data files up to 20000 pieces test result
- Built-in camera locating
- More powerful extended functions at the PC software.
|
Model |
IRTS-2500 |
|
Wavelength |
360 to 780 nm |
|
Geometry |
Reflect: di:8°, de:8, Transmittance: di:0°, de:0 |
|
Display |
7-inch TFT color LCD, Capacitive Touch Screen |
|
Measuring Aperture |
Reflective : 30mm/25.4mm, 10mm/8mm, 6mm/4mm; Transmissive : 30mm/25mm; |
|
Function |
Automatic identification of switch caliber, Customized Configuration caliber and lens position |
|
Detector |
256 Image Element Double Array CMOS Image Sensor |
|
Repeatability |
Spectral reflectance: 25.4mm/SCI, Standard deviation within 0.07% (400 nm to 700 nm: within 0.06%) Chromaticity value: 25.4mm/SCI, Standard deviation within ΔE*ab 0.015 Spectral Transmittance: 25.4mm/SCI, Standard deviation within 0.07% (400 nm to 700 nm: within 0.07%) Chromaticity value: 25.4mm/SCI, Standard deviation within ΔE*ab 0.018 |
|
Wavelength Interval |
10nm |
|
Illuminant |
D65,A,C,D50,D55,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12 |
|
Spectrophotometric Mode |
Concave Grating |
|
Index |
WI (ASTM E313, CIE/ISO, AATCC,YI (ASTM D1925, ASTM 313), TI (ASTM E313, CIE/ISO), MI (Metamerism Index), Staining Fastness, Color Fastness, Color Strength, Opacity, 8° Glossiness,Gardner Index, Pt-Co Index, 555 Index, Haze(ASTM D1003) |
|
Color Difference |
ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter), DIN ΔE99 |
|
Reflectance Range |
0-200% |
|
Light Source |
360 nm to 780 nm, Combined LED Light, 400nm cut-off light source |
|
Observer |
2° & 10° |
|
Display Data |
Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset |
|
Operating Temperature |
0 to 40℃ |
|
Storage Temperature |
-20 to 50℃ |
|
Humidity |
0 to 85%RH |
|
Interface |
USB & Print serial port |
|
Storage |
Standard 2000 Pcs, Sample 20000 Pcs |
|
Dimensions |
370x300x200mm |
|
Weight |
Approx. 9.6kg |
|
Electrical Requirement |
DC 24V, 3A Power Adapter |
|
Catalogue No. |
1501555-04 |
