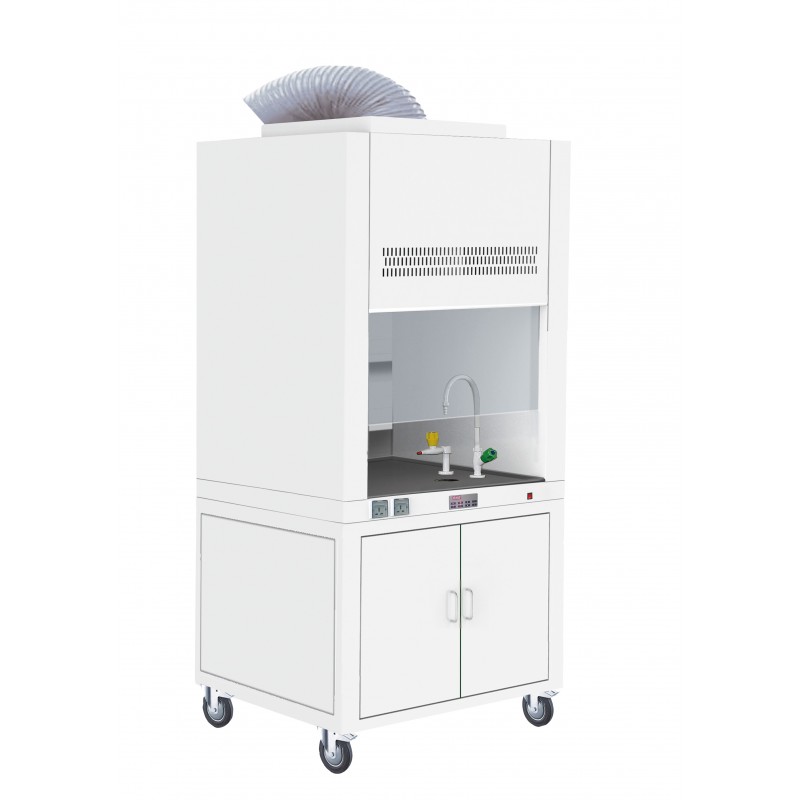

Fume Hood FHT-1300

Catalogue number : FHT-1300

$2,600.00 tax excl.

Availability : 2 - 3 weeks

Add to Quote

Add to wishlist

The FHT-1000 Series Fume Hood is used to protect lab environment and operator during general chemical applications. It actively protects operator from inhaling toxic vapors and dramatically reduces the risk of fire and explosion. By installing proper filter, it can also protect environment.

UV lamp for sterilization.
Built-in centrifugal blower.
Motorized front glass window.
Adjustable air speed: 9 levels.
Microprocessor control system, LED display.
Double-layer structure: 1.2 mm sheet metal surface, melamine board inward.

LED Display:

Digital LED display: Airflow Level

LED Display

Water & Gas Tap Water Sink

UV Lamp

Emission of 253.7 Nanometers for most efficient decontamination.

Double Layers

1.2mm sheet metal surface, melamine board inward.

Double Layers

Operators are available to walk into the fume hood to operator if needed.
Large room exhaust system, suitable for large laboratory instruments and equipment.

Model	FHT-1300
Internal Size （WDH） mm	820620750mm
Capacity (liters)	380
External Size (WDH) cm	10007502320mm
Max Opening (cm)	520mm
Front Window	5mm toughened glass; Motorized; Height adjustable
Noise	62dB
UV Lamp	Emission of 253.7 nanometers for most efficient decontamination
Fluorescent Lamp	14W*1
Display	LED Display
Exhaust Duct	Φ300mm PVC, Standard length: 4 meters
Material	Exterior: Cold-rolled steel with anti-bacteria powder coating. Interior: High grade melamine board with good acid and alkali resistance function Work Table: Solid chemical resistant phenolic resin
Power Supply	220V/ 50Hz; 220V/ 60Hz; 110V/60Hz
Standard Accessories	UV lamp*2, Fluorescent lamp, Water tap, Gas tap, Water sink, Base cabinet, Pipe strap. Total load of 2 waterproof sockets: 500W 4 meters PVC exhaust duct
Gross Weight	272kg
Shipping Dimensions (WDH) cm	Main Body: 11509001870 mm Base Cabinet: 1150900960mm
Exhaust Blower	Built-in centrifugal blower; Speed adjustable
Electrical Requirements	220V/50Hz
Consumption	400W
Airflow Velocity (m/s)	0.3~0.8m/s

Model		FHT-1300		FHT-1500		FHT-1600		FHT-1800
External Size (WDH) mm		10007502320mm		12008002345mm		15008002345mm		18008002345mm
Internal Size (WDH) mm		820620750mm		1020670750mm		1320670750mm		1620670750mm
Internal Size (WDH) mm		381		512		663		814
Work Surface Height (mm)		850mm
Max Opening (mm)		520mm		570mm		570mm		570mm
Air Velocity (m/s)		0.3~0.8m/s
Protection Class		Class I
Protection Type		IP 20
Noise		≤60dB
Exhaust Duct		PVC, Standard length: 4 meters.
		Φ300mm
Pipe Strap		1 pc
Fluorescent Lamp		14W*1		21W*1		28W*1		36W*1
UV Lamp		Emission of 253.7 nanometers for most efficient decontamination
Blower		Built-in centrifugal blower; Speed adjustable.
Front Window		5mm toughened glass; Motorized; Height adjustable.
Power Supply		220V/ 50Hz; 220V/ 60Hz; 110V/60Hz
Consumption		400W		400W		500W		500W
Material	Exterior	Cold-rolled steel with anti-bacteria powder coating.
	Interior	High grade melamine board with good acid and alkali resistance function
	Work table	Solid chemical resistant phenolic resin
Standard Accessories		UV lamp*2, Fluorescent lamp, Water tap, Gas tap, Water sink, Base cabinet, Pipe strap.
		Total load of 2 waterproof sockets: 500W
		4 meters PVC exhaust duct
Optional Accessories		Active carbon filter
Gross Weight (kg)		272kg		302kg		331kg		366kg
Package Dimensions (mm)	Main Body	11509001870 mm		13509501920mm		16509501890mm		19509501900mm
	Base Cabinet	1150900960mm		1350950900mm		1650960910mm		1950960910mm
Electrical Requirements		110V	220V	110V	220V	110V	220V	110V	220V
Catalogue No.

Model	Image	Name	Product Detail	Availability	Price	Action
		LED Display for Fume Hoods	LED Display Digital LED display: Airflow Level		$145.00	Add to cart
		Water & Gas Tap, Water Sink for Fume Hoods	Water & Gas Tap, Water Sink		Price On Request	Add to cart
		Foot switch for Fume Hoods	Use foot switch to adjust the height of front window		$20.00	Add to cart
		Observation Window for Fume Hoods	Transparent side glass windows maximize light and visibility inside the cabinet		Price On Request	Add to cart
		Back Side Air Compensation for Fume Hoods	Back Side Air Compensation: To avoid turbulence in work area		Price On Request	Add to cart
		Water & Gas Remote Control for Fume Hoods	Water & Gas Remote Control		Price On Request	Add to cart
		Water Sink for Fume Hoods	Water Sink		Price On Request	Add to cart
		Waterproof Socket for Fume Hoods	Waterproof Socket		Price On Request	Add to cart
		UV Lamp for Fume Hoods	UV Lamp		Price On Request	Add to cart
		PP Sink for Fume Hoods	PP sink		Price On Request	Add to cart
