Home >> ProductsProducts by CategoryFume HoodsFume Hood FHT-1600
View larger
Catalogue number : FHT-1600

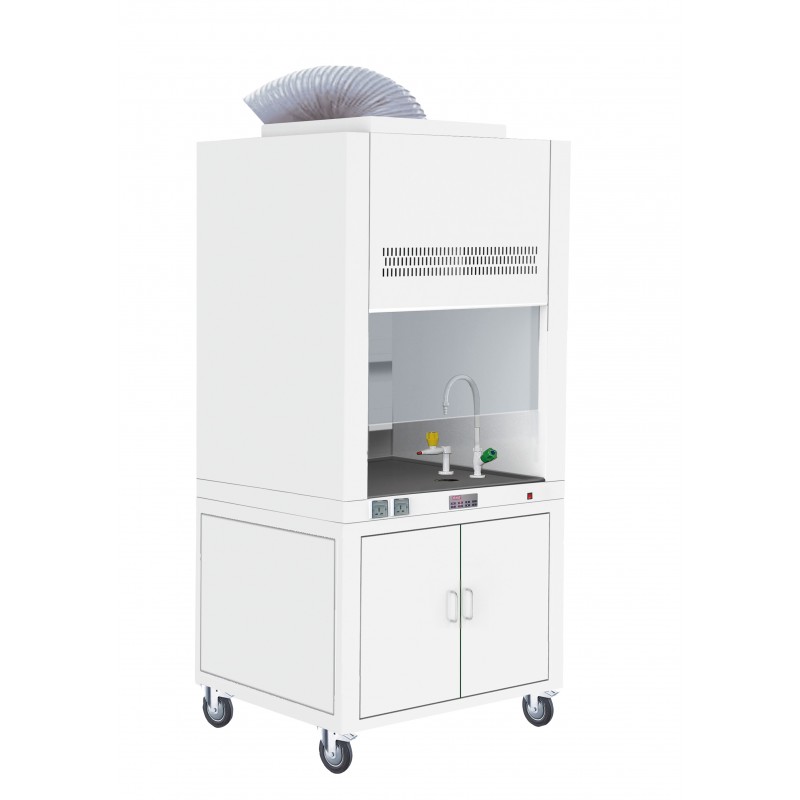

The FHT-1600 Fume Hood is used to protect lab environment and operator during general chemical applications. It actively protects operator from inhaling toxic vapors and dramatically reduces the risk of fire and explosion. By installing proper filter, it can also protect environment.
- Product Information
- Features
- Specifications
- Technical Data
- Accessories
- Downloads
The FHT-1600 Fume Hood is used to protect lab environment and operator during general chemical applications. It actively protects operator from inhaling toxic vapors and dramatically reduces the risk of fire and explosion. By installing proper filter, it can also protect environment.
- UV lamp for sterilization.
- Built-in centrifugal blower.
- Motorized front glass window.
- Adjustable air speed: 9 levels.
- Microprocessor control system, LED display.
- Double-layer structure: 1.2 mm sheet metal surface, melamine board inward.
LED Display:
Digital LED display: Airflow Level
Water & Gas Tap Water Sink
UV Lamp
Emission of 253.7 Nanometers for most efficient decontamination.
Double Layers
1.2mm sheet metal surface, melamine board inward.
- Operators are available to walk into the fume hood to operator if needed.
- Large room exhaust system, suitable for large laboratory instruments and equipment.
| Model | FHT-1300 |
| Internal Size （W*D*H） mm | 1020*670*750mm |
| Capacity (liters) | 510 |
| External Size (W*D*H) cm | 1200*800*2345mm |
| Max Opening (cm) | 570mm |
| Front Window | 5mm toughened glass; Motorized; Height adjustable |
| Noise | ≤60dB |
| UV Lamp | Emission of 253.7 nanometers for most efficient decontamination |
| Fluorescent Lamp | 28W*1 |
| Display | LED Display |
| Exhaust Duct | Φ300mm PVC, Standard length: 4 meters |
| Material | Exterior: Cold-rolled steel with anti-bacteria powder coating. Interior: High grade melamine board with good acid and alkali resistance function Work Table: Solid chemical resistant phenolic resin |
| Work Surface Height | 850mm |
| Power Supply | 220V/ 50Hz; 220V/ 60Hz; 110V/60Hz |
| Standard Accessories | UV lamp*2, Fluorescent lamp, Water tap, Gas tap, Water sink, Base cabinet, Pipe strap. Total load of 2 waterproof sockets: 500W 4 meters PVC exhaust duct |
| Gross Weight | 331kg |
| Shipping Dimensions (W*D*H) cm | Main Body: 1650*950*1890mm Base Cabinet: 1650*960*910mm |
| Exhaust Blower | Built-in centrifugal blower; Speed adjustable |
| Electrical Requirements | 220V/50Hz |
| Consumption | 400W |
| Airflow Velocity (m/s) | 0.3~0.8m/s |
|
Model |
FHT-1300 |
FHT-1500 |
FHT-1600 |
FHT-1800 |
|||||
|
External Size (W*D*H) mm |
1000*750*2320mm |
1200*800*2345mm |
1500*800*2345mm |
1800*800*2345mm |
|||||
|
Internal Size (W*D*H) mm |
820*620*750mm |
1020*670*750mm |
1320*670*750mm |
1620*670*750mm |
|||||
|
Internal Size (W*D*H) mm |
381 |
512 |
663 |
814 |
|||||
|
Work Surface Height (mm) |
850mm |
||||||||
|
Max Opening (mm) |
520mm |
570mm |
570mm |
570mm |
|||||
|
Air Velocity (m/s) |
0.3~0.8m/s |
||||||||
|
Protection Class |
Class I |
||||||||
|
Protection Type |
IP 20 |
||||||||
|
Noise |
≤60dB |
||||||||
|
Exhaust Duct |
PVC, Standard length: 4 meters. |
||||||||
|
Φ300mm |
|||||||||
|
Pipe Strap |
1 pc |
||||||||
|
Fluorescent Lamp |
14W*1 |
21W*1 |
28W*1 |
36W*1 |
|||||
|
UV Lamp |
Emission of 253.7 nanometers for most efficient decontamination |
||||||||
|
Blower |
Built-in centrifugal blower; Speed adjustable. |
||||||||
|
Front Window |
5mm toughened glass; Motorized; Height adjustable. |
||||||||
|
Power Supply |
220V/ 50Hz; 220V/ 60Hz; 110V/60Hz |
||||||||
|
Consumption |
400W |
400W |
500W |
500W |
|||||
|
Material |
Exterior |
Cold-rolled steel with anti-bacteria powder coating. |
|||||||
|
Interior |
High grade melamine board with good acid and alkali resistance function |
||||||||
|
Work table |
Solid chemical resistant phenolic resin |
||||||||
|
Standard Accessories |
UV lamp*2, Fluorescent lamp, Water tap, Gas tap, Water sink, Base cabinet, Pipe strap. |
||||||||
|
Total load of 2 waterproof sockets: 500W |
|||||||||
|
4 meters PVC exhaust duct |
|||||||||
|
Optional Accessories |
Active carbon filter |
||||||||
|
Gross Weight (kg) |
272kg |
302kg |
331kg |
366kg |
|||||
|
Package Dimensions (mm) |
Main Body |
1150*900*1870 mm |
1350*950*1920mm |
1650*950*1890mm |
1950*950*1900mm |
||||
|
Base Cabinet |
1150*900*960mm |
1350*950*900mm |
1650*960*910mm |
1950*960*910mm |
|||||
|
Electrical Requirements |
110V |
220V |
110V |
220V |
110V |
220V |
110V |
220V |
|
|
Catalogue No. |
|
|
|
|
|
|
|
|
|
| Model | Image | Name | Product Detail | Availability | Price | Action |
|
LED Display for Fume Hoods |
LED Display Digital LED display: Airflow Level |
$145.00 | |||
|
Water & Gas Tap, Water Sink for Fume Hoods |
Water & Gas Tap, Water Sink |
|
|||
|
Foot switch for Fume Hoods |
Use foot switch to adjust the height of front window |
$20.00 | |||
|
Observation Window for Fume Hoods |
Transparent side glass windows maximize light and visibility inside the cabinet |
|
|||
|
Back Side Air Compensation for Fume Hoods |
Back Side Air Compensation: To avoid turbulence in work area |
|
|||
|
Water & Gas Remote Control for Fume Hoods |
Water & Gas Remote Control |
|
|||
|
Water Sink for Fume Hoods |
Water Sink |
|
|||
|
Waterproof Socket for Fume Hoods |
Waterproof Socket |
|
|||
|
UV Lamp for Fume Hoods |
UV Lamp |
|
|||
|
PP Sink for Fume Hoods |
PP sink |
|
