Home >> ProductsProducts by CategoryFume HoodsFume Hood FHP-1300
View larger
Catalogue number : FHP-1300

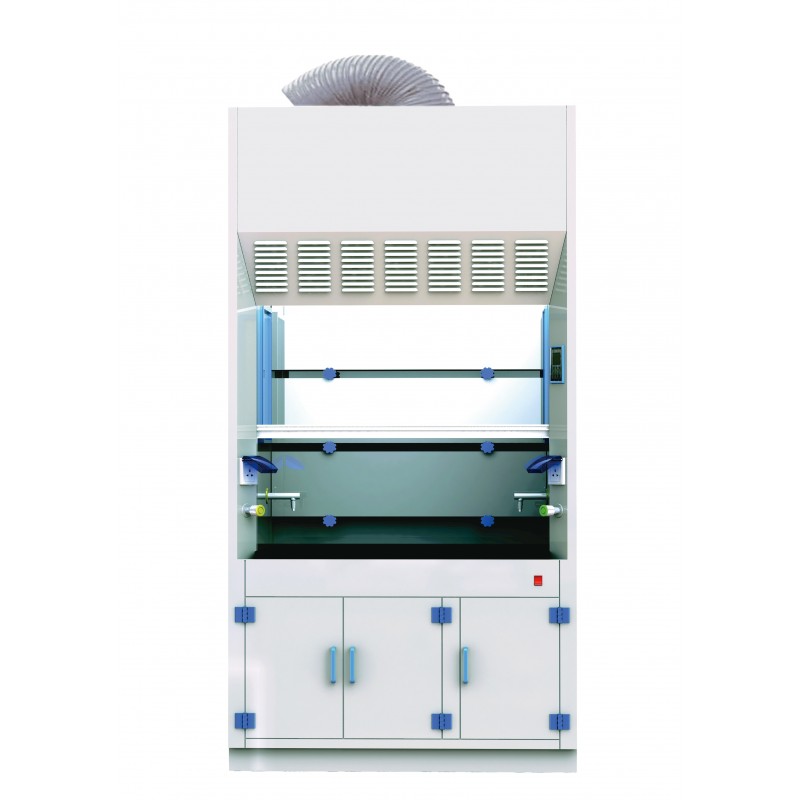

The FHP-1300 Fume Hood is used to protect lab environment and operator during general chemical applications. It actively protects operator from inhaling toxic vapours and dramatically reduces the risk of fire and explosion. By installing proper filter, it can also protect environment.
- Product Information
- Specifications
- Technical Data
- Accessories
- Downloads
The FHP-1300 Fume Hood is used to protect lab environment and operator during general chemical applications. It actively protects operator from inhaling toxic vapours and dramatically reduces the risk of fire and explosion. By installing proper filter, it can also protect environment.
- It is safer to use anti-corrosive water tap.
- Microprocessor control system, LCD display
- Made of porcelain white PP, resistant to strong acid, alkali and anti-corrosion.
- Front window which is made of thick transparent toughened glass maximize light and visibility inside the fume hood, providing a bright and open working environment.
LCD Display
Waterproof Socket
PP sink
Resistant strong acid, alkali and anti-corrosion
Water & Gas Remote Control Valve
| Model | FHP-1300 |
| Internal Size （W*D*H） mm | 820*520*872mm |
| Capacity (liters) | 370 |
| External Size (W*D*H) cm | 1040*750*2200mm |
| Max Opening (cm) | 815mm |
| Front Window | Manual, 5mm toughened glass, height adjustable |
| Noise | ≤60dB |
| UV Lamp | Emission of 253.7 nanometers for most efficient decontamination |
| Fluorescent Lamp | 12W*1 |
| Display | LED Display |
| Exhaust Duct | Φ300mm PVC, Standard length: 4 meters |
| Material | Made of Porcelain white PP, thickness 8mm, resistant to strong acid, alkali and anti-corrosion Chemical resistant phenolic resin |
| Work Surface Height | 700mm |
| Power Supply | 220V/ 50Hz; 220V/ 60Hz; 110V/60Hz |
| Standard Accessories | Fluorescent lamp, Water tap, Gas tap, Water Sink, Base cabinet Waterproof socket*2 4 meter PVC duct, Diameter:250mm |
| Optional Accessories | PP work table, epoxy resin board or ceramic board. Outer centrifugal blower, resistant to strong acid, alkali. |
| Gross Weight | 160kg |
| Shipping Dimensions (W*D*H) cm | Main Body: 1110*835*1575 mm Base Cabinet: 1110*790*950 mm |
| Exhaust Blower | Built-in axial flow blower; Speed adjustable |
| Electrical Requirements | 220V/50Hz |
| Consumption | 330W |
| Airflow Velocity (m/s) | 0.4~0.6m/s |
|
Model |
FHP-1300 |
FHP-1500 |
FHP-1600 |
FHP-1800 |
|||||
|
External Size (W*D*H) |
1040*750*2200mm |
1240*800*2200mm |
1540*800*2200mm |
1840*800*2200 mm |
|||||
|
Internal Size (W*D*H) |
820*520*872mm |
1020*570*872mm |
1320*570*872mm |
1620*570*872 mm |
|||||
|
Capacity (liters) |
371 |
506 |
656 |
805 |
|||||
|
Work Surface Height |
700mm |
||||||||
|
Max Opening |
815mm |
||||||||
|
Air Velocity |
0.4~0.6m/s |
||||||||
|
Noise |
≤60dB |
||||||||
|
Fluorescent Lamp |
12W*1 |
30W*2 |
30W*2 |
30W*2 |
|||||
|
Blower |
Built-in axial flow blower; Speed adjustable. |
||||||||
|
Front Window |
Manual, 5mm toughened glass, height adjustable . |
||||||||
|
Power Supply |
AC220V±10%, 50/60Hz ; 110V±10%, 60Hz |
||||||||
|
Consumption |
330W |
360W |
360W |
360W |
|||||
|
Material |
Main Body |
Made of Porcelain white PP, thickness 8mm, resistant to strong acid, alkali and anti-corrosion |
|||||||
|
Work Table |
Chemical resistant phenolic resin |
||||||||
|
Standard Accessory |
Fluorescent lamp, Water tap, Gas tap, Water Sink, Base cabinet |
||||||||
|
Waterproof socket*2 |
|||||||||
|
4 meter PVC duct, Diameter:250mm |
|||||||||
|
Optional Accessory |
PP work table, epoxy resin board or ceramic board. |
||||||||
|
Outer centrifugal blower, resistant to strong acid, alkali. |
|||||||||
|
Gross Weight |
160kg |
198kg |
225kg |
259kg |
|||||
|
Package Size |
Main Body |
1110*835*1575 mm |
1310*885*1575 mm |
1610*885*1575 mm |
1910*885*1575 mm |
||||
|
Base Cabinet |
1110*790*950 mm |
1310*840*950 mm |
1610*840*950 mm |
1910*840*1575 mm |
|||||
|
Electrical Requirement |
110V |
220V |
110V |
220V |
110V |
220V |
110V |
220V |
|
|
Catalogue No. |
|
|
|
|
|
|
|
|
|
| Model | Image | Name | Product Detail | Availability | Price | Action |
|
LED Display for Fume Hoods |
LED Display Digital LED display: Airflow Level |
$145.00 | |||
|
Water & Gas Tap, Water Sink for Fume Hoods |
Water & Gas Tap, Water Sink |
|
|||
|
Foot switch for Fume Hoods |
Use foot switch to adjust the height of front window |
$20.00 | |||
|
Observation Window for Fume Hoods |
Transparent side glass windows maximize light and visibility inside the cabinet |
|
|||
|
Back Side Air Compensation for Fume Hoods |
Back Side Air Compensation: To avoid turbulence in work area |
|
|||
|
Water & Gas Remote Control for Fume Hoods |
Water & Gas Remote Control |
|
|||
|
Water Sink for Fume Hoods |
Water Sink |
|
|||
|
Waterproof Socket for Fume Hoods |
Waterproof Socket |
|
|||
|
UV Lamp for Fume Hoods |
UV Lamp |
|
|||
|
PP Sink for Fume Hoods |
PP sink |
|
