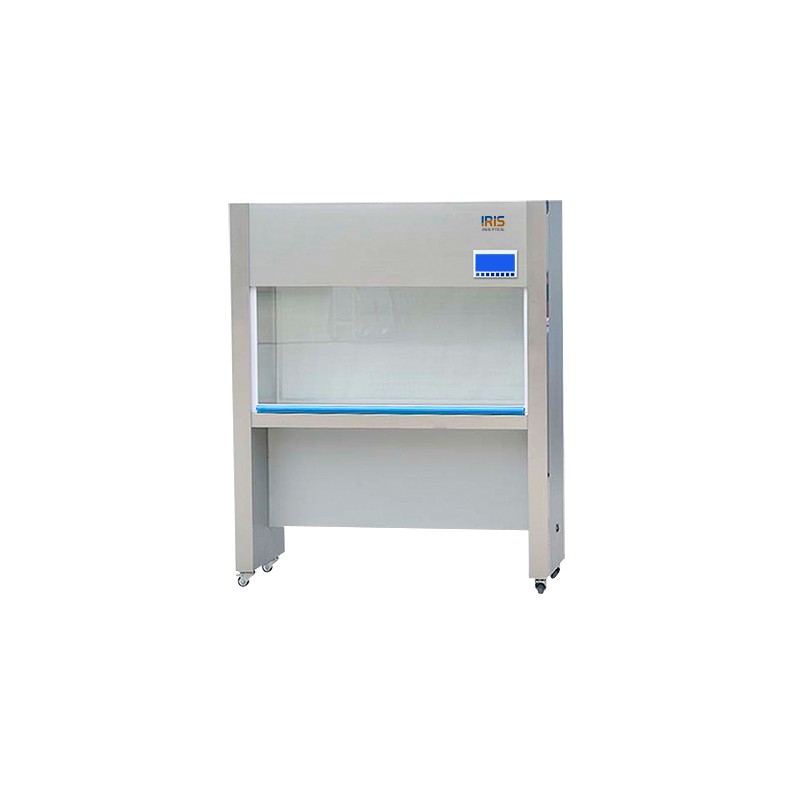

Horizontal Laminar Flow Cabinet LHB-2100
Horizontal Laminar Flow Cabinet LHB-2100

Catalogue number : 380400502

Horizontal Laminar Flow Cabinet LHB-2100 available with configuration  double-single-horizontal cabinet used in medicine, pharmacy, and biological, chemical experiment, operating room, foodstuff, drinks, and cosmetic, stock rising and aviation works.

$3,140.00 tax excl.


Availability : 3-4 Weeks

Availability : Availability : 3-4 Weeks

  • Product Information
  • Features
  • Technical Data
  • Downloads

Horizontal Laminar Flow Cabinet LHB-2100 available with configuration  double-single-horizontal cabinet used in medicine, pharmacy, and biological, chemical experiment, operating room, foodstuff, drinks, and cosmetic, stock rising and aviation works.

The horizontal intense clean bench is a general-purpose workbench, with clean air flow flows from the top to the bottom in the vertical direction.

Accommodates maximum no. of colony rate: ≤0.5per utensil hour (90mm utensil) and air velocity 0.25-0.45m/s. features with HEPA Filter, UV lamp, sliding glass door, ventilating slot, color plate, and LED source.

  • Instrument designed with powerful, low-energy fan and filter modules deliver a back-to-front laminar flow with aids of HEPA filter air across the work surface
  • Furnished with ISO-9001 and grade 100 work zone
  • Suitable for important operations in the medical, biotech, pharmaceuticals, electronics and semiconductor industries
  • Built-in illuminator provides diffused lighting without interfering with laminar flow with value range up to: ≥ 300 Lx
  • This advanced flow cabinet operate with a LED panel
  • Novel structures that maintains outstanding performance with low noise at ≤62 dB(A)
  • Inner surfaces, including the side panels and work surface, are made of 304-stainless steel
  • Come with Single, and double single-horizontal operation mode
  • Bench board are made up of stainless steel and tempered glass side-boar; slim filter without division-plate
  • Horizontal laminar flow with open bench board
  • Digital display with curved arc designed and large open area
  • Accessories: HEPA Filter, UV lamp, sliding glass door, ventilating slot, color plate, and LED source, castors etc.

Model

LHB-2100

LHB-2200

LHB-2300

LHB-2400

Type

Double-Single-Horizontal

Double-Single-Horizontal

Double-Single-Horizontal

Single-Horizontal

Cleanliness

Grade 100

Velocity

0.25-0.45m/s

Material

304  Stainless steel

No. of colony

≤0.5per utensil.hour(90mm utensil)

Noise

≤62dB

Illumination

≥300LX

Light

LED

HEPA filter No. and Size

1135x600x38 mmx1

695X500X38X 1

30W*1/30W*1

695x600x38 mm x1

Power Consumption

300 W

800 W

800 W

400 W

Certification

ISO 9001



Working Area

1150x400x600 mm

1140x550x415 mm

1360x550x620 mm

700x650x620mm

Overall Dimension

1300x580x1600 mm

1300X550X1600 mm

1540x730x1600 mm

880x770x1800 mm

Weight

150 kg

320 kg

320 kg

150 kg

Electrical Requirement

AC, 220 V/50Hz

Catalogue No.

 380400502

 380401002

 380401502

 380402002

download pdf product details
