Catalogue number : 420300501

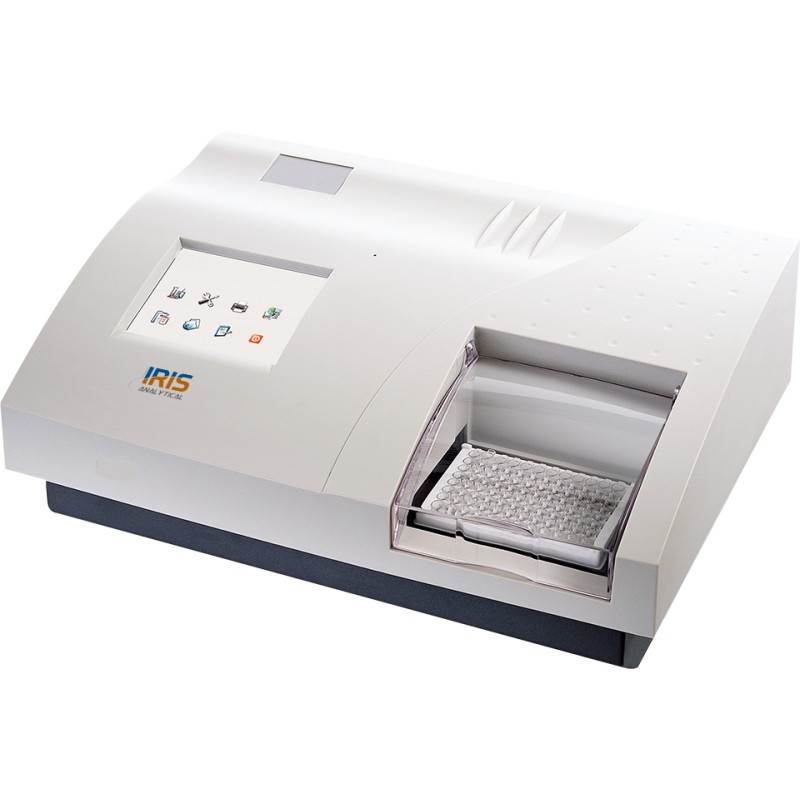

Microplate Reader IMR-5000comes with OSRAM64255 light sources ideal for applications that require accurate positioning, as in the medical and scientific application.
Microplate Reader IMR-5000comes with OSRAM64255 light sources ideal for applications that require accurate positioning, as in the medical and scientific application. An 8-channel manifolds as standard accessories for use with standard 96 wells plates.
Covers the absorbance range 0-3.500A and measured quickly, which is significantly faster than other current microplate reader methods. End Point, fixed time, Kinetic make the IMR-5000 the best platform for any clinical, biotechnology research and pharmaceutical laboratory applications. Can stored up to 100 program, 1000 patient information, 10000 test records in a single unit. Maintain all important measuring parameters including ABS, Cut-Off, Single Standard, Curve, Multi-Percent, Percent Log, Linear, Exponential, Power, and 4PL Regression. A multi-mode reader has several benefits for laboratories applications ranging from ELISAs to nucleic acid and protein quantitation to cell imaging. Together with multiple microplate services and detection modes into a single, more versatile unit may be an ideal choice especially if you have limited area and performed 12 assays in a single plate.
| Model | IMR-5000 |
| Absorbance Range | 0-3.500A |
| Accuracy | 0-2.0A: ±1.0% or ±0.007A |
| Resolution | 0-2.0A: ±0.5% or ±0.005A |
| Light Source | OSRAM64255, 8V/20W |
| Optical filter | 405, 450, 492, 630nm (substitute filters from 400-700nm available on special order) |
| Display | 5.7'' LCD display (320×240 discernibility, 256 gray scale) |
| Storage | 100 program, 1000 patient information, 10000 test data |
| Interface | RS-232C, USB, RJ45, SD interface |
| Dimensions | 460×330×190 mm |
| Weight | 7.5 Kg |
| Electrical Requirement | AC110V/50/Hz |
| Catalogue No. | 420300501 |
|
Model |
IMR-5000 |
|
|
Absorbance Range |
0-3.500A |
|
|
Optical Path |
0-2.000A |
|
|
Accuracy |
0-2.0A: ±1.0% or ±0.007A |
|
|
Resolution |
0-2.0A: ±0.5% or ±0.005A |
|
|
Linearity |
±2.0% or ±0.007A |
|
|
Light Source |
OSRAM64255, 8V/20W |
|
|
Optical filter |
405, 450, 492, 630nm (substitute filters from 400-700nm available on special order) |
|
|
Display |
5.7'' LCD display (320×240 discernibility, 256 gray scale) |
|
|
CPU |
RISC cpu |
|
|
Environment Temperature |
0°C-40°C |
|
|
Humidity |
≤85% |
|
|
Storage |
100 program, 1000 patient information, 10000 test data |
|
|
Interface |
RS-232C, USB, RJ45, SD interface |
|
|
Dimensions |
460(×330×190 mm |
|
|
Weight |
7.5 Kg |
|
|
Electrical Requirement |
AC110V/50/Hz |
220V/60Hz |
|
Catalogue No. |
420300501 |
420300502 |
