Catalogue number : 420350501

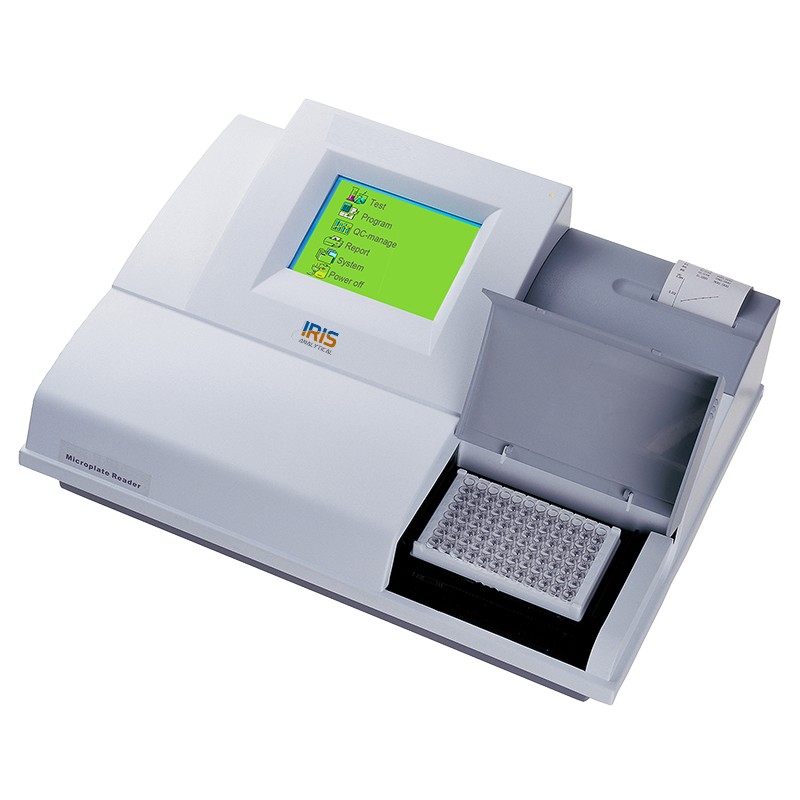

Microplate Reader IMR-6000especially designed for QC function with 8-channel manifolds as standard accessories for use with standard 96 wells plates. Covers the absorbance range 0 to 4.000Abs with bandwidth 8 nm
Microplate Reader IMR-6000especially designed for QC function with 8-channel manifolds as standard accessories for use with standard 96 wells plates. Covers the absorbance range 0 to 4.000Abs with bandwidth 8 nm and measured quickly, which is significantly faster than other current microplate reader methods. End Point, fixed time, Kinetic make the IMR-6000 the best platform for any clinical, biotechnology research and pharmaceutical laboratory applications. Can stored more than 100 programs, up to 100,000 test records in a single unit. Maintain all important measuring parameters including ABS, Cut-Off, Single Standard, Curve, Multi-Percent, Percent Log, Linear, Exponential, Power, and 4PL Regression. A multi-mode reader has several benefits for laboratories applications ranging from ELISAs to nucleic acid and protein quantitation to cell imaging. Together with multiple microplate services and detection modes into a single, more versatile unit may be an ideal choice especially if you have limited area and performed 12 assays in a single plate.
| Microplate Instrument | Microplate Reader |
| Model | IMR-6000 |
| Absorbance Range | 0 to 4.000Abs |
| Optical Path | 8-channel |
| Accuracy | ±0.1% or ±0.005Abs |
| Resolution | 0.001Abs ( displayed ) , 0.0001Abs (calculated) |
| Light Source | Halogen Iamp |
| Optical filter | 405nm, 450nm, 492nm, 630nm, (4 other filters optional) |
| Function | QC function: Grubs, Westguard Multi-rule, Levey jennings plot (optional) |
| Display | LCD |
| Storage | More than 100 programs, up to 100,000 test results |
| Interface | RS-232, USB, SD card interface |
| Dimensions | 460x330 x200 mm |
| Weight | 9 kg |
| Electrical Requirement | AC100/50 Hz, ± 10% |
| Catalogue No. | 420350501 |
|
Model |
IMR-6000 |
|
|
Absorbance Range |
0 to 4.000Abs |
|
|
Test Performance |
12 different test in single plate |
|
|
Optical Path |
8-channel |
|
|
Measurement Range |
0.000-2.500Abs |
|
|
Accuracy |
±0.1% or ±0.005Abs |
|
|
Resolution |
0.001Abs ( displayed ) , 0.0001Abs (calculated) |
|
|
Light Source |
Halogen Iamp |
|
|
Band width |
8 nm |
|
|
Optical filter |
405nm, 450nm, 492nm, 630nm, (4 other filters optional) |
|
|
Wavelength Accuracy |
±1nm |
|
|
Function |
QC function: Grubs, Westguard Multi-rule, Levey jennings plot (optional) |
|
|
Reading Speed |
5 seconds for 96-well plate ( single wavelength ) |
|
|
Printer |
Internal thermal printer , external printer optional |
|
|
Shaking |
Shaking time and speed adjustable |
|
|
Display |
LCD |
|
|
Applications |
ABS, %ABS, Cut-Off, Single Standard, Curve, Multi-Percent, Percent Log, Linear,Exponential, Power, 4PL Regression |
|
|
Storage |
More than 100 programs, up to 100,000 test results |
|
|
Interface |
RS-232, USB, SD card interface |
|
|
Dimensions |
460x330 x200 mm |
|
|
Weight |
9 kg |
|
|
Electrical Requirement |
AC100/50 Hz, ± 10% |
220V/60Hz, ± 10% |
|
Catalogue No. |
420350501 |
420350502 |
