Catalogue number : 420450501

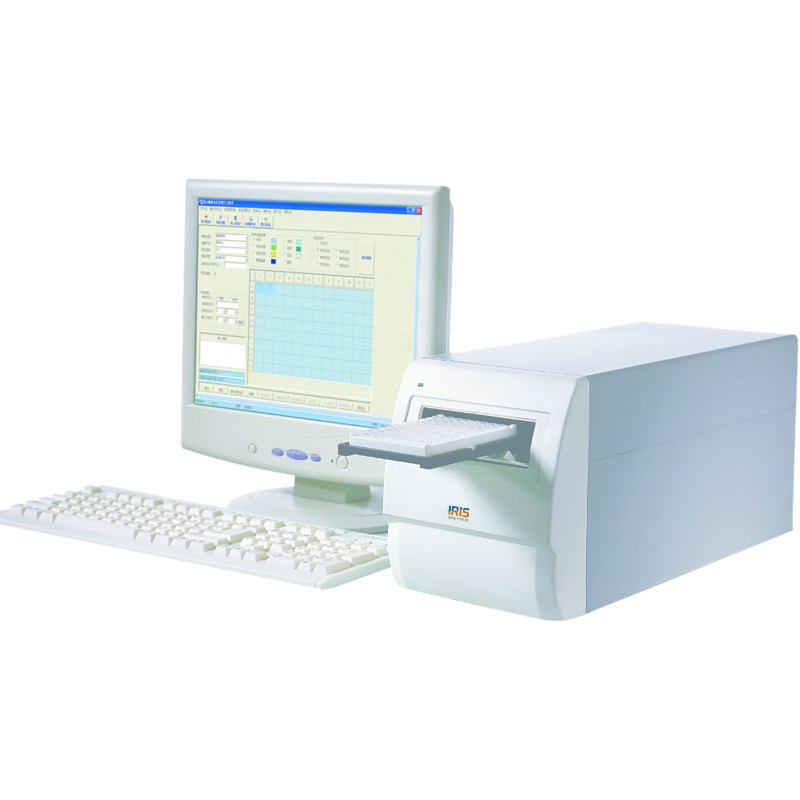

Microplate Reader IMR-8000 provides benefit of a wider range of detection with 8-channel manifolds as standard accessories for use with standard 96 wells plates. Covers the full UV wavelength340 nm and absorbance range 0 to 4.000Abs with bandwidth
Microplate Reader IMR-8000 provides benefit of a wider range of detection with 8-channel manifolds as standard accessories for use with standard 96 wells plates. Covers the full UV wavelength340 nm and absorbance range 0 to 4.000Abs with bandwidth <8 nm and measured quickly, which is significantly faster than other current microplate reader methods. End Point, fixed time, Kinetic make the IMR-8000 the best platform for any clinical, biotechnology research and pharmaceutical laboratory applications. Can stored more than 500 programs, up to 100,000test records in a single unit. Maintain all important measuring parameters including ABS, Cut-Off, Single Standard, Curve, Multi-Percent, Percent Log, Linear, Exponential, Power, and 4PL Regression. A multi-mode reader has several benefits for laboratories applications ranging from ELISAs to nucleic acid and protein quantitation to cell imaging. Together with multiple microplate services and detection modes into a single, more versatile unit may be an ideal choice especially if you have limited area and performed 12 assays in a single plate
| Microplate Instrument | Microplate Reader |
| Model | IMR-8000 |
| Wavelength Range | UV wavelength: 340 nm |
| Absorbance Range | 0 to 4000 Abs |
| Optical Path | 8-channel |
| Resolution | 0.001 Abs (display), 0.0001 Abs (calculated) |
| Light Source | Halogen lamp |
| Optical filter | 340,405,450,492,630nm,(3 filters optional) |
| Function | End point, fixed time, Kinetic |
| Storage | More than 500 programs, up to 100,000 test result |
| Interface | RS-232 |
| Dimensions | 186x440x220 mm |
| Weight | 9 Kg |
| Electrical Requirement | AC 110V/50 Hz, ±10% |
| Catalogue No. | 420450501 |
|
Model |
IMR-8000 |
|
|
Wavelength |
UV wavelength: 340 nm |
|
|
Absorbance Range |
0 to 4000 Abs |
|
|
Test Performance |
12 different |
|
|
Optical Path |
8-channel |
|
|
Wavelength Accuracy |
±1 nm |
|
|
Resolution |
0.001 Abs (display), 0.0001 Abs (calculated)
|
|
|
Light Source |
Halogen lamp
|
|
|
Band width |
<8 nm |
|
|
Optical filter |
340,405,450,492,630nm,(3 filters optional)
|
|
|
Function |
End point, fixed time, Kinetic
|
|
|
Reading Speed |
5 Seconds for 96 well plate (single wavelength)
|
|
|
Shaking |
Shaking time and speed adjustable
|
|
|
Printer |
All printers compatible with windows
|
|
|
Plate Incubation |
AT+4 to 45°C, adjustable
|
|
|
Applications |
ABS, cut-off, single standard, curve, multi-percent, percent log, linear, exponential, power, 4PL regression
|
|
|
Storage |
More than 500 programs, up to 100,000 test result
|
|
|
Interface |
RS-232 |
|
|
Dimensions |
186x440x220 mm
|
|
|
Weight |
9 Kg
|
|
|
Electrical Requirement |
AC 110V/50 Hz, ±10%,
|
240V/60 ±1Hz |
|
Catalogue No. |
420450501 |
420450502 |
