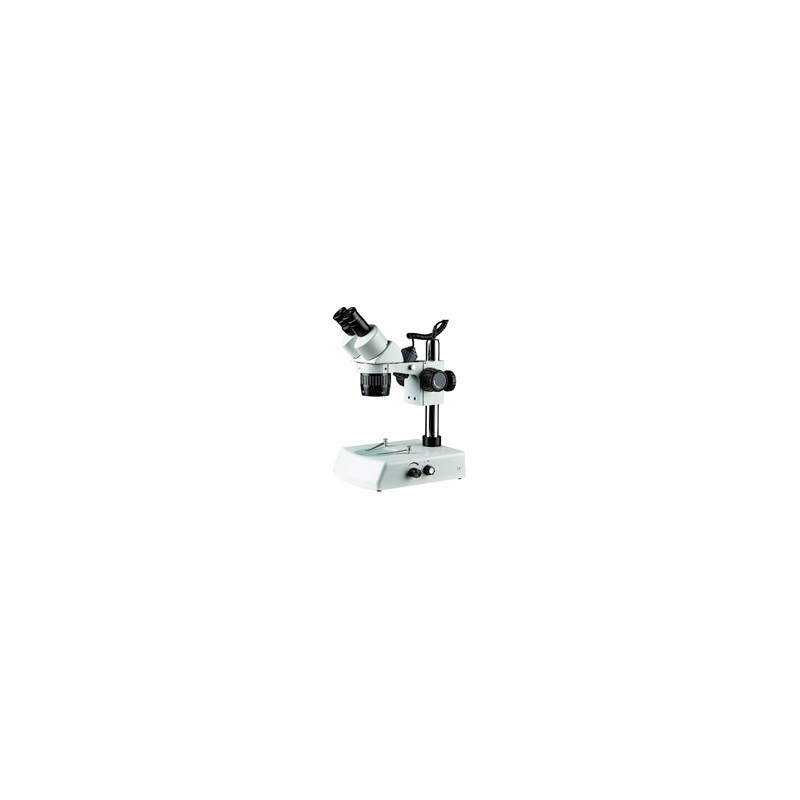

Home >> ProductsProducts by CategoryMicroscopesStereo Microscope IMS-1520
View larger
Catalogue number : 440150-10-04
Stereo Microscope IMS-1520 is suitable for school education, circuit board inspection, and repair, surface mount technology work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, inspection and repair of small parts. The binocular viewing head and V-shaped objective.
- Product Information
- Features
- Technical Data
- Downloads
Stereo Microscope IMS-1520 is suitable for school education, circuit board inspection, and repair, surface mount technology work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, inspection and repair of small parts. The binocular viewing head and V-shaped objective.
The pillar stand has the same ergonomic design with both the incident and transmitted lighting systems are rheostat controlled by halogen lamp and LED illumination lamp that allows the illumination to be adjusted to suit the sample type. Provide upright, un-reversed 3D images with high resolution and high quality.
- Long Working Distance: 2×, 4× 100 mm to create enough space for the uses and Head Mount-76 mm and Auxiliary objective
- High point wild field WF10×/20mm eyepieces
- Coarse focusing, focusing range of length 50 mm
- Halogen and LED light source illumination
- Black White plate stage
- Binocular 45° inclined and a 360° rotatable viewing head with Interpupillary adjusting distance 54-76 mm and diopter adjustment ±5dp on left ocular-tube and tube diameter 23.2 mm
- Small foot print and light weight
- Easy operating with ergonomic design
- Optional accessories Eyepiece, objective
|
Model |
IMS-1510 |
IMS-1520 |
IMS-1530 |
IMS-1540 |
|
Type |
Stereo Microscope |
|||
|
Viewing Head |
Binocular Viewing Head, Inclined at 45°, 360° rotatable, Interpupillary adjusting distance 54-76mm, left eyepiece with diopter adjustment±5 |
|||
|
Magnification |
20×, 40×, with optional eyepiece and auxiliary objective, can be extended to 5×-160× |
|||
|
Focusing |
Coarse focusing, focusing range 50mm |
|||
|
Eyepiece |
High eye point WF10X20 mm (optional: WF15X15mm, WF20X10mm) |
|||
|
Objective |
Long working distance: 2X, 4X 100 mm and Head Mount-76 mm, (optional: Auxiliary objective: 0.5X, 165mm, 1.5X, 45mm,2X,30mm ,1X, 2X, 1X, 3X) |
|||
|
Light Source |
no illumination |
Halogen illumination |
no illumination |
LED illumination |
|
Pillar Stand |
Pole height 240 mm, pole diameter 32 mm, with Clips, 95mm black and White plate, Base size: 200×255×22mm, no illumination |
Pole height 240mm, pole diameter 32mm, with Clips, 95 mm black and White plate, glass plate, Base size: 200×255×60mm, Halogen illumination |
Pole height 240mm, pole diameter 32mm, with Clips, 95 mm black White plate, Base size: 205×275×22mm, no illumination |
Pole height 240mm, pole diameter 32mm, with Clips, 95 mm black and White plate, glass plate, Base size: 205×275×40mm, LED illumination |
|
Packing Dimension |
3850x240x370 mm |
|||
|
Packing Weight |
GW-4.5 kg NW- 3.5 kg |
|||
|
Catalogue No. |
440150-05-04 |
440150-10-04 |
440150-15-04 |
440150-20-04 |
