Home >> ProductsProducts by CategoryMicroscopesFluorescent Microscope IMF-1210
View larger
Catalogue number : 4409505-4

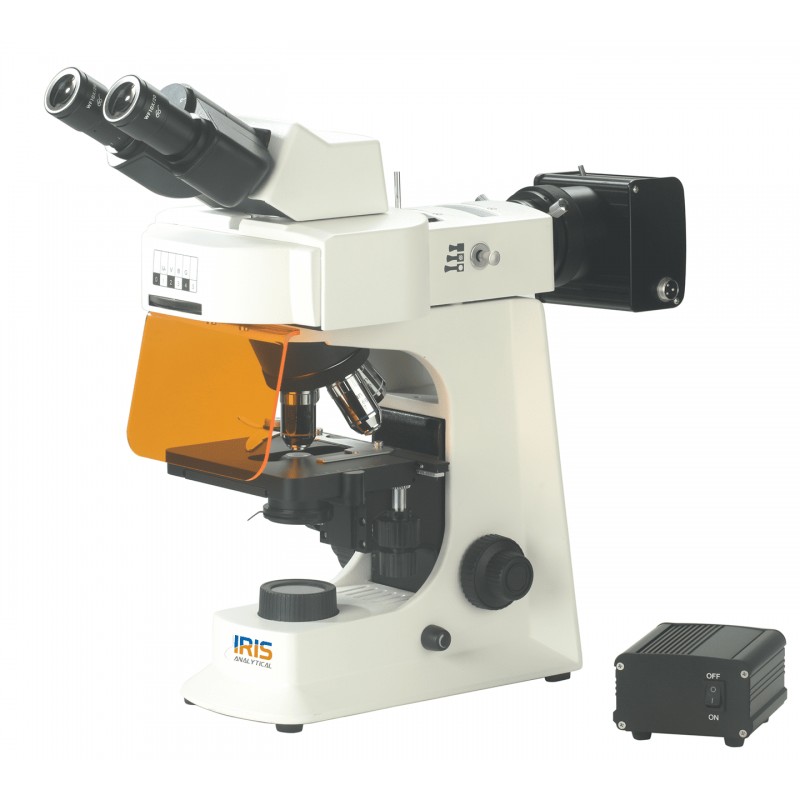

Fluorescent Microscope IMF-1210 is ideal for education, pathology investigation, clinical and laboratory usage. Innovative LED as fluorescence illumination source, provide excellent image with easy and comfortable usage experience.
- Product Information
- Features
- Specifications
- Technical Data
- Downloads
Fluorescent Microscope IMF-1210 is ideal for education, pathology investigation, clinical and laboratory usage. Innovative LED as fluorescence illumination source, provide excellent image with easy and comfortable usage experience. 1W S-LED Illumination with consistent color temperature, achromatic objective to ensure high image flatness across the field, single lens and ABBE Condenser with iris diaphragm and backward quadruple revolving nosepiece. The binocular, and Trinocular viewing head has excellent Infinite E-Plan Achromatic Objective 4×, 10×, 40×, 100× (Oil) objectives and each eye tube has interpupillary adjustment. Designed with blue, green filters. Provide tremendous fluorescent image with high resolution fluorescent objectives including infinite E-Plan achromatic, infinite plan achromatic, infinite semi-plan achromatic, infinite plan fluorescent objective, and backward quadruple resolving nosepiece. Designed with 3W, 5 W LED fluorescents lamp along with fluorescent free oil. Equipped with excitation filter for incoming light and emitted filters for emitted light and dichroic mirror to reflect the excitation light to the sample and instantaneously transmit only the emitted light from the sample back to the detector.
- LED cold light source
- Wild field WF10X20 mm and WF10X18 mm eyepieces
- Coaxial coarse and fine focusing knobs, travel rang of length : 26 mm, Scale :2 um
- Double layers mechanical stage of length 140×140/ 75×50 mm with reckless double layers mechanical as an optional accessories
- Abbe NA 1.25 and Sliding-in Centerable Condenser NA 1.25 with iris diaphragm
- Mirror and 3W-LED light source
- Binocular 30° inclined and a 360° rotatable head with interpupilary distance 48 to 76 mm, trinocular 30° inclined and a 360° rotatable head with interpupilary distance 48 to 76 mm
- Small foot print and light weight
- Easy operating with ergonomic design
- Excellent image quality with infinite optical system
- Optional accessories to realize field diaphragm, photo adapters(for dslr cameras), video adapters(1x, 0.5x), polarization set, phase contrast kit, filters, mirror, cable winding device
- 6V/20W and 6V/30W Kohler Illumination Halogen lamp as an optional accessories
| Model | IMF-1210 |
| Type | Fluorescent Microscope |
| Viewing Head | Binocular Viewing Head, Inclined at 30°, 360° Rotatable, I ID: 48-75mm |
| Optical System | Infinite |
| Focusing | Coaxial Coarse and Fine Focusing knobs, Travel Range: 26mm, Scale:2um |
| Eyepiece | WF10X20 mm (OPTIONAL:WF16X13 mm) |
| Nosepiece | Backward Quadruple (optional: Backward Quintuple) |
| Objective | Infinite E-Plan Achromatic Objective 4X, 10X, 40X, 100X(Oil)(opt: Infinite Plan Achromatic: 4X, 10X, 20X, 40X (S), 60X (S), 100X (Oil) (S) |
| Stage | Stage Size: 145×140mm, Cross Travel 76×52mm, 2 Slide Holder (opt:Rackless Double Layers Mechanical , 140×135mm, Cross Travel 75×35mm, Scale 0.1mm, 2 Slide Holder) |
| Light Source | 3W-LED Illumination(optional: 6V/30W Halogen Lamp) |
| Condenser | Abbe Condenser NA1.25 with Iris Diaphragm |
| Mirror | Yes |
| Filter | Yes |
| Optional Accessories | Field Diaphragm, Photo, Video adapters(for DSLR cameras), adapters(1X, 0.5X), Polarization set, Phase contrast kit, filters, mirror, Cable Winding Device |
| Shipping Dimensions | 420x280x450 mm |
| Shipping Weight | 12 kg |
| Fluorescent | 5W LED Lamp |
| Reflected Light Source | Blue : 420-490 excitation, 505 dichroic mirror, 520 barrier filter; Green : 500-550 excitation, 575 dichroic mirror, 590 barrier filter |
| Catalogue No. | 4409505-4 |
|
Model |
IMF-1210 |
IMF-1220 |
IMF-1230 |
IMF-1240 |
|
Type |
Fluorescent Microscope |
|||
|
Viewing Head |
Binocular Viewing Head, Inclined at 30°, 360° Rotatable, I ID: 48-75mm |
Trinocular Viewing Head, at 30°, 360° Rotatable, ID: 48-75mm, Light Distribution: 20:80 |
Binocular Head, Inclined at 30°, ID:48-75mm |
Trinocular Head, Inclined at 30°, I ID: 48-75mm |
|
Fluorescent |
5W LED Lamp |
3W LED Lamp(465-476nm),3W LED Lamp(525-530nm), Fluorescent Free Oil |
||
|
Reflected Light Source |
Blue : 420-490 excitation, 505 dichroic mirror, 520 barrier filter; Green : 500-550 excitation, 575 dichroic mirror, 590 barrier filter(optional: UV: 330-380 excitation, 400 dichroic mirror, 435 barrier filter and V:380-420 excitation,430 dichroic mirror, 460 barrier filter |
Blue : 460-490 excitation, 505 dichroic mirror, 515 barrier filter; Green : 510-550 excitation, 570 dichroic mirror, 590 barrier filter |
||
|
Optical System |
Infinite |
|||
|
Focusing |
Coaxial Coarse and Fine Focusing knobs, Travel Range: 26mm, Scale:2um |
Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm/Rotation, Fine Stroke 0.2mm/Rotation, Moving Range 20mm |
||
|
Eyepiece |
WF10X20 mm (OPTIONAL:WF16X13 mm) |
WF10X18mm |
||
|
Nosepiece |
Backward Quadruple (optional: Backward Quintuple) |
|||
|
Objective |
Infinite E-Plan Achromatic Objective 4X, 10X, 40X, 100X(Oil)(optional: Infinite Plan Achromatic Objective 4X, 10X, 20X, 40X (S), 60X (S), 100X (Oil) (S)) |
Infinite Semi-plan Achromatic Objective: 4X, 10X, 40X, 100X (optional: Infinite Plan Achromatic:: 4X,10X, 20X, 40X, 60X, 100X, Infinite Plan Fluorescent: 4X,10X, 20X, 40X, 100X) |
||
|
Stage |
Stage Size: 145×140mm, Cross Travel 76×52mm, Two Slide Holder (optional:Rackless Double Layers Mechanical Stage, Size: 140×135mm, Cross Travel 75×35mm, Scale 0.1mm, Two Slide Holder) |
Double Layers Mechanical Stage 140×140/ 75×50 mm |
||
|
Light Source |
3W-LED Illumination(optional: 6V/30W Halogen Lamp) |
3W S-LED(optional: Halogen Lamp 6V/20W) |
||
|
Condenser |
Abbe Condenser NA1.25 with Iris Diaphragm |
Sliding-in Centerable Condenser NA 1.25 |
||
|
Mirror |
Yes |
|
|
|
|
Filter |
Yes |
|
|
|
|
Certification |
|
|
|
|
|
Optional Accessories |
Field Diaphragm, Photo adapters(for DSLR cameras), Video adapters(1X, 0.5X), Polarization set, Phase contrast kit, filters, mirror, Cable Winding Device |
|
|
|
|
Packing Dimension |
420x280x450 mm |
|
|
|
|
Packing Weight |
12 kg |
|
|
|
|
Electrical Requirement |
|
|
|
|
|
Catalogue No. |
4409505-4 |
4409510-4 |
4409515-4 |
4409520-4 |
