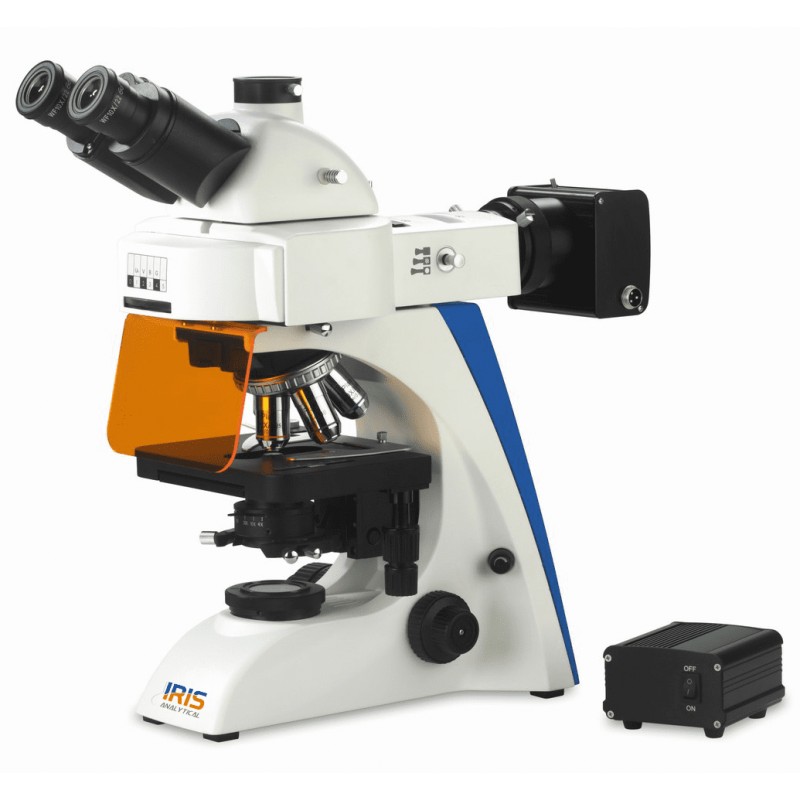

Fluorescent Microscope IMF-1340  is used to study the absorbing, transportation, chemicals distribution and positioning in cells. They can be used in disease examination, immune diagnosis and life science areas and tuberculosis test applications with Ziehl-Neelsen-Staining or fluorescence excitation, e.g. with Auramine O dye. 3W LED Illumination with consistent color temperature, achromatic objective to ensure high image flatness across the field, single lens and ABBE Condenser with iris diaphragm and backward quadruple revolving nosepiece. The binocular, and Trinocular viewing head has excellent Infinite E-Plan Achromatic Objective 4×, 10×, 40×, 100× objectives and each eye tube has interpupillary adjustment. Designed with blue, green filters and Kohler Illumination. Suitable for tuberculosis test applications with Ziehl-Neelsen-Staining or fluorescence excitation, e.g. with Auramine O dye. Provide tremendous fluorescent image with high resolution fluorescent objectives including infinite Plan achromatic objective, and backward Quintuple resolving nosepiece. Designed with LED epi-fluorescent, 3w led fluorescent lamp, mercury lamp epi-fluorescence lamp. Equipped with excitation filter for incoming light and emitted filters for emitted light and dichroic mirror to reflect the excitation light to the sample and instantaneously transmit only the emitted light from the sample back to the detector.

Sample Images

• Wild field WF10X20 mm and WF10X22 mm eyepieces
• Coaxial coarse and fine adjustment, fine division 0.002 mm, coarse stroke 37.7 mm/rotation, fine stroke 0.2/rotation, moving range 22 mm
• Rectangular of length 230×150 mm, Cross Travel 78×54 mm with 2 slides holder and reckless double layers mechanical stage of length 182×140 mm, travel range: 77×52 mm, scale: 0.1 mm with 2 slide golder
• Abbe Condenser NA1.25 with aperture diaphragm and swing out condenser N.A.0.9/1.25 with iris diaphragm
• Mirror and 12V/20W halogen lamp light source
• Different filters including blue filter and green, amber, grey filters as an optional accessories
• Binocular 30° inclined and a 360° rotatable head with interpupilary distance 48 to 76 mm, trinocular 30° inclined and a 360° rotatable head with interpupilary distance 48 to 76 mm
• Small foot print and light weight
• Easy operating with ergonomic design
• Excellent image quality with infinite optical system
• Optional accessories to photo attachment, video attachment, polarization set, phase contrast kit, kohler illumination
• 3W LED lamp Kohler Illumination as an optional accessories
