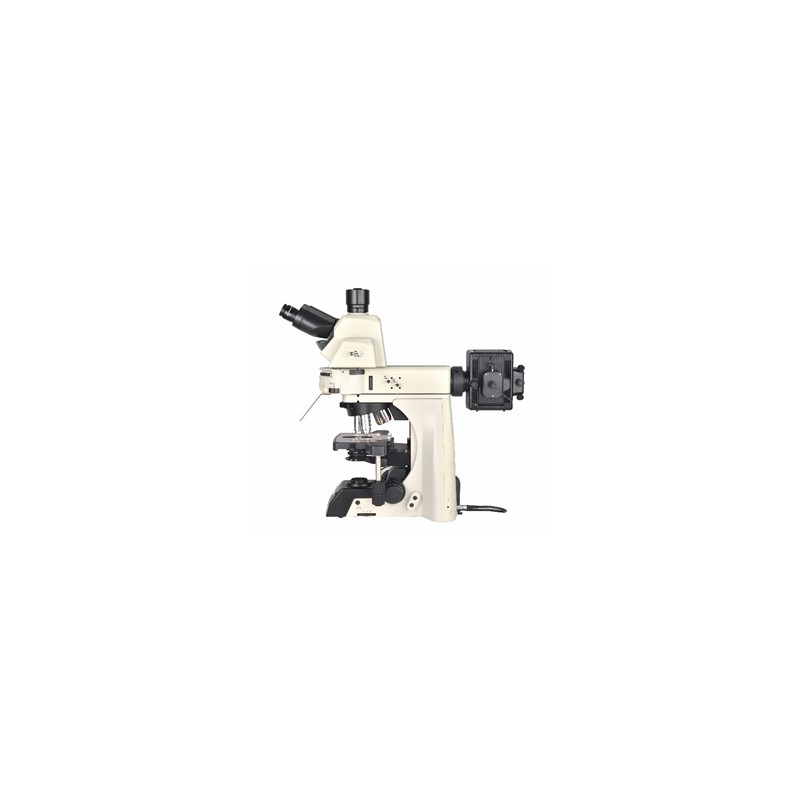

Fluorescent Microscope IMF-1540

Catalogue number : 440110-10-01

Fluorescent Microscope IMF-1540  is used to study the absorbing, transportation, chemicals distribution and positioning in cells. It is widely used in disease examination, immune diagnosis and life science areas.

$17,600.00 tax excl.


Availability : 3-4 weeks

Availability : Availability : 3-4 weeks

Add to Quote

Add to wishlist

  • Product Information
  • Features
  • Specifications
  • Technical Data
  • Downloads

Fluorescent Microscope IMF-1540  is used to study the absorbing, transportation, chemicals distribution and positioning in cells. It is widely used in disease examination, immune diagnosis and life science areas. 6V/30W Halogen lamp Illumination with consistent color temperature, achromatic objective to ensure high image flatness across the field, single lens and ABBE Condenser with iris diaphragm and backward quadruple revolving nosepiece. The trinocular viewing head has excellent Infinite Plan Achromatic 4×, 10×, 40×, 100×, N-PLN Plan: 4X/NA=0.10 of length 30mm, 10X/NA=0.25, of length 10.2mm, 20X/NA=0.40, of length 12mm, 40X/NA=0.65, of length 0.7mm, 100X(Oil)/NA=1.25, of length 0.2mm, Plan semi-apochromatic fluorescent 4X/0.13(infinity), of length 18.5mm10X/0.30(infinity)of length 10.6mm, Plan semi-APO phase contrast: 10× NA=0.3 of length 8.1mm   Cover glass, 1.2mm, 20× NA=0.45   of length 7.5-8.8mm objectives and each eye tube has interpupillary adjustment. Designed with U, V, R, B1 fluorescent filters. Provide tremendous fluorescent image with high resolution fluorescent objectives including Infinite Plan Achromatic, N-PLN Plan, N-PLN PH Plan Phase Contrast, N-PLFN Plan Semi-apochromatic Fluorescent:, Plan semi-apochromatic fluorescent objective, and backward quintuple, backward sextuple, motorized backward sextuple resolving nosepiece. Designed with Turret with 6 filter block cubes, 100W mercury lamp, epi-fluorescence HBO mercury lamp and B,G,UV fluorescent filters, epi-fluorescence attachment LED lamp with B,G,UV filters. Equipped with excitation filter for incoming light and emitted filters for emitted light and dichroic mirror to reflect the excitation light to the sample and instantaneously transmit only the emitted light from the sample back to the detector.

Sample Images

  • Wild field WF10X22 mm, super wide field SW10X25 mm, extra wide field EW12.5X17.5 mm, high eye point wide field plan eyepiece PL10X25 mm, and SW10X25mm,30 mm eyepieces
  • Coaxial coarse and fine adjustment, fine division 0.002 mm, coarse stroke 37.7 mm/rotation, fine stroke 0.2/rotation, moving range 22 mm
  • Double layers mechanical stage and triple layer mechanical stage, movement range 130×85 mm, flexible knob.
  • Swing Condenser NA 0.9/0.25 etc.
  • Mirror and 12V/20W halogen lamp and 3W S-LED lamp light source
  • Different filters including blue filter and green, amber, grey filters as an optional accessories
  • Binocular 30° inclined and a 360° rotatable head with interpupilary distance 48 to 76 mm, trinocular 30° inclined and a 360° rotatable head with interpupilary distance 48 to 76 mm
  • Small foot print and light weight
  • Easy operating with ergonomic design
  • Excellent image quality with infinite optical system
  • Optional accessories: photo adapter canon DSLR camera, video adapter, 1× c-mount, 0.5× c-mount a etc.
  • 12V/100W halogen lamp and LED lamp Kohler Illumination as an optional accessories
Model IMF-1540
Type Fluorescent Microscope
Viewing Head Trinocular, 30°, ID: 47mm-78 mm
Optical System Infinite
Eyepiece SW10X25mm, diopter adjustable
Nosepiece Backward Sextuple
Light Source 3W S-LED lamp, center pre-set, intensity adjustable
Condenser Swing-out type condenser N.A.0.9/0.25(Auto)
Filter U,V,R fluorescent filters
Standard Accessories Dust Cover, Power Cord, Cedar Oil 5ml
Optional Accessories 10X DIC Objective Lens, 20X DIC Objective Lens Polarizer for DIC Kit, DIC insert plate
Fluorescent Turret with 6 filter block cubes position, with iris field diaphragm and aperture diaphragm, central adjustable
Electrical Requirement 100VAC
Catalogue No. 440110-10-01

Model

IMF-1520

IMF-1540

IMF-1560

IMF-1580

IMF-1500

Type

Fluorescent Microscope

Viewing Head

Trinocular at 30°, 360° Rotatable, ID: 48-75 mm

Trinocular, 30°, ID: 47mm-78 mm

Ergo Tilting Trinocular adjustable 0-35° ID: 47-78mm (op:Trinocular 30°, ID: 47-78mm

trinocular (Inverted image), 30° inclined, ID:: 50-76mm

Trinocular head with Bertrand lens, d at 45°, ID: 47-78 mm

Magnification

-

internal magnification: 1x, 1.5x

Fluorescent



Turret with 6 filter block cubes position, with iris field diaphragm and aperture diaphragm, central adjustable; with filter and polarizing slot; fluorescence filters (B,G fluorescent filters), 100W mercury lamp house, filament center and focus adjustable; with reflected mirror, mirror center and focus adjustable.

100W mercury lamp house, filament center and focus adjustable; with reflected mirror, mirror center and focus adjustable. (75W xenon lamp house for option)

Epi-fluorescence HBO mercury lamp and B,G,UV fluorescent filters, field diaphragm, center adjustable(optional: Epi-fluorescence attachment LED lamp and B,G,UV filters, field diaphragm

Reflected Light Source

Blue : 460-490 excitation, 505 dichroic mirror, 515 barrier filter; Green : 510-550 excitation, 570 dichroic mirror, 590 barrier filter

-

Optical System

Infinite

Focusing

Coaxial Coarse and Fine Adjustment, Fine Division 0.001mm, Coarse Stroke 37.7mm/Rotation, Fine Stroke 0.1mm/ Rotation, Moving Range 24mm

Low-position coaxial coarse and fine focusing, fine division 1μm, Moving range 35mm

Biological frame (transmitted), low-position coaxial coarse and fine adjustment, coarse adjustment distance Fluorescence frame (transmitted), low-position coaxial coarse and fine adjustment,

Coaxial coarse fine focusing. Movement range 9mm, coarse adjustment 2mm/rotation, fine adjustment 0.2mm/rotation

Eyepiece

WF10×/22mm

SW10X25mm, diopter adjustable (optional:SW10X22mm, EW12.5X17.5m, WF15X16mm, WF20X12mm, diopter adjustable

PL10X25mm, (optional: PL10X25mm,PL10X26.5mm, PL10X26.5mm, with reticle, diopter)

SW10×/25mm,30mm (optional:SW10X22mm,30mm, EW12.5X17.5mm, 30mm, WF15X16mm, 30mm, WF20X12mm, 30mm

Nosepiece

Backward Quintuple

Backward Sextuple

Motorized Backward Sextuple

Backward Quintuple(optional: Backward Sextuple)

6-hole nosepiece with DIC slot

Objective

Infinite Plan Achromatic Objective 4×, 10×, 40×, 100× Infinite Plan Achromatic 20×, 60×, (optional: Infinite Plan Fluorescent   4×,10×,20×,40×, 100×)

N-PLN Plan: 4X/NA=0.10, 30mm, 10X/NA=0.25, 10.2mm, 20X/NA=0.40, 12mm, 40X/NA=0.65, 0.7mm, 100X(Oil)/NA=1.25, 0.2mm (opt:50X(Oil)/NA=0.95, WD=0.19mm60X/NA=0.80, WD=0.3mm); N-PLN PH Plan Phase Contrast: 10X/NA=0.25 10.2mm, 20X/NA=0.40, of length 12mm, 40X/NA=0.65,0.7mm; N-PLFN Plan Semi-apochromatic Fluorescent: 4X/NA=0.13, 17.2mm.

Plan semi-apochromatic fluorescent 4X/0.13(infinity), 18.5mm10X/0.30(infinity) 10.6mm,20X/0.50(infinity) 2.33mm40X/0.75(infinity) 0.6mm,100X/1.30(infinity), 0.21mm

Plan semi-APO phase contrast: 10× NA=0.3 8.1mm   Cover glass, 1.2mm, 20× NA=0.45, 7.5-8.8mm   Cover glass 0-2mm,40× NA=0.60, 3-4.4mm   Cover glass 0-2mm(optional: 4×NA=0.13, 16.5mm     Cover glass 0-2mm, 60×   NA=0.70 1.8-2.6mm.

Stage

Double Layers Mechanical Stage 185×142/ 75×55 mm

Double layers mechanical stage, size 190mmX152mm; moving range78mmX32mm (Right or left handle); precision: 0.1mm

Double layers mechanical stage, size 190mmX152mm; moving range 78mmX54mm (double slides holder, Right or left handle); precision: 0.1mm; with Sapphire Crystal Glass Insert

Double layers mechanical stage, size: 187mm X168mm; moving range: 80mm X55mm; precision: 0.1mm; two-way linear drive, tension adjustable

Three-layer mechanical stage, movement range 130×85mm, flexible knob. Different small sizes stage could be attached to main stage

Light Source

6V/30W Halogen lamp External Kohler illumination, A spherical collector

3W S-LED lamp, center pre-set, intensity adjustable (optional:12V/100W halogen lamp)

12V/100W halogen lamp house for transmitted light, center pre-set, intensity adjustable

12V/100W halogen lamp, Kohler illumination(optional: LED illumination ECO Auto-off function)

Condenser

Swing Condenser NA 0.9/0.25

Swing-out type condenser N.A.0.9/0.25(Auto) (optional: Dark-field Condenser (Dry), used for objectives lower than 100X Turret Phase Contrast Condenser Dark-field Condenser (Oil), used for 100X)

Swing-out type achromatic condenser (N.A.0.9)

Long working distance condenser, NA0.55, WD=26mm, with 6-position plate

Mirror











Filter



U,V,R fluorescent filters



V, B1, R fluorescent filters

Certification











Accessories

-

Dust Cover, Power Cord, Cedar Oil 5ml





Optional Accessories

Photo Adapter Canon DSLR camera, Video Adapter 1× C-mount, 0.5× C-mount a

10X DIC Objective Lens, 20X DIC Objective Lens Polarizer for DIC Kit, DIC insert plate(10X/20X), can be inserted into the DIC slot on nosepiece DIC insert plate(40X/100X) can be inserted into the DIC slot on nosepiece, DIC Turret Condenser U,V,R fluorescent filters, ND6/ND25 Filter 0.5X C-mount Adapter, 1X C-mount Adapter

Camera adapter:, 0.5X/0.65X/1X focusing C-mount, Cooled CCD camera, SONY 2/3′′, 1.4MP, ICX285AQ, Color CCD, Centering objective for fluorescence observation, Calibration slide 0.01mm Multi Viewing Attachment for 5 persons, DIC Attachment

Dark field Polarizing kit Phase contrast DIC

Packing Dimension











Packing Weight











Electrical Requirement



100VAC







Catalogue No.

  440110-05-04

 440110-10-01

 440110-15-04

 440110-20-04

 440110-25-04
