Inverted Fluorescence Microscope IMF-3200  deals with the flexibility and power that user needs to advance their work along with high-resolution cameras, and vivid 6V/30W Halogen lamp illumination and 100W HBO Ultra Hi-voltage Spherical Mercury Lamp as a light source, these inverted systems are highly flexible and fit perfectly for user laboratory needs. Ideal for cell culture used in universities, hospitals and life science labs for disease examination, immune diagnosis and scientific research. Equipped with trinocular viewing head and different filters including Blue, Green and Ground glass filters. It is a significant instrument finished to a high standard. High performance, long working distance Infinite Plan Achromatic objectives are fitted as standard with a reversed quintuple nosepiece and Extra Long Working Distance NA 0.3 of length 72 mm condenser. Features with 10×/ 0.25, 6 mm, 20×/ 0.4, 3.1mm, 40×/ 0.55, 2.2 mm high-level phase contrast objective with a corresponding phase plate and focusing Centering telescope of length 30 mm is included as standard. Provide tremendous fluorescent image with high resolution fluorescent objectives including LWD Infinite Plan Achromatic, High Level Phase Contrast objective, and backward quintuple nosepiece. Designed with 100W HBO Ultra Hi-voltage Spherical Mercury, 6V/30W Halogen Lamp Kohler Illumination fluorescents lamp. Advantage of HBO mercury lamp: various spectral peaks, incoherent source, reasonable price, and compact light emitting surface. Equipped with excitation filter for incoming light and emitted filters for emitted light and dichroic mirror to reflect the excitation light to the sample and instantaneously transmit only the emitted light from the sample back to the detector.

Accessories

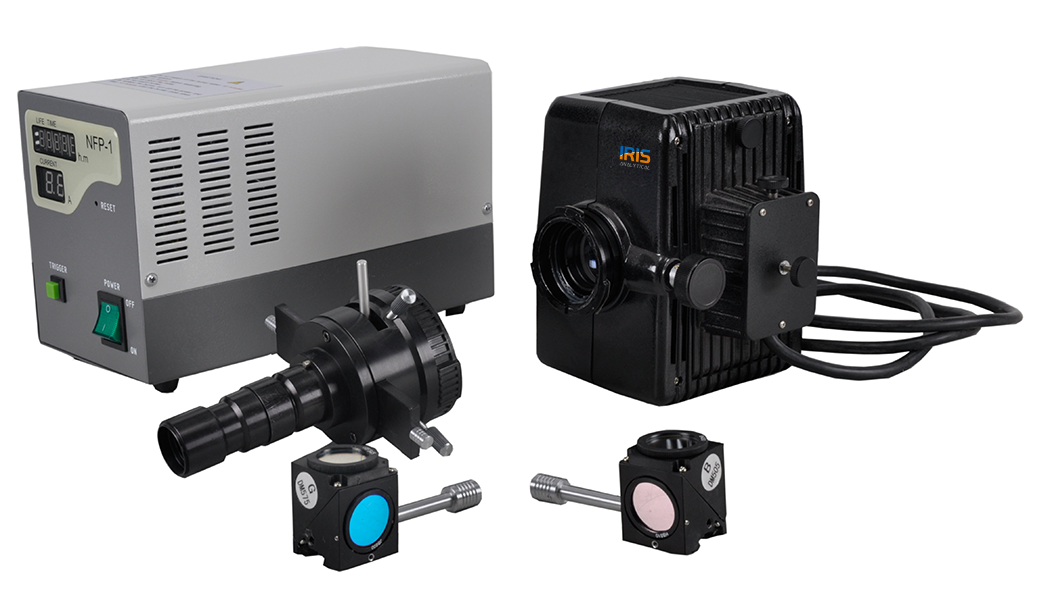

Inverted Fluorescent Attachments

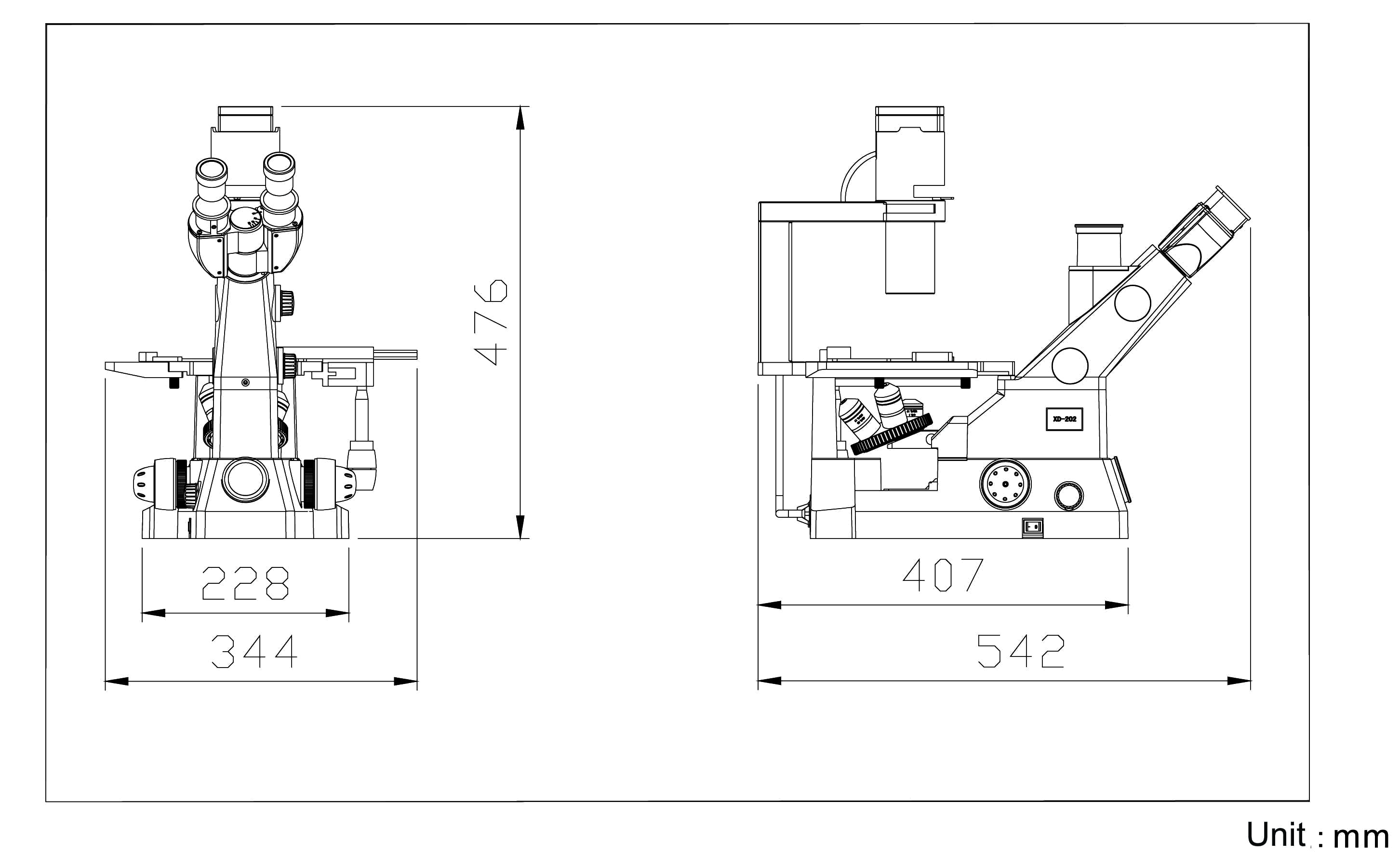

Unit Dimension(mm)

• Centering Telescope of length 30 mm
• Extra wild field WF10×/ 20 mm eyepieces
• Coaxial coarse and fine adjustment and fine division: 0.002mm, Moving Range up 4.5mm, down 4.5mm
• Plain stage of 230×170 mm, glass insert plate, attachable mechanical stage, x,y coaxial control, moving range of length 80×120 mm, auxiliary stages 70×180 mm with terasaki holder, petri dish holder of length 38 mm, and 54 mm
• ELWD Condenser NA 0.3, LWD 72 mm
• 6V/30W halogen lamp light source
• Different filters including Blue, Green and Ground glass filters
• Trinocular 45° inclined and a 360° rotatable head with interpupilary distance 48 to 75 mm
• Small foot print and light weight
• Easy operating with ergonomic design
• Excellent image quality with infinite optical system
• Optional accessories Photo Adapter, 0.5× C-mount, Modulation Contrast
• 5W LED Kohler Illumination Halogen lamp as an optional accessories
