Catalogue number : 480151502

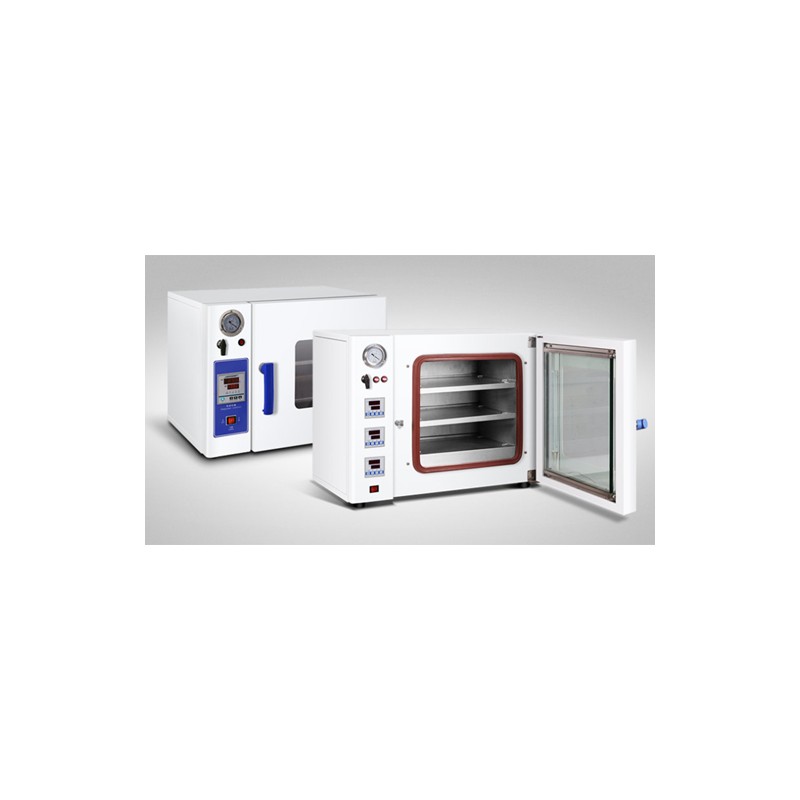

Drying Oven DO-3130 design with all flow air current cycling: perfect forced convection, maximum samples number of working room, minimum temperature recovery time after the opening, world famous axial fan, perfect air current design, ensure an ideal result of samples culture.
Drying Oven DO-3130 design with all flow air current cycling: perfect forced convection, maximum samples number of working room, minimum temperature recovery time after the opening, world famous axial fan, perfect air current design, ensure an ideal result of samples culture.
Double door design, easy observation samples, keep temperature stability, with bell-type lighting system. Sheet metal parts use laser cutting and CNC bending technology.
Cold-rolled sheets use three line of acidification anti-rust technology. Incubator surface use workmanship of spraying plastics.
Model |
DO-3040 |
DO-3070 |
DO-3130 |
|||
Volume |
40 L |
70 L |
130 L |
|||
Convection Mode |
Forced Convection |
|||||
Range |
RT+5 to 250℃ |
|||||
Accuracy |
0.1 °C |
|||||
Temp. Fluctuation |
±1°C(in the of range 50to 240℃) |
|||||
Uniformity |
2%(in the of range 50to 240℃) |
|||||
Control System |
Microprocessor PID |
|||||
Materials |
SUS304 stainless steel inner |
|||||
Number of standard tray |
2 |
|||||
Working environment |
Ambient temperature:10 to 30℃, Humidity<70% |
|||||
Timer Range |
0to 99h,or 0to 9999min,can be choose |
|||||
Insulation materials |
Imported environmental protection type material |
|||||
Power Consumption |
770 W |
970 W |
1270 W |
|||
Internal Dimensions |
350×350×350 mm |
450×450×350 mm |
550×550×450 mm |
|||
External Dimensions |
570×580×593 mm |
670×680×593 mm |
770×780×693 mm |
|||
Packing Dimension |
690×660×680 mm |
790×760×680 mm |
890×860×780 mm |
|||
Net weight |
40 kg |
48 kg |
65 kg |
|||
Shipping weight |
43 kg |
51 kg |
69 kg |
|||
Electrical Requirements |
110V/60Hz |
220V/50Hz |
110V/60Hz |
220V/50Hz |
110V/60Hz |
220V/50Hz |
Catalogue No. |
480150501 |
480150502 |
480151001 |
480151002 |
480151501 |
480151502 |
