Catalogue number : 480201501

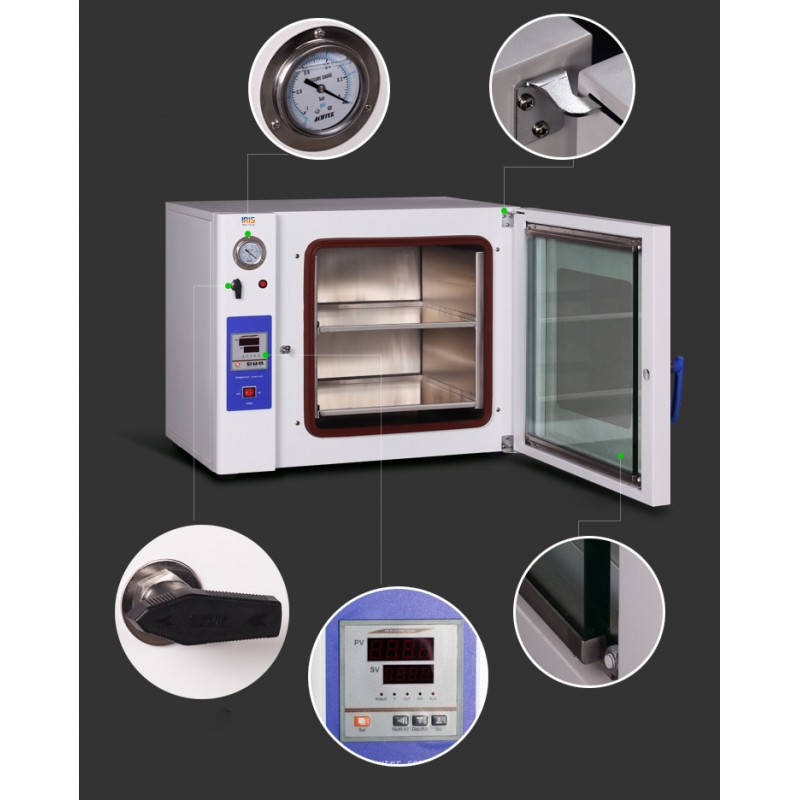

Vacuum Oven VO-1260 provide versatile high temperature vacuum. Incorporated with many applications and commercial production process.
Vacuum Oven VO-1260 provide versatile high temperature vacuum. Incorporated with many applications and commercial production process.
The model is applicable for the biochemical, chemical and pharmaceutical, health care, agricultural research, environmental protection and other research fields, for powder Drying and roasting, as well as used for disinfection and sterilization of glass containers.
Particularly suitable for easily oxidized, decomposed material, complex composition or heat-sensitive items
Model |
VO-1220 |
VO-1240 |
VO-1260 |
|||
Volume |
220L |
220L |
220L |
|||
Convection Mode |
Natural convectionActivities clapboard thermal conductivity) |
|||||
Range |
50 to 200℃ |
|||||
Accuracy |
±0.5℃ |
|||||
Control System |
Microprocessor PID |
|||||
Materials |
SUS304 stainless steel inner |
|||||
Number of standard tray |
2 |
|||||
Working environment |
Ambient temperature:10 to 30℃, Humidity<70% |
|||||
Timer Range |
0 to 999 min |
|||||
Insulation materials |
Imported environmental protection type material |
|||||
Power Consumption |
0.9 KW |
1.4 KW |
2.4 KW |
|||
Internal Dimensions |
280×300×300 mm |
400×415×350 mm |
485×440×425 mm |
|||
External Dimensions |
450×635×465 mm |
570×750×515 mm |
620×780×600 mm |
|||
Packing Dimension |
570×720×545 mm |
690×830×600 mm |
740×860×680 mm |
|||
Net weight |
42.5 kg |
65 kg |
105 kg |
|||
Shipping weight |
52.5 kg |
75 kg |
130 kg |
|||
Electrical Requirements |
110V/60Hz |
220V/50Hz |
110V/60Hz |
220V/50Hz |
110V/60Hz |
220V/50Hz |
Catalogue No. |
480200501 |
480200502 |
480201001 |
480201002 |
480201501 |
480201502 |
