Home >> ProductsProducts by CategoryPhysical Properties TestingDigital Melting Point Apparatus MPA-230
View larger
Catalogue number : 5100530-04
Digital Melting Point Apparatus MPA-230 ideal in the field of medicines, dry stuff, perfumes, and other organic crystal substances.
- Product Information
- Features
- Technical Data
- Downloads

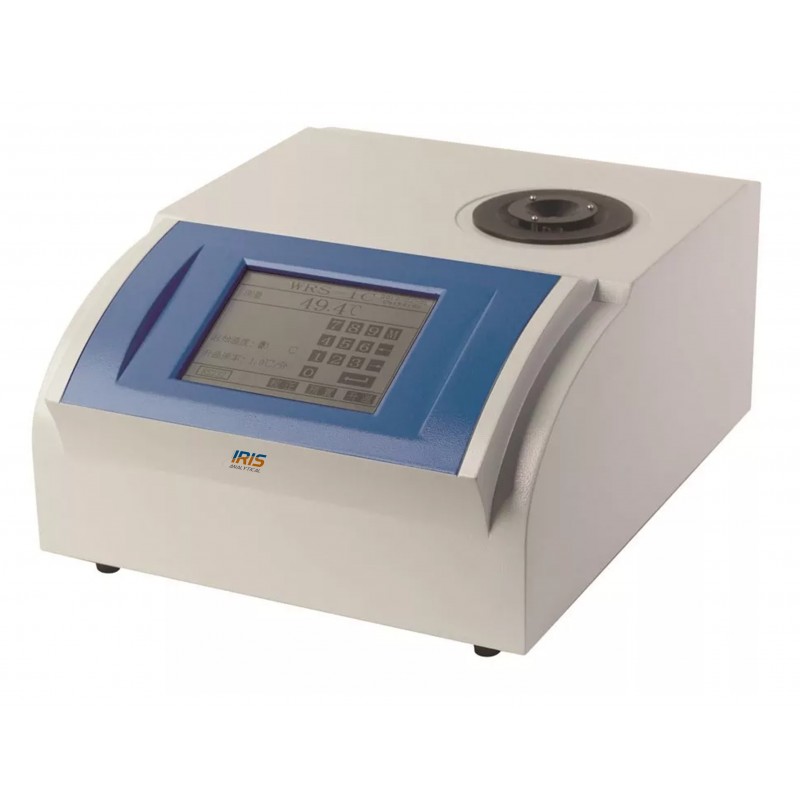

Digital Melting Point Apparatus MPA-230 ideal in the field of medicines, dry stuff, perfumes, and other organic crystal substances.
It operated at room temperature to 320℃ range a 0.1 °C display resolution as well as a variable heating rate and footing in such a way that the melting temperature can be recorded and allows you to review the process. Additionally, features including a video camera and a video replay function, FDA and CFR21 part 11 compliance.
The temperature is selected, measured, and display digital making it accurate. Users can view with a magnifying lens to receive perfect observation. Designed for all laboratory needs with adequate requirements for sample processing.
- Features with PID and PWM
- LCD display
- Temperature range: RT to 400℃
- Detection of melting point of substances
- Multi point calibration standard
- Portable and compact design
- Storage data: 1000 sets
- Support USB and RS232
|
Model |
MPA-230 |
MPA-240 |
|
Temperature Range |
RT to 320℃ |
RT to 400℃ |
|
Accuracy |
±0.4℃ |
|
|
Resolution |
0.1℃ |
|
|
Display |
LCD display |
|
|
Capillary Size |
1.4 mm outer diameter or 1.0 mm inner diameter x 80 mm |
|
|
Repeatability |
0.3℃ |
|
|
Loading Height of Sample |
3 mm |
|
|
Linear Heating Rate |
0.2, 0.5, 1.0, 1.5, 2.0, 3.0, 4.0, 5.0℃/min. |
0.1 to 20℃/min. |
|
Deviation Linear Heating Rate |
not more than 10% |
|
|
Storage |
1000 sets |
|
|
Interface |
USB |
USB and RS232 |
|
Catalogue No. |
5100530-04 |
5100535-04 |
