Home >> ProductsProducts by CategoryPolarimeters and RefractometersBasic Automatic Polarimeter IAP-120
View larger
Catalogue number : 4600510-04

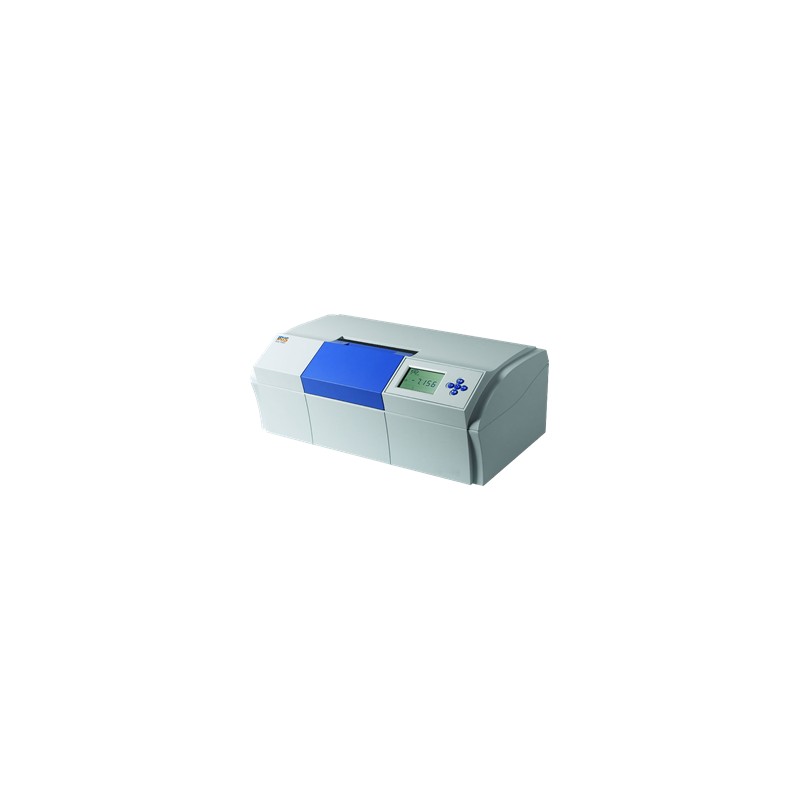

Basic Automatic Polarimeter IAP-120 is designed for use in many applications that require measurement of optical rotation and best suited for optical rotation, sugar degree in pharmaceutical, chemical, food and research applications.
- Product Information
- Features
- Specifications
- Technical Data
- Downloads
Basic Automatic Polarimeter IAP-120 is designed for use in many applications that require measurement of optical rotation and best suited for optical rotation, sugar degree in pharmaceutical, chemical, food and research applications. Designed with 589.44 nm, 5-inch LCD light source and includes polarimeter tubes of 100 mm and 200 mm, and a spare sodium lamp, with sample transmittance up to 10 %, and 1% range.Better-quality usability with the use of touch screen display. Achieve a high measurement accuracy of up to ± (0.01 and measuring valuex 0.05%) °C. Automatically prints out Optical rotation, sugar degree.
Basic Automatic C total repeatability and glass tubes: 100 and 200 mm, 15mm diameter.Polarimeter IAP-120 is ideal for measurement of rotation of polarization plane and best suited for optical rotation with accuracy up to ±0.01°C, and ≤0.01°
-
Designed with photoelectric test and microcomputer control
-
Suitable for optical rotation and sugar degree application
-
CE certified
-
Designed with 5-inch LCD display
-
Capabilities to store of three times results and design to calculate average values
-
Integrated with polarimeter tubes of 100 mm and 200 mm
-
Support RS232 interface
| Model | IAP-120 |
| Measuring range | ±45°(optical rotation)±120°) |
| Accuracy | ±(0.01+measuring value x 0.05%)°C |
| Repeatability | ≤0.002°C |
| Wavelengths | 589.44 nm |
| Dimensions (L x W x H) | 730×480×470 mm |
| Weight | 33 kg |
| Interfaces | RS232 |
| Data Storage | LED |
| Certification | CE |
| Display | 5-inch LCD |
| Measurement Modes | Optical rotation, sugar degree |
| Catalogue No. | 4600510-04 |
|
Model |
IAP-110 |
IAP-120 |
|
Wavelength |
589.44 nm |
|
|
Accuracy |
±(0.01+measuring value x 0.05%)°C |
|
|
Repeatability |
≤0.01°C |
≤0.002°C |
|
Measurement Range |
±45°C(Optical rotation) |
±45°(optical rotation)±120° |
|
Measurement Modes |
Optical rotation |
Optical rotation, sugar degree |
|
Source |
LED |
|
|
Display |
5-inch LCD |
|
|
Test Tube |
100 mm or 200 mm (regular) |
|
|
Minimum Indicating Value |
0.002°C(optical rotation) |
0.001°C(optical rotation)0.01° |
|
Sample Transmittance |
10% |
1% |
|
Certifications |
CE |
|
|
Interface |
RS232 |
|
|
Dimension |
730×480×470 mm |
|
|
Weight |
33 kg |
|
|
Electrical Requirement |
- |
- |
|
Catalogue No. |
4600505-04 |
4600510-04 |
