Home >> Products>Products by Category>Refrigerators/Freezers >Blood Bank Refrigerator IUBR-1005
Catalogue number : 500050502

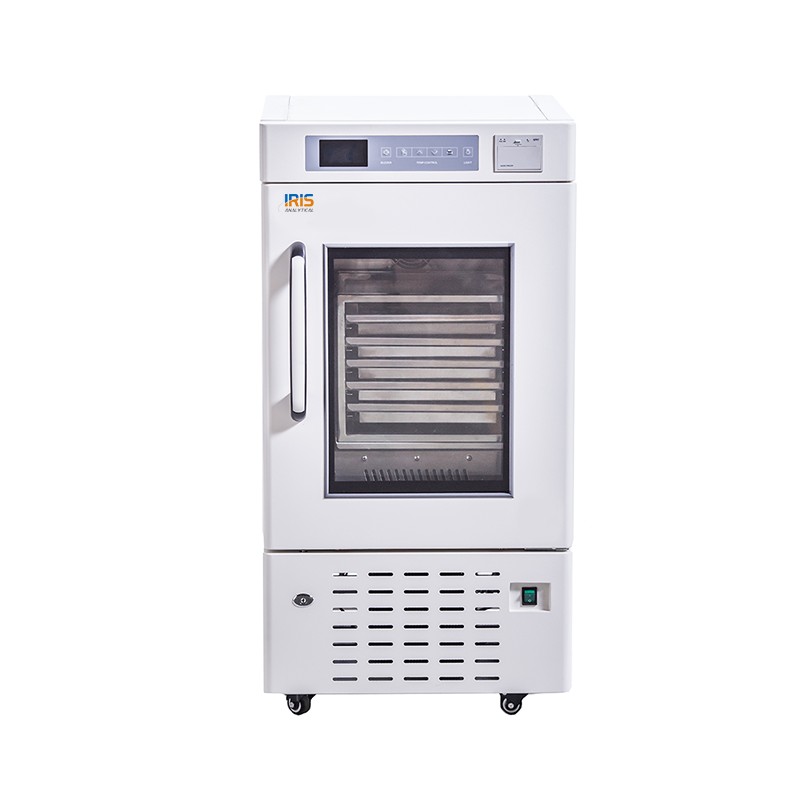

Blood Bank Refrigerator IUBR-1005 used to store blood platelet, biological reagent, and chemical products in hospitals, blood banks, R&D applications. Can record the 2 temperature range including 20 to 24°C and 2 to 40°C
Blood Bank Refrigerator IUBR-1005 used to store blood platelet, biological reagent, and chemical products in hospitals, blood banks, R&D applications. Can record the 2 temperature range including 20 to 24°C and 2 to 40°C when plugged into the power source with a maximum capacity of 5 L. Intuitive two alarming of audible buzzing and visual flashing light, dual transparent insulated glass door, and display interface provides navigation to feature user interface design easily. It required no defrosting consequently the temperatures inside are preserved and maintained during the storage period. Optional and standard accessories are available.
Accessories
Optional Accessories
| Model | IUBR-1005 |
| Capacity (liters) | 5L |
| Cabinet Type (Upright/Chest) | Upright |
| Temperature Range (℃ ) | 20°C to 24°C /2°C to 40°C |
| Refrigeration System | R134a |
| Alarms | High and low temperature alarms, Sensor error alarm, Power failure alarm, Door ajar alarm, Door ajar alarm, Low battery alarm |
| Insulation Type | Platelet Oscillating Incubator |
| Overall Dimensions (WxDxH) cm | 522×600×1050 mm |
| Certifications/Compliance | ISO,9001,13485,14001;CE |
| Net Weight (kg) | 60 kg |
| Gross Weight (kg) | 65kg |
| Electrical Requirements | 220/50Hz |
| Catalogue Number | 500050502 |
|
Model |
IUBR-1005 |
IUBR-1010 |
|
Capacity |
5L |
10 L |
|
Type |
Platelet Oscillating Incubator |
|
|
Cabinet Type |
Upright |
|
|
Blood Capacity(450ml/bags) |
10 layers/10 bags |
10 layers/20 bags |
|
Temperature Range |
20°C to 24°C /2°C to 40°C |
|
|
Cooling |
22℃ |
|
|
Alarms |
High and low temperature alarms, Sensor error alarm, Power failure alarm, Door ajar alarm, Door ajar alarm, Low battery alarm |
|
|
Refrigerant |
R134a |
|
|
Cooling Type |
Forced Air Cooling |
|
|
Defrosting |
NA |
|
|
Certification |
ISO,9001,13485,14001;CE |
|
|
Internal Dimension |
427×360×467 mm |
432×462×728 mm |
|
External Dimension |
522×600×1050 mm |
522×600×1300 mm |
|
Net Weight |
60 kg |
80 kg |
|
Gross Weight |
65 kg |
86 kg |
|
Electrical Requirement |
220/50Hz |
|
|
Catalogue No. |
500050502 |
500051002 |
