Home >> Products>Products by Category>Shakers/Incubator Shakers>Orbital Shakers OS-3150, 220V/50Hz

Sale!

View larger

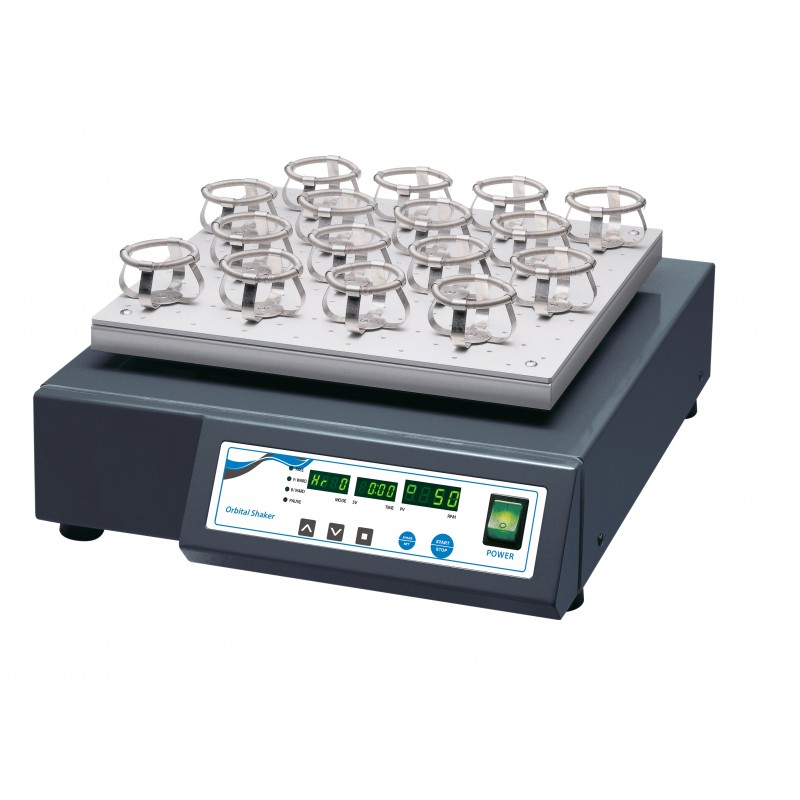

Orbital Shakers OS-3150, 220V/50Hz

Catalogue number : OS-3150

$2,998.00 tax excl.

Availability : 2 - 3 weeks

Add to Quote

Add to wishlist

Product Information
Features
Specifications
Technical Data
Downloads

Reciprocating/Orbital Shaker OS-3150 provide two different shaking functions: back and forth, and orbital. Adjustable shaking speed and range. Timer function for maximum flexibility.

Iris orbital shakers feature a rectangular platform that moves in a circular motion to aerate samples. Additional features for all of these units include intuitive controls with a digital display, a robust construction in a compact, space-saving design and smooth running conditions with variable speeds. Our laboratory shakers allow for safe, efficient and easy-to-use operation while reproducing accurate, controlled speeds with every use.

Two different shaking functions: back and forth, and orbital
Adjustable shaking speed and range
Timer function for maximum flexibility
Corrosion resistant stainless steel housing
Easy to clean and maintain
Large mounting surface and big load capacity of up to 15 kg
Ideal for vessels with more than 250 ml capacity, like round flasks, Erlenmeyer flasks, culture flasks, or culture bottles
Widely used for bacterial cultures, fermentation, hybridization, biochemical reactions, enzyme or tissue research

Multi-function Shaking System:

The OS-3150 shaker's intensive multifunction shaking system surpasses all previous levels of experience! You can multi-set the shaking motions in maximum six ways of Forward/ Backward/ Pause/ Mix & match upon your various laboratory purposes.

Two different shaking functions: back and forth, and orbital
Adjustable shaking speed and range
Timer function for maximum flexibility
Corrosion resistant stainless steel housing
Easy to clean and maintain
Large mounting surface and big load capacity of up to 15 kg
Ideal for vessels with more than 250 ml capacity, like round flasks, Erlenmeyer flasks, culture flasks, or culture bottles
Widely used for bacterial cultures, fermentation, hybridization, biochemical reactions, enzyme or tissue research

Timer	999 hr 59 min; Pause: Max. 99 min, Min. 1 min; Forward-and-backward: Max. 9 min 50 sec, Min. 10 sec

Model	OS-3050		OS-3050R		OS-3100		OS-3150		OS-3200
Display and Control	LED Digital Display / On-Touch Control		LED Digital Display / On-Touch Control		LED Digital Display / On-Touch Control		LED Digital Display / On-Touch Control		LED Digital Display / On-Touch Control
Vibration Style	Orbital		Reciprocating		Orbital/Reciprocating		Orbital/Reciprocating		Orbital/Reciprocating
Speed Range (rpm)	10 - 250		10 - 250		10 - 300		10 - 300		10 - 300
Speed Accuracy (rpm)	±2 (at 100rpm)		±2 (at 100rpm)		±1rpm		±1rpm		±1rpm
Amplitude of Vibration ( mm)	20 (10 to 400rpm/14mm；10 to 500rpm/8mm Available)		20 (10 to 400rpm/14mm；10 to 500rpm/8mm Available)		30 (Standard); 20, 40 (Optional)		30 (Standard); 20, 40 (Optional)		30 (Standard); 20, 40 (Optional)
Speed Adjustment Steps (rpm)	± 1		± 1		± 1		± 1		± 1
Maximum Timer Length (min)	Delay On / Off Time : 1min to 999hr 59min Forward & Backward, Pause : 10sec to 59min 59 sec		Delay On / Off Time : 1min to 999hr 59min Forward & Backward, Pause : 10sec to 59min 59 sec		999 hr 59 min; Pause: Max. 99 min, Min. 1 min; Forward-and-backward: Max. 9 min 50 sec, Min. 10 sec		999 hr 59 min; Pause: Max. 99 min, Min. 1 min; Forward-and-backward: Max. 9 min 50 sec, Min. 10 sec		999 hr 59 min; Pause: Max. 99 min, Min. 1 min; Forward-and-backward: Max. 9 min 50 sec, Min. 10 sec
Material	Host: stainless steel Working Plate: Aluminium		Host: stainless steel Working Plate: Aluminium		Host: stainless steel Working Plate: Aluminium		Host: stainless steel Working Plate: Aluminium		Host: stainless steel Working Plate: Aluminium
Maximum Load (including clamps) (kg)	15		15		7.5		15		30
Motor Input / Output power (W)					45 / 10		70 / 19		140 / 38
Working Plate Dimension(W × D in mm)	320 × 260		320 × 260		350 × 350		450 × 450		755 × 481
Outside Dimension(W × D × H in mm)	355x375x140(mm)		355x375x140(mm)		410 × 490 × 160		510 × 595 × 160		820 × 610 × 152
Accessories	Carrier with Flexible Attachments , Carrier with Fixed Attachments, Carrier with Rubber Plate
Gross Weight (kg)
Shipping Weight (kg)
Shipping Dimensions (mm)
Electrical Requirements	110V/60Hz	220V/50Hz	220V/50Hz	220V/50Hz	110V/60Hz	220V/50Hz	110V/60Hz	220V/50Hz	110V/60Hz	220V/50Hz
Catalogue No.	5401505-1	5401505-2	5401510-1	5401510-2	5401515-1	5401515-2	5401520-1	5401520-2	5401525-1	5401525-2
