Home >> ProductsProducts by CategoryShakers/Incubator ShakersOrbital Shakers OS-3100, 110V/60Hz
View larger
Catalogue number : OS-3100

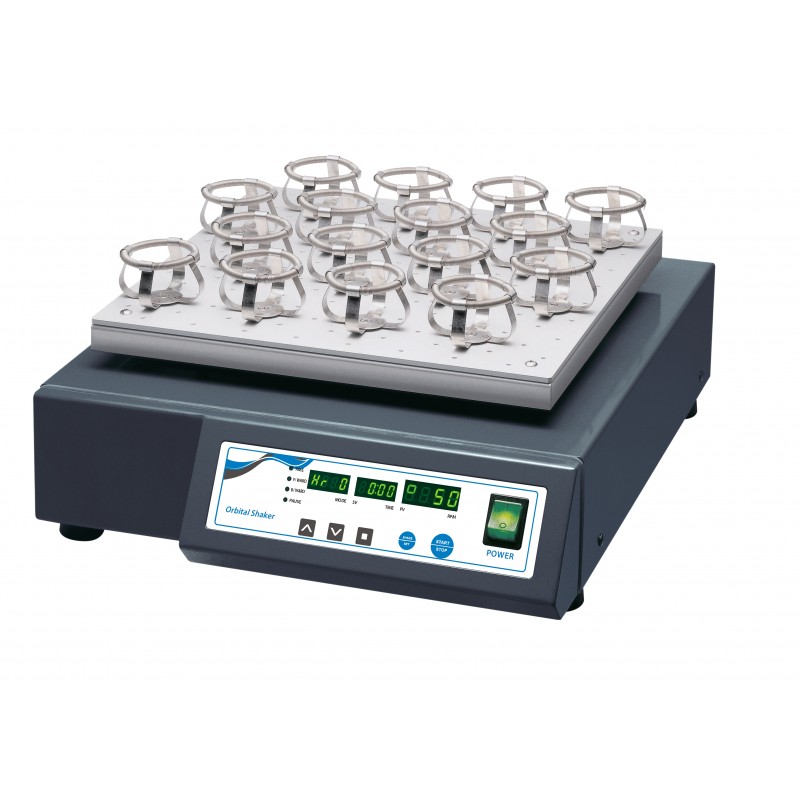

Iris orbital shakers feature a rectangular platform that moves in a circular motion to aerate samples. Additional features for all of these units include intuitive controls with a digital display, a robust construction in a compact, space-saving design and smooth running conditions with variable speeds.
- Product Information
- Features
- Specifications
- Technical Data
- Accessories
- Downloads
Reciprocating/Orbital Shaker OS-3100 provide two different shaking functions: back and forth, and orbital. Adjustable shaking speed and range. Timer function for maximum flexibility.
Iris orbital shakers feature a rectangular platform that moves in a circular motion to aerate samples. Additional features for all of these units include intuitive controls with a digital display, a robust construction in a compact, space-saving design and smooth running conditions with variable speeds. Our laboratory shakers allow for safe, efficient and easy-to-use operation while reproducing accurate, controlled speeds with every use.
- Two different shaking functions: back and forth, and orbital
- Adjustable shaking speed and range
- Timer function for maximum flexibility
- Corrosion resistant stainless steel housing
- Easy to clean and maintain
- Large mounting surface and big load capacity of up to 15 kg
- Ideal for vessels with more than 250 ml capacity, like round flasks, Erlenmeyer flasks, culture flasks, or culture bottles
- Widely used for bacterial cultures, fermentation, hybridization, biochemical reactions, enzyme or tissue research
Multi-function Shaking System:
The OS-3100 shaker's intensive multifunction shaking system surpasses all previous levels of experience! You can multi-set the shaking motions in maximum six ways of Forward/ Backward/ Pause/ Mix & match upon your various laboratory purposes.
- Two different shaking functions: back and forth, and orbital
- Adjustable shaking speed and range
- Timer function for maximum flexibility
- Corrosion resistant stainless steel housing
- Easy to clean and maintain
- Large mounting surface and big load capacity of up to 15 kg
- Ideal for vessels with more than 250 ml capacity, like round flasks, Erlenmeyer flasks, culture flasks, or culture bottles
- Widely used for bacterial cultures, fermentation, hybridization, biochemical reactions, enzyme or tissue research
| Timer | 999 hr 59 min; Pause: Max. 99 min, Min. 1 min; Forward-and-backward: Max. 9 min 50 sec, Min. 10 sec |
|
Model |
OS-3050 |
OS-3050R |
OS-3100 |
OS-3150 |
OS-3200 |
|||||
|
Display and Control |
LED Digital Display / On-Touch Control |
LED Digital Display / On-Touch Control |
LED Digital Display / On-Touch Control |
LED Digital Display / On-Touch Control |
LED Digital Display / On-Touch Control |
|||||
|
Vibration Style |
Orbital |
Reciprocating |
Orbital/Reciprocating |
Orbital/Reciprocating |
Orbital/Reciprocating |
|||||
|
Speed Range (rpm) |
10 - 250 |
10 - 250 |
10 - 300 |
10 - 300 |
10 - 300 |
|||||
|
Speed Accuracy (rpm) |
±2 (at 100rpm) |
±2 (at 100rpm) |
±1rpm |
±1rpm |
±1rpm |
|||||
|
Amplitude of Vibration ( mm) |
20 (10 to 400rpm/14mm；10 to 500rpm/8mm Available) |
20 (10 to 400rpm/14mm；10 to 500rpm/8mm Available) |
30 (Standard); 20, 40 (Optional) |
30 (Standard); 20, 40 (Optional) |
30 (Standard); 20, 40 (Optional) |
|||||
|
Speed Adjustment Steps (rpm) |
± 1 |
± 1 |
± 1 |
± 1 |
± 1 |
|||||
|
Maximum Timer Length (min) |
Delay On / Off Time : 1min to 999hr 59min
Forward & Backward, Pause : 10sec to 59min 59 sec |
Delay On / Off Time : 1min to 999hr 59min
Forward & Backward, Pause : 10sec to 59min 59 sec |
999 hr 59 min; Pause: Max. 99 min, Min. 1 min; Forward-and-backward: Max. 9 min 50 sec, Min. 10 sec |
999 hr 59 min; Pause: Max. 99 min, Min. 1 min; Forward-and-backward: Max. 9 min 50 sec, Min. 10 sec |
999 hr 59 min; Pause: Max. 99 min, Min. 1 min; Forward-and-backward: Max. 9 min 50 sec, Min. 10 sec |
|||||
|
Material |
Host: stainless steel Working Plate: Aluminium |
Host: stainless steel Working Plate: Aluminium |
Host: stainless steel Working Plate: Aluminium |
Host: stainless steel Working Plate: Aluminium |
Host: stainless steel Working Plate: Aluminium |
|||||
|
Maximum Load (including clamps) (kg) |
15 |
15 |
7.5 |
15 |
30 |
|||||
|
Motor Input / Output power (W) |
45 / 10 |
70 / 19 |
140 / 38 |
|||||||
|
Working Plate Dimension(W × D in mm) |
320 × 260 |
320 × 260 |
350 × 350 |
450 × 450 |
755 × 481 |
|||||
|
Outside Dimension(W × D × H in mm) |
355x375x140(mm) |
355x375x140(mm) |
410 × 490 × 160 |
510 × 595 × 160 |
820 × 610 × 152 |
|||||
|
Accessories |
Carrier with Flexible Attachments , Carrier with Fixed Attachments, Carrier with Rubber Plate |
|||||||||
|
Gross Weight (kg) |
||||||||||
|
Shipping Weight (kg) |
||||||||||
|
Shipping Dimensions (mm) |
||||||||||
|
Electrical Requirements |
110V/60Hz |
220V/50Hz |
220V/50Hz |
220V/50Hz |
110V/60Hz |
220V/50Hz |
110V/60Hz |
220V/50Hz |
110V/60Hz |
220V/50Hz |
|
Catalogue No. |
5401505-1 |
5401505-2 |
5401510-1 |
5401510-2 |
5401515-1 |
5401515-2 |
5401520-1 |
5401520-2 |
5401525-1 |
5401525-2 |
