Home >> ProductsProducts by CategoryShakers/Incubator ShakersBenchtop Shaking Incubator TS-1400, 220V/50Hz
View larger
Catalogue number : TS-1400

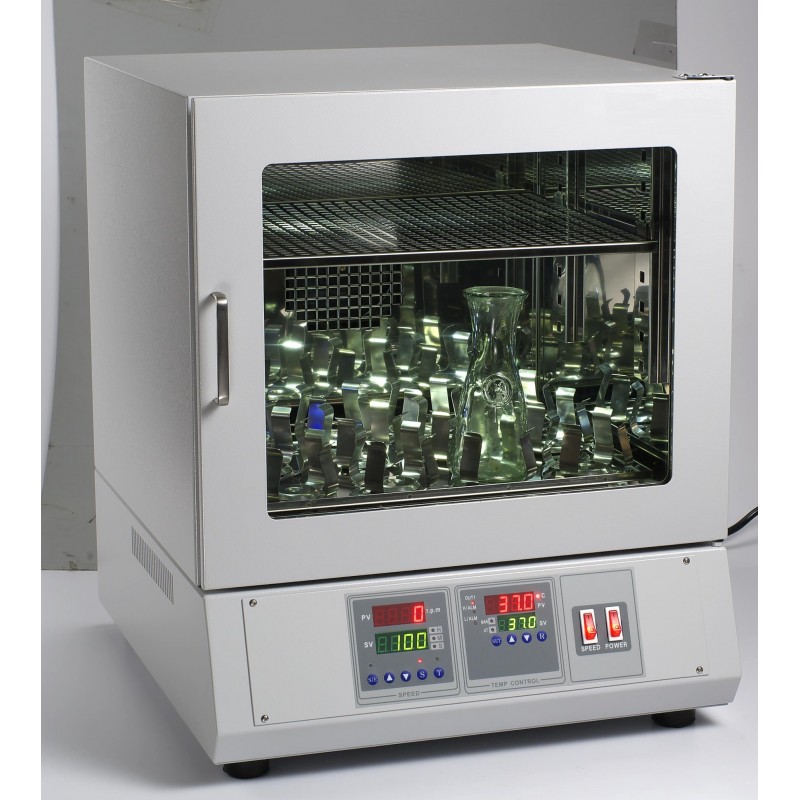

Benchtop Shaking Incubator TS-1400 is suitable for cell culturing, cell aeration, and solubility studies. In addition to offering stable temperature conditions, the Iris incubator shakers use an orbital agitation at variable speeds to affect the growth of cell cultures.
- Product Information
- Features
- Specifications
- Technical Data
- Accessories
- Downloads
Benchtop Shaking Incubator TS-1400 is suitable for cell culturing, cell aeration, and solubility studies. In addition to offering stable temperature conditions, the Iris incubator shakers use an orbital agitation at variable speeds to affect the growth of cell cultures.
The Iris TS-1400 incubator shaker is suitable for applications in modern laboratories, research centres and production facilities. It offers a large shaking capacity with a small footprint and also many features allowing straightforward, safe handling of product.
- Inside material is SUS304 and outside body is powder painting
- Install light to view inside clearly
- With safety switch to stop shaking when opening door
- Three-point bearing transmission is adopted suitable for heavy loads and continuous duty.
- Transparent glass observation window.
- Uses brushless AC motor for long durability and stable performance of the shaking system.
- Overheat protector, built-in circulating fan for temperature stability.
- Touch Screen Panel.
- Overheat and over low protector, built-in circulating fan for temperature stability.
- With safety switch to stop shaking when opening door.
- Tempered Safety Glass Window for operation view.
- Smooth and quiet shaking mechanism.
- Inside material is SUS304 and outside body is powder painting
- Install light to view inside clearly
- With safety switch to stop shaking when opening door
- Three-point bearing transmission is adopted suitable for heavy loads and continuous duty.
- Transparent glass observation window.
- Uses brushless AC motor for long durability and stable performance of the shaking system.
- Overheat protector, built-in circulating fan for temperature stability.
- Touch Screen Panel.
- Overheat and over low protector, built-in circulating fan for temperature stability.
- With safety switch to stop shaking when opening door.
- Tempered Safety Glass Window for operation view.
- Smooth and quiet shaking mechanism.
| Model | TS-1400 |
| Display and Control | LED Digital Display / On-Touch Control |
| Vibration Style | Orbital |
| Speed Adjustment Steps (rpm) | ± 1 rpm |
| Platform Size (mm) | 400 x 300 mm |
| Capacity (liters) | 66L |
| Temperature Range (℃) | Ambient +5℃ ~ 70°C |
| Temperature Accuracy (℃) | ±0.1℃ (38℃) |
| Temperature Stability (℃) | ±1.0℃ (38℃) |
| Temperature Uniformity (℃) | ±1.0℃ (38℃) |
| Temperature Fluctuation （℃） | ±1.0℃ (38℃) |
| Temperature Setting | Digital |
| Temperature Controller | Touch Control; Digital Display with PID automatic regulation |
| Temperature Display | Digital |
| Shaker Controller | Microprocessor Digital LED |
| Shaker Power Unit | Brushless motor |
| Shaking Methods | Orbital |
| Shaking Throw (mm) | 25mm |
| Shaking Width (mm) | 25mm |
| Speed Accuracy (rpm) | ±1rpm (at 150rpm) |
| Speed Fluctuation (rpm) | ±1rpm (at 150rpm) |
| Speed Setting | Digital |
| Speed Controller | Microprocessor Controlled Digital |
| Speed Display | Digital |
| Shaking Plate | 400 x 300 mm |
| Inside Dimension (WxDxH) mm | 455 x 390 x 380 mm |
| Timer | 999 h / 999 min / 999 sec |
| External Dimensions (WxDxH) mm | 510 x 650 x 540 mm |
| Net Weight (kg) | 30kg |
| Electrical Requirements | 220V/50Hz |
| Catalogue No. | 5402005-2 |
| Door Type | Flip-up Door |
|
Model |
TS-1400 |
TS-1450 |
TS-1420 |
|||
|
Door Type |
Flip-up Door |
Upright |
||||
| Temperature Range (℃) |
Ambient+5℃~70℃ |
|||||
|
Shaking Speed (rpm) |
20~250 rpm |
|||||
| Temperature Accuracy (℃) |
±0.1℃ |
|||||
| Temperature Control |
PID |
|||||
| Temperature Display |
LED |
|||||
|
Shaking Width (mm) |
25mm |
|||||
|
Timer |
999 h / 999 min / 999 sec |
|||||
|
Shaking Plate Size (mm) |
400 x 300 mm |
450 x 450 mm |
400 x 300 mm |
|||
|
Volume (liters) |
66 L |
102 L |
65 L |
|||
|
Inside Dimension (WxDxH) mm |
455 x 390 x 380 mm |
500 x 540 x 380 mm |
450 x 390 x 370 mm |
|||
|
Outside Dimension (WxDxH) mm |
460 x 510 x 540 mm |
510 x 650 x 540 mm |
520 x 550 x 610 mm |
|||
|
Net Weight (kg) |
30kg |
40kg |
50kg |
|||
|
Gross Weight (kg) |
|
|
|
|||
|
Shipping Weight (kg) |
|
|
|
|||
|
Shipping Dimensions (mm) |
|
|
|
|||
|
Electrical Requirements |
110V/60Hz |
220V/50Hz |
110V/60Hz |
220V/50Hz |
110V/60Hz |
220V/50Hz |
|
Catalogue No. |
54020051 |
54020052 |
54020101 |
54020102 |
54020151 |
54020152 |
| Model | Image | Name | Product Detail | Availability | Price | Action |
| 54010A01 |
|
Stainless steel clamp for 50ml Erlenmeyer flask |
Stainless steel clamp for 50ml Erlenmeyer flask |
$14.00 | ||
| 54010A02 |
|
Stainless steel clamp for 125ml Erlenmeyer flask |
Stainless steel clamp for 125ml Erlenmeyer flask |
$14.00 | ||
| 54010A03 |
|
Stainless steel clamp for 250ml Erlenmeyer flask |
Stainless steel clamp for 250ml Erlenmeyer flask |
$18.00 | ||
| 54010A04 |
|
Stainless steel clamp for 500ml Erlenmeyer flask |
Stainless steel clamp for 500ml Erlenmeyer flask |
$18.00 | ||
| 54010A05 |
|
Stainless steel clamp for 1000ml Erlenmeyer flask |
Stainless steel clamp for 1000ml Erlenmeyer flask |
$36.00 | ||
| 54010A06 |
|
Stainless steel clamp for 2000ml Erlenmeyer flask |
Stainless steel clamp for 2000ml Erlenmeyer flask |
$36.00 | ||
| 54010A07 |
|
Stainless steel clamp for 3000ml Erlenmeyer flask |
Stainless steel clamp for 3000ml Erlenmeyer flask |
$36.00 | ||
| 54010A08 |
|
Stainless steel clamp for 4000ml Erlenmeyer flask |
Stainless steel clamp for 4000ml Erlenmeyer flask |
$58.00 | ||
| 54010A09 |
|
Stainless steel clamp for 5000ml Erlenmeyer flask |
Stainless steel clamp for 5000ml Erlenmeyer flask |
$58.00 | ||
| 54012A01 |
|
Shaker Platform with clamps 280x230mm |
Platform with clamps 280mm x 230mm, suitable for waterbath shakers and all other type of shakers |
$214.00 | ||
| 54012A04 |
|
Shaker Platform with clamps 380x280mm |
Platform with clamps 380mm x 280mm, suitable for TS-1420 benchtop shaking incubator |
$286.00 | ||
| 54012A05 |
|
Shaker Platform with clamps 380x280mm |
Platform with clamps 380mm x 280mm, suitable for TS-1420 benchtop shaking incubator |
$286.00 | ||
| 54013A01 |
|
Test Tube Rack 210mm x 90mm |
Test Tube Rack 210mm x 90mm with holes ∅ 30mm and ∅ 16mm |
$250.00 | ||
| 54013A02 |
|
Test Tube Rack 340mm x 90mm with holes ∅ 16mm |
Test Tube Rack 340mm x 90mm with holes ∅ 16mm |
$178.00 | ||
| 54014A01 |
|
Non-Slip Mat |
Non-Slip Mat |
|
||
| 54014A02 |
|
Non-Slip Mat for 96 well plate |
Non-Slip Mat for 96 well plate |
|
