Catalogue number : 5803501002

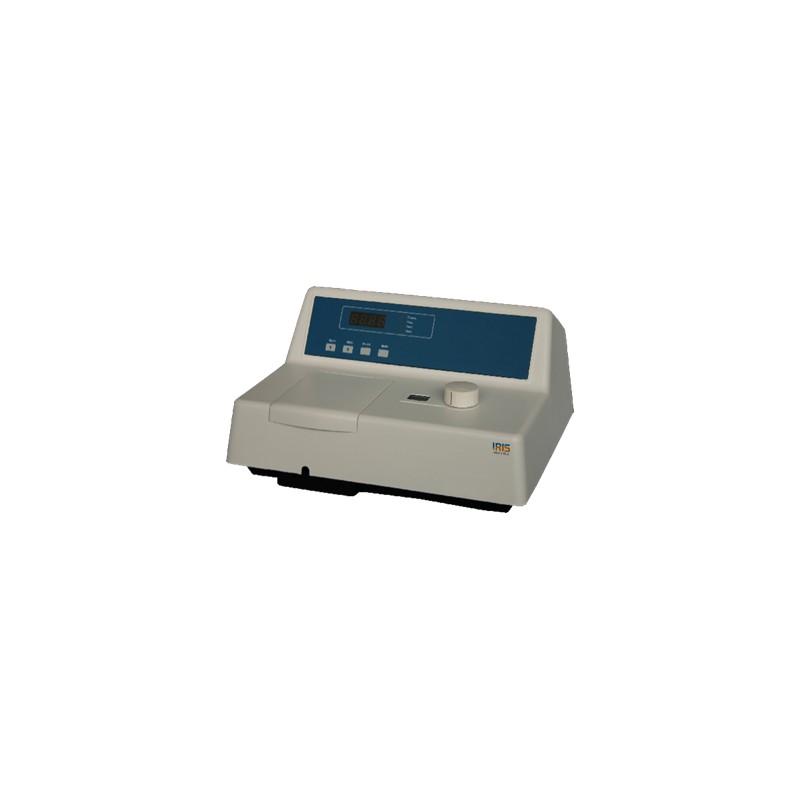

Fluorescence Spectrophotometer IFS-1093A is equipped with high quality xenon source and photoelectric detectors to provide sufficient light intensity signal and the detection sensitivity.
Fluorescence Spectrophotometer IFS-1093A is equipped with high quality xenon source and photoelectric detectors to provide sufficient light intensity signal and the detection sensitivity.
Operates in variable wavelength range: 200, 365,405,470,515, 650, and 900 nm with ±1 nm and ±2 nm accuracy and 0.5 to 1 nm wavelength reproducibility. Suitable in the field of bioscience, industrial, chemical, environmental, pharmaceutical, agricultural, and academic applications. Multi accessories available.
It is a horizontal beams spectrophotometer measure a trace amount of sample,CE certified and offer robustness, reliability and sensitivity with 365 nm and C-T diffraction grating. Suitable for education & laboratory, organic & inorganic chemistry.
Accessories
Optional Accessories
|
Model |
IFS-1093 |
IFS-1093A |
IFS-1096 |
IFS-1096A |
|||||
|
Wavelength range |
365 nm |
365,405,470,515 nm |
200 to 650 nm |
Excitation: 365 nm, Emission: 200 to 900 nm |
|||||
|
Display |
LED |
||||||||
|
Accuracy |
±2 nm |
± 1 nm |
|||||||
|
Reproducibility |
≤1 nm |
≤ 0.5 nm |
|||||||
|
Source |
LED |
150 W Xenon lamp |
|||||||
|
Monochromatic |
360 to 650 nm (C-T diffraction grating) |
C-T grating Emission: 200 to 650 nm, Bandwidth: 10 nm |
|||||||
|
Spectral Bandwidth |
10 nm |
||||||||
|
Slit |
- |
Excitation: 10 nm, Emission: 10 nm |
|||||||
|
Sensitivity |
1×10-9 g/ml |
- |
|||||||
|
Limit |
- |
||||||||
|
Linearity |
≤±3.0% |
≥0.995 |
γ≥0.995 |
||||||
|
Photometric Range |
- |
-9999 to 9999 |
|||||||
|
S/N ratio |
- |
S/N≥90 |
S/N≥150(P-P) |
||||||
|
Upper Limit Value |
- |
≤1.5% (Within 10 minutes) (displaying value≥50) |
|||||||
|
Detection limit |
- |
1 × 10-10 g / ml quinine sulfate solution |
|||||||
|
Exciting optical filters |
Interference optical filter (10 nm bandwidth) |
|
|
||||||
|
Certification |
CE |
||||||||
|
Interface |
RS232 |
USB2.0 |
|||||||
|
Power Consumption |
- |
200 W |
|||||||
|
Dimension |
450×420×280 mm |
550×510×365 mm |
|||||||
|
Net Weight |
7 kg |
11 kg |
|||||||
|
Gross Weight |
9 kg |
13 kg |
|||||||
|
Electrical Requirement |
220V±22V 50Hz±1Hz |
110V/60Hz |
220V±22V 50Hz±1Hz |
110V/60Hz |
220V±22V 50Hz±1Hz |
110V/60Hz |
220V±22V 50Hz±1Hz |
110V/60Hz |
|
|
Catalogue No. |
5803500502 |
5803500501 |
5803501002 |
5803501001 |
5803501502 |
5803501501 |
5803502002 |
5803502001 |
|
