Catalogue number : 620250503

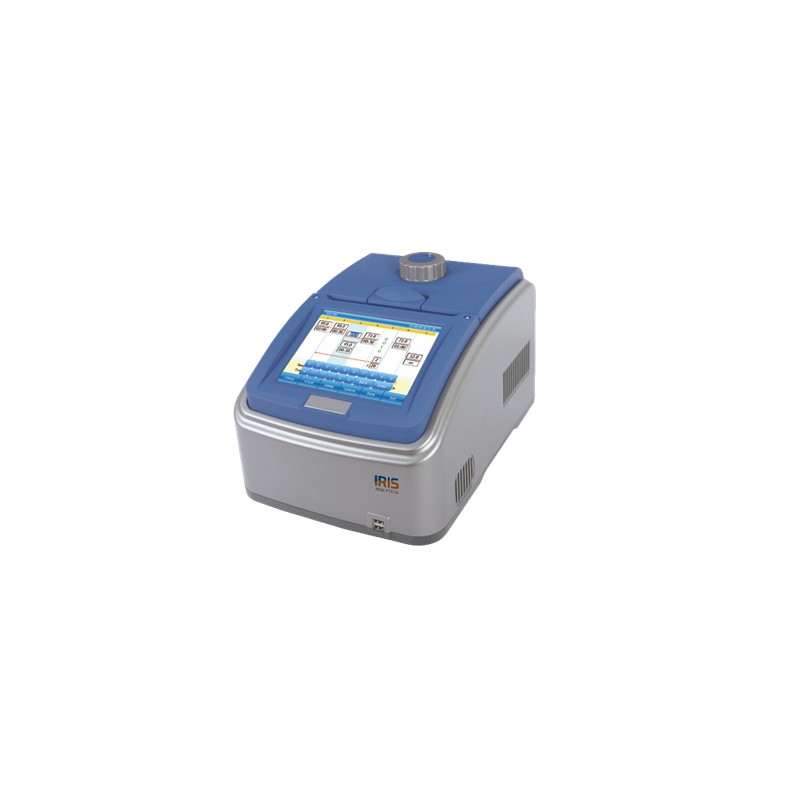

Gradient Thermal Cyclers ITCG-3000 has been used in PCR applications in research and development, food science, pharmaceuticals, life science, animal diagnostics, and analytical laboratories.
Gradient Thermal Cyclers ITCG-3000 has been used in PCR applications in research and development, food science, pharmaceuticals, life science, animal diagnostics, and analytical laboratories. Features with Peltier heating units, control 6 temperature zones with vibrant touch LCD display along with holding capacity up to 96×0.2ml (6 independent 16 well blocks) and maximum ramping rate 6℃/s and advanced technologies with WINCE system.
|
Model |
ITCG-3000 |
|
Capacity |
96×0.2 ml (6 independent 16 well block) |
|
Display |
LCD, 8 inch, 800×600 Pixels, TFT |
|
Temperature Range |
4 to 100℃ |
|
Number of Program |
10000 +(USB FLASH) |
|
Uniformity |
≤± 0.3℃ |
|
Accuracy |
≤± 0.2℃ |
|
Resolution |
0.1℃ |
|
Number of Cycle |
100 |
|
Number of Step |
30 |
|
Holding Temperature |
4℃ |
|
Temperature Control |
BlockTube |
|
Heating Rate |
6℃/s |
|
Cooling Rate |
4℃/s |
|
Ramping Rate Adjustable |
0.1 to 6℃ |
|
Gradient Temp. Range |
30 to 100℃ |
|
Gradient Spread |
Temperature difference of adjacent temperature zone: 0.1 to 5°C, 6- Temperature zones |
|
Hot Lid Height Adjustable |
Step less Adjustable |
|
Hot Lid Temperature |
30 to 110℃ |
|
Connectivity |
USB 2.0 , LAN |
|
Increase/Decrease in Temperature |
0.1 to 10°C |
|
Increase/Decrease in Time |
1 to 600 seconds |
|
Power consumption |
600 W |
|
Dimension |
390×270×255 mm |
|
Weight |
9 kg |
|
Electrical Requirements |
AC85 to 264 V/47Hz, 63 Hz |
|
Catalogue No. |
620250503 |
