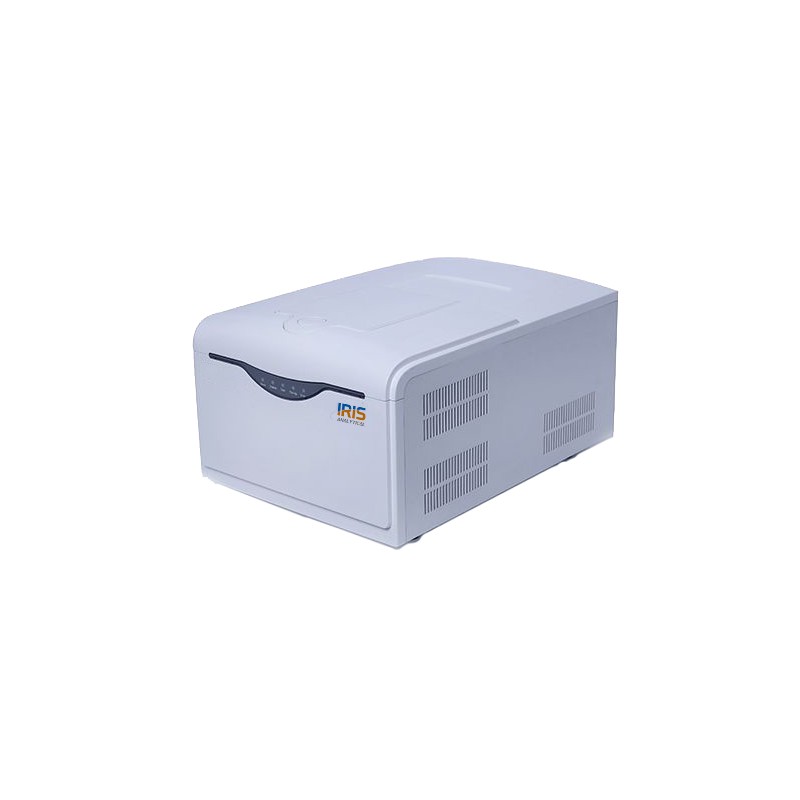

Real-Time PCR System 5 Channel ITR-5000
Real-Time PCR System 5 Channel ITR-5000

Catalogue number : 6206505-00

Real-Time PCR System 5 Channel ITR-5000 based on real-time fluorescence quantitative polymerase chain reaction (PCR) technology.


Availability : 3-4 Weeks

Availability : Availability : 3-4 Weeks

  • Product Information
  • Features
  • Technical Data
  • Downloads

Real-Time PCR System 5 Channel ITR-5000 based on real-time fluorescence quantitative polymerase chain reaction (PCR) technology, ITR-5000 can be widely used in researches such as immunology, human genome engineering, forensic medicine, oncology, histology, population biology, palaeobiology, zoology and botany, as well as in clinical diagnosis of viruses, tumours and hereditary diseases, etc.

With specially designed optical structure, ITR-5000 can cover a variety of fluorochromes in market and adapt to new ones by replacement of software versions rather than changes of hardware. 5 channels of fluorescence detection for your free choice, such as FAM, SYBR Green I/VIC, HEX, JOE, TET/ROX, Texas Red/Cy5/Cy5.5, Quasar 705. What's more, there are another 3 channels reserved for your special customization.

  • Rapid detection and high sensitivity

  • 6 independent temperature control, simultaneous achievement of different renaturation temperatures

  • Combination of halogen lamp and CCD optical detection system with high accuracy

  • Cutting-edge optical fibre and imaging analysis, multi-calibration

  • Built-in database, applicable to LIS system

Model

ITR-5000

Sample Capacity

96x0.2ml

Light Source

Halogen lamp

Detection System

CCD

Temperature Range

4-100

Sensitivity

up to 1 copy

Test Dynamic Range

100-1010

Reaction Volume

5-100μl



Fluorophores Applicable



F1FAMSYBR   F2VICHEXJOETET

F3ROXTexas Red  F4CY5  F5CY5.5, Quasar705

F6-F8Reserved

Hot Lid

Electronic hot-lid

Temp. Control

Semiconductor TE

Uniformity

±0.2

Accuracy

±0.1

Heating Rate

≥4.5/s

Cooling Rate

≥4.5/s

Hot-lid Temp. Range

30-105

Fluorescence Repeatibility

CV ≤ 1%

Fluorescence Extraction Location

Tube Bottom

Communication Interface

USB 2.0

Operation System

Windows Vista/7/8/10

Input Power

100-240V, 50/60Hz, 1000VA

Dimension (L*W*H)

500x350x300mm

Catalogue No.

6206505-00
