Catalogue number : 7102045-04

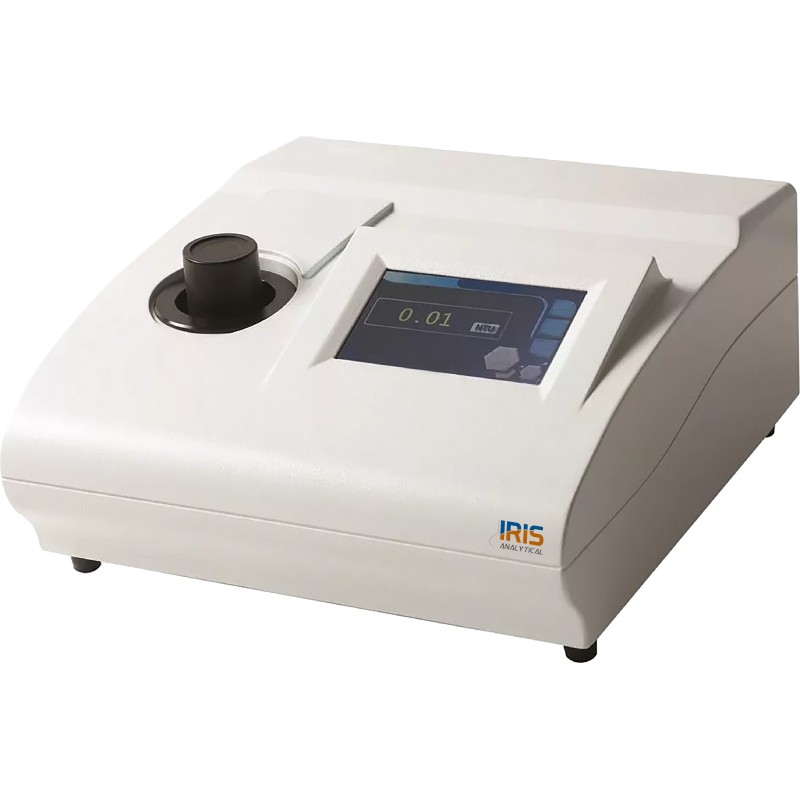

Bench-Top Turbidity Meter BTM-106 is used to measure light scatter and decay of insoluble particles suspended in water or transparent liquids.
Bench-Top Turbidity Meter BTM-106 is used to measure light scatter and decay of insoluble particles suspended in water or transparent liquids.
Equipped with tactile LCD touch display and Silicon photocell detector. Depending on the measured sample and needed accuracy, normal, continuous, or signal averaging measurement can be selected. Applicable for quantitative analysis of particle contents.
This instrument allows you to take measurements on-site instead of bringing solutions back to the laboratory for analysis. The instrument is designed to meet CE and USEPA-180.1 requirement and measures up to 0.00 to 20.00 50.1 to 200 and 200 to 500 NTU with 0.5% repeatability.
|
Model |
BTM-104 |
BTM-105 |
BTM-106 |
BTM-107 |
|
Sample Capacity |
30 to 40 ml |
|||
|
Source |
Tungsten halogen lamp |
|||
|
Display |
LCD |
|||
|
calibration |
4 points |
5 points |
6 points |
7 points |
|
NTU Range |
0.00 to 50.0, 50.1 to 200, 200.1 to 500
|
0.00 to 50.0, 50.1 to 200, 200.1 to 1000 |
0.00 to 50.0, 50.1 to 200, 200.1 to 2000 |
0.00 to 50.0, 50.1 to 200, 200.1 to 4000 |
|
Detector |
Silicon photocell |
|||
|
0-Drift |
≤±0.3% FS |
|||
|
Stability |
≤±1% FS |
|||
|
Repeatability |
≤0.5% |
|||
|
Certification |
CE |
|||
|
Interface |
USB/Memory Disk |
|||
|
Certification |
CE |
|||
|
Storage |
1000 sets |
|||
|
Dimension |
430×430×300 mm |
|||
|
Weight |
9 Kg |
|||
|
Catalogue No. |
7102035-04 |
7102040-04 |
7102045-04 |
7102050-04 |
