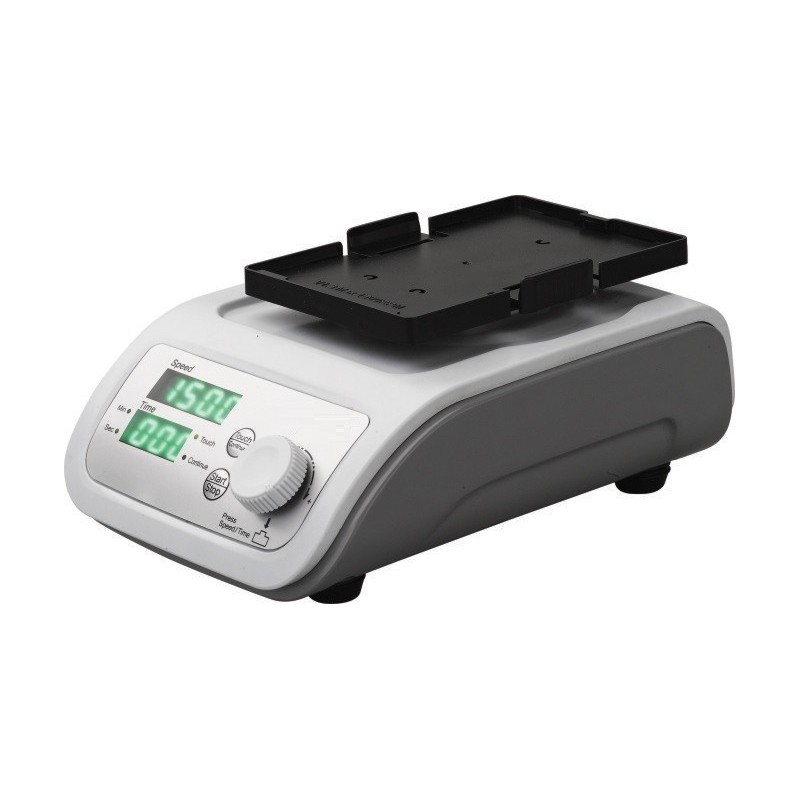

Iris Vortex Mixer is high speed oscillator, suitable for tubes, centrifuge tubes and ELISA plate oscillation.
Iris Vortex Mixer is high speed oscillator, suitable for tubes, centrifuge tubes and ELISA plate oscillation.
| Model | ||
| Oscillation Mode | circumferential | circumferential |
| Turnaround diameter | 4.5mm | 4.5mm |
| Speed range | 200-3000rpm/min,stepless speed regulating | 200-3000rpm/min,stepless speed regulating |
| Voltage | 100~240V | 100~240V |
| Maximum Load | 1.0kg | 1.0kg |
| maximum Load | All the fixture will be distinguished automatic, speed limit automatic , security and reliable, easy for operation | All the fixture will be distinguished automatic, speed limit automatic , security and reliable, easy for operation |
| Timer | 1s-999min | 1s-999min |
| Timer Function | Timing function,also can be countdown and digital showing | Timing function,also can be countdown and digital showing |
| Speed setting and showing | Simulation setting and digital time showing | 0-3000rpm,Real-time digital showing for Speed and time |
| Driving | induction and variable frequency motor (without beltwork) | induction and variable frequency motor (without beltwork) |
| Motor input power | 20W | 20W |
| Motor output power | 15W | 15W |
| Operator schema | inching feature and conscutive operation | inching feature and conscutive operation |
| Overall dimension (WxDxH) mm | 210×150×69 | 210×150×69 |
| Net Weight | 4kg | 4kg |
| Protection class | IP 21 | IP 21 |
| Standard configuration | V1.1 / Standard gasket | V1.1 / Standard gasket |
| Adaptive fixture | Standard gasket,ELISA plate fixture,univeral fixture (flask,tube,Centrifuge tube) | Standard gasket,ELISA plate fixture,univeral fixture (flask,tube,Centrifuge tube) |
| Gross Weight (kg) | ||
| Shipping Weight (kg) | ||
| Shipping Dimensions (mm) | ||
| Electrical Requirements | 100~240V | 100~240V |
| Catalogue No. |
