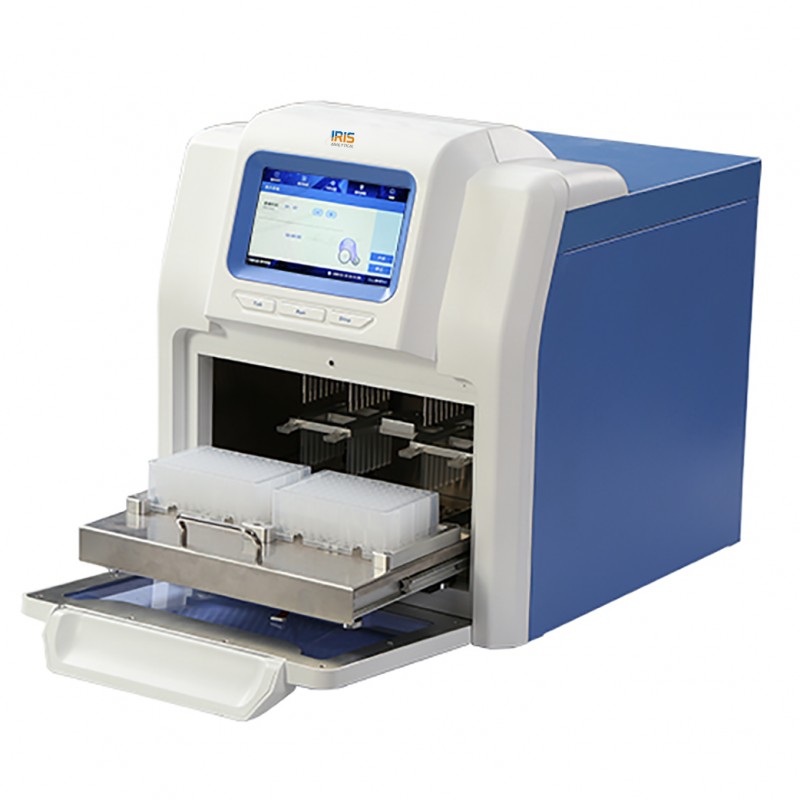

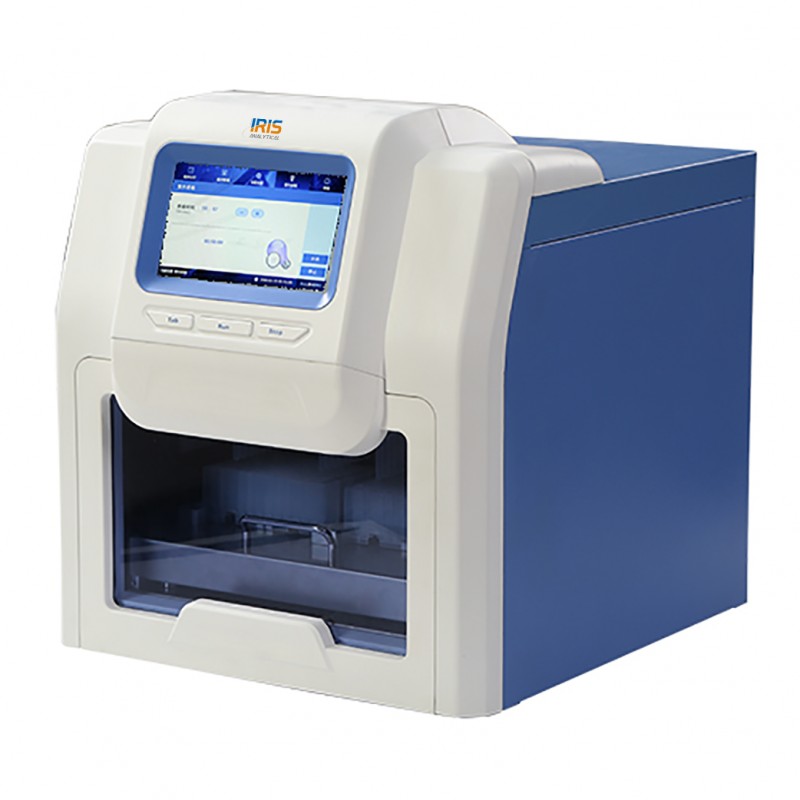

PureNucleic-Xtract32

Catalogue number : 1102005-04

The PureNucleic-Xtract32 is designed to accomplish low throughput using magnetic beads technology for more reliable and convenient results. The intuitive plastic consumables are used to avoid cross-contamination and ensure maximum sterilization during processing. Integrated with UV lamp, drawer, and alarm allowing maximum safety and protection, avoid contamination.

$17,550.00 tax excl.


Availability : 3-4 Weeks

Availability : Availability : 3-4 Weeks

  • Product Information
  • Features
  • Technical Data
  • Downloads

The PureNucleic-Xtract32 is designed to accomplish low throughput using magnetic beads technology for more reliable and convenient results. The intuitive plastic consumables are used to avoid cross-contamination and ensure maximum sterilization during processing. Integrated with UV lamp, drawer, and alarm allowing maximum safety and protection, avoid contamination.

Intelligent & sophisticated designed make for easy and convenient handling. Suitable for blood, cultured cells or bacteria, tissues, cell-free body fluids, and plant sample application that achieve purification, binding, mixing, washing, and elution, providing a complete solution with minimum time and increase extraction efficiency.

The integrated unit permits the elution volume to be set from 1 to 20 samples or 1 to 32 samples every run and transferred automatically with zero error. Designed with configurations with different sample extraction and process samples up to 1 ml, and this can be freely selected to meet a variety of work essentials.

  • Built-in universal program
  • Capable of extracting 1 to 20 samples or 1 to 32 samples/run, and process samples up to 1 ml, 3 ml and 5 ml
  • Magnetic rod tip, 7 tubes, 9 tubes and 96 deep well plate consumables
  • UV lamp to avoid cross contamination
  • Integrated design with great throughput, rapid extraction
  • Instrument design with front door bottom opening features
  • Purify nucleic acids of highest yield and purity

Model

Xtract32

Xtract20-3

Xtract20-5

Volume

50 to 1000ul

50 to 3000ul

50 to 5000ul

Throughput

1 to 32

1 to 20

1 to 20

Plate types

96 Deep well plate

3 ml tube strip

5 ml tube strip

Purification accuracy

100 copy sample positive rate>95%

Collection efficiency

>95%

Stability

CV<5%

Heating for lysis tube

RT ~120°C

Heating for elution tube

RT ~120°C

Display

7 inch color touch screen

Extraction steps

Lysis, sample binding, washing and elution

Storage Capacity

>100 programs

Light

UV light

Exhaust

Fan

Interface

4 standard USB port, built-in SD card

Power Consumption

450 W

Dimension

400×470×450 mm

400×520×450 mm

400×520×450 mm

Weight

25 Kg

28 Kg

28 Kg

Catalogue No.

 1102005-04

 1102010-04

 1102015-04
