The IX-1000 Series Touch Screen Heating Incubator is especially designed to conduct shelf life studies, life cycle testing and bacterial incubation in biological, agricultural and scientific research laboratories. Highly accurate and sensitive touch screen PID controller offers peace of mind for safe operation with the option of programmable periods of operation and temperature change.

The Iris IX-1040 Touch Screen Heating Incubator provides an optimal environmental for growing and storing bacteria, microorganisms, cells, tissue, paraffin, media and various other samples used in cultivation of microorganisms industries, healthcare, biotechnology, agriculture, molecular biology labs.

The IX-1040 Touch Screen Heating Incubator ensures the viability of your research by providing long-term accurate temperature control over an extended temperature range of life cycle analysis, shelf life test and biological cultivation with optimum performance and improved temperature uniformity and stability.

The advanced cavity preheat technology ensures the heating elements evenly distributed around the tank, the pre-heating of the cavity inner wall, and then through the heat transfer and forced-fan convection, so that the cavity temperature of every point can be accurately achieve and maintain settings, thus ensuring uniform distribution of cavity temperature.

Advanced Cavity Warm-up Technology

The advanced cavity preheat technology provides evenly distributed heating elements around the chamber, the pre-heating of the cavity inner wall, through the heat transfer and forced-fan convection to achieve accurate cavity temperature at every point. Because uniform distribution of heat, The IX-1000 series incubator offers low energy consumption, and enables customers to have cost reduction.

Advanced Perfect Air Current Cycling

The advanced air current cycling: perfect forced convection, maximum samples number of working room, minimum temperature recovery time after the opening, world famous axial fan, perfect air current design, ensure an ideal result of samples culture. Advanced air current cycling keep temperature continuous and stable, the wind speed can be adjusted, with fan switch function, ensure perfect sample culture environment.

Programmable PID control

• Designed for the highest operational comfort.
• Integrated with dot-matrix LCD display parameters for temperature, humidity, and cycle, run time, run/stop.
• Adaptive PID controller precisely controls the temperature and humidity; prevent temperature soaring, keep working room temperature stable and uniformity.
• User password protection, built-in multifunctional memory menu, connects to multiple devices (up to 16 units) for real-time monitoring.
• Time setting:0-99h,  0-9999min
• RS-485 interface
• Easy to operate. All set operations are recognised by voice prompts.
• Optional remote control of programmable software.

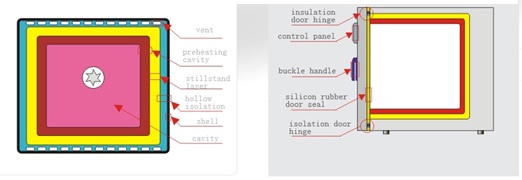

Advanced Isolation Insulation Technology

• Based on the effective use of heat as a concept, use complete isolation design between the liner and shell to avoid energy loss due to heat transfer.
• High-density thermal insulation material wrapped liner, Based on the effective use of heat as a concept, use complete isolation design between the liner and shell to avoid energy loss due to heat transfer.
• Silicone door seal, isolation type hinge design, with the door handles, belt fastening to ensure tightness.

Excellent Industrial Grade Sensor

Industrial grade sensor PT100 offers short response time and low self-heating temperature.

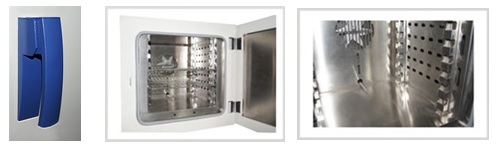

Ergonomic design

• Laboratory of classical color design, international fashion design, arc-shaped design, for highest operational comfort.
• Integrated design that contains original outside handle and LCD screen, ergonomic structure, comfortable viewing angle, convenient to open the outside door and operate interface.
• Interval and number of mesh shelf can be adjusted according to customer requirements. Maximum capacity to meet customer needs.
• Comfortable vertical structure, maximize work chamber, working room in the upper, convenient to take.
• Double door design, easy observation of samples, improved temperature stability, with bell-type lighting system.

Modern manufacturing processes

Sheet metal parts use laser cutting and CNC bending technology. Cold-rolled sheets use three line of acidification anti-rust technology. Incubator surface use workmanship of spraying plastics.

Easy to clean

• Internal surface is smooth and less weld, easy cleaning and maintenance.
• Pull multilayer shelf design, less metal accessories, easy to clean.

Convenient maintenance

• Liquid crystal micro-computer controller with diagnostic function.
• Display operating parameters including historical record, temperature and humidity data.
• Electrical control components and working room are installed separately. Installed behind incubator for easy maintenance.

Secure and efficient protection concept

• Multiple over temperature protection function, sound and light alarm.
• Automatic double over temperature protection function.
• All electronic components are UL certified.
• All over temperature protection devices meet Germany standard DIN standard D12880 Class 3.1.

Certifications

CE certification. IQ, OQ, PQ and other related certification services.

Warranty

Two-year warranty.
