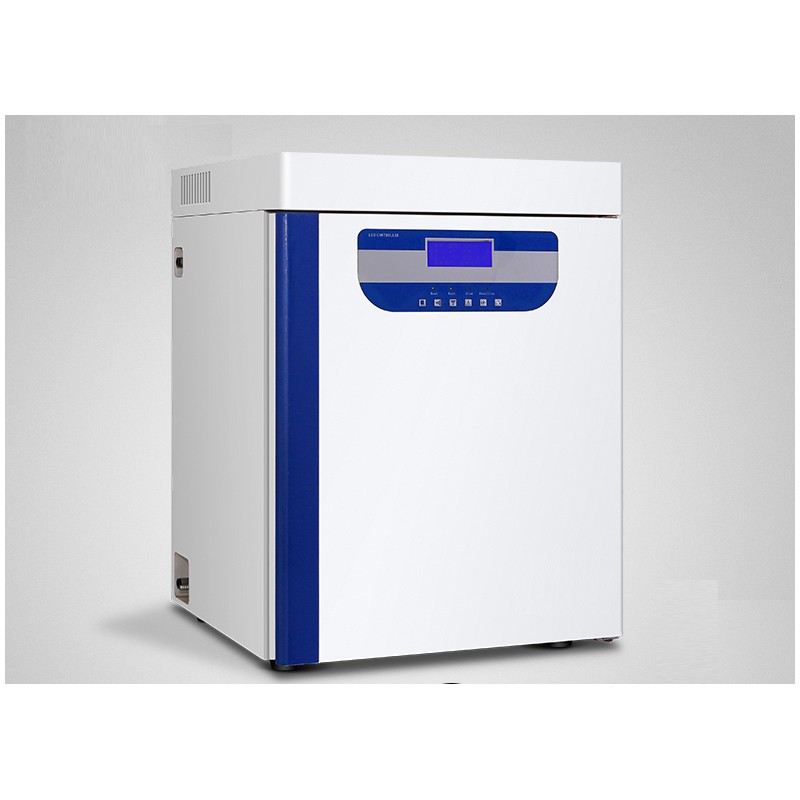

The Iris CO2 incubator provides you with unsurpassed natural simulation to ensure optimum growth conditions for your culture at all time. That's why they become the first choice of researchers in fields of application include tissue engineering, in vitro fertilization, neuroscience, cancer research, cell culture, microbiology, pathology academic, life science and other mammalian cell research.

Cell cultivation in particular is a highly sensitive process in which bacteria, viruses, fungal spores and mycoplasmas can destroy valuable cultures or distort test results, causing more work. Heal Force solves this problem using a unique design and effective method to ensure sterile conditions.

• Used in cell culture, microbiology, pathology academic, life science fields;
• series CO₂ Incubator succeeded in creating a natural growth of the same simulation environment, Advanced Chamber heating technology to provide a stable temperature, the professional-grade IR CO₂ sensor, more accurately detect CO₂ concentration;
• Equipped with UV sterilization lamp, effectively prevent the cultivation of cross-contamination;
• IQ、OQ、PQ and other related certification services.
• Australian AS2064 certification. CE certification.
• Two-year warranty period.

AdvancedChamber preheating technology

• Advanced Chamber preheating technology is the heating element is evenly distributed in the interior pre-heating of the cavity inner wall, and then through the heat transfer and forced-fan convection, so that the temperature of each cavity can accurately reach and maintain the set value, thus ensuring uniform distribution of the cavity temperature.
• Chamber of six surface heating, in which the glass door to possession of the heating system to prevent condensation of glass doors.
• Advanced CO₂ Incubator with low energy consumption and heat characteristics not easily lost. Save energy, enabling customers to use the cost reduction.

Advanced Clean Air Circulation System

• Perfect forced convection of air circulation system to ensure the shortest of temperature recovery after door. With internationally renowned brands with a cooling fan (maintenance, durability), the experimental and the training effect to the extent desired;
• Advanced air circulation system sufficiently to ensure the continuous stability of the temperature of the working chamber. Customer set temperature is reached, given the perfect environment for sample roasting / culture;
• CO2 inlet valve with a filter device to ensure cleanliness of the cavity gas;
• Equipped with UV sterilization system in the chamber regular basis to eliminate the cavity contaminating microorganisms, effectively prevent the training during the cross-contamination.
• Clean Air Circulation System

Programmable PID control

• Designed for the highest operational comfort.
• Integrated with dot-matrix LCD display parameters for temperature, humidity, and cycle, run time, run/stop.
• Adaptive PID controller precisely controls the temperature and humidity; prevent temperature soaring, keep working room temperature stable and uniformity.
• User password protection, built-in multifunctional memory menu, connects to multiple devices (up to 16 units) for real-time monitoring.
• Time setting:0-99h,  0-9999min
• RS-485 interface
• Easy to operate. All set operations are recognised by voice prompts.
• Optional remote control of programmable software.
• Programmable multi-sections control, to meet customer needs, temperature and humidity control up to 30 sets. Time setting:0-99h, 0-9999m, programs can be executed automatically cycles.
• Set operations with beep tips
• Bacteria-free culture with UV disinfection (Optional)

Inside Water Pan Humidification Technology

• The original water pan liner integrated humidifier design, that the water quickly atomized
• Soft air with water vapor of the water pan out the cavity humidity up and recovery, to ensure that the culture needed to saturated water.

Advanced Isolation Insulation Technology

• Inner isolation gate design, take full account of customers in the observation of cavity samples, ensure the consistency of the cavity temperature.
• Based on the effective use of heat design, complete isolation between the liner and shell to avoid energy loss due to heat transfer.
• Imports high-density thermal insulation material wrapped liner, insulation well.
• Good silicone door seal, with the magnet outside the door design, ensure tightness.

Modern manufacturing processes

Sheet metal parts use laser cutting and CNC bending technology. Cold-rolled sheets use three line of acidification anti-rust technology. Incubator surface use workmanship of spraying plastics. The Inner chamber is made of SUS304 stainless steel materials.

Excellent Industrial Grade Sensor

• Industrial grade sensor PT100, short response time, low self-heating temperature.
• Humidity sensor, aerospace material, no maintenance, precision humidity control level.
• IR CO2 concentration sensor with automatic temperature compensation allows high humidity (＞ 98%) long-term use of the environment, high accuracy, low drift, and the CO2 concentration can be fast recovery characteristics.

Ergonomic design

• Laboratory of classical color design, international fashion design, arc-shaped design, for highest operational comfort.
• Integrated design that contains original outside handle and LCD screen, ergonomic structure, comfortable viewing angle, convenient to open the outside door and operate interface.
• Interval and number of mesh shelf can be adjusted according to customer requirements. Maximum capacity to meet customer needs.
• Vertical cabinet classic design of structural, electrical components located in the upper cabinet to facilitate maintenance;
• Comfortable vertical structure, maximize work chamber, working room in the upper, convenient to take.
• Double door design, easy observation samples, keep temperature stability, with bell-type lighting system.
• With a test hole in the inner door, easy to test.

Easy to clean

• Internal surface is smooth and less weld , easy cleaning and maintenance.
• Pull multilayer shelf design, less metal accessories, easy to clean.
• Drainage design of chamber humidification collecting tank. User can discharge water as required to avoid bacteria.
• Water pan drainage design, the user may need to open the valve, put the best water to avoid bacteria.

Convenient maintenance

• Liquid crystal micro-computer controller with diagnostic function. Display operating parameters including historical record, temperature and humidity data.
• Electrical control components and working room are installed separately. Especially refrigerating battery and electrical control output parts, which are installed in incubator bottom, easy to maintenance.

Secure and efficient protection concept

• Multiple over temperature protection function, sound and light alarm.
• Automatic double over temperature protection function.
• All electronic components are UL certified.
• All over temperature protection devices meet Germany standard DIN standard D12880 Class 3.1.

Certifications

CE certification. IQ, OQ, PQ and other related certification services.

Warranty

Two-year warranty.
